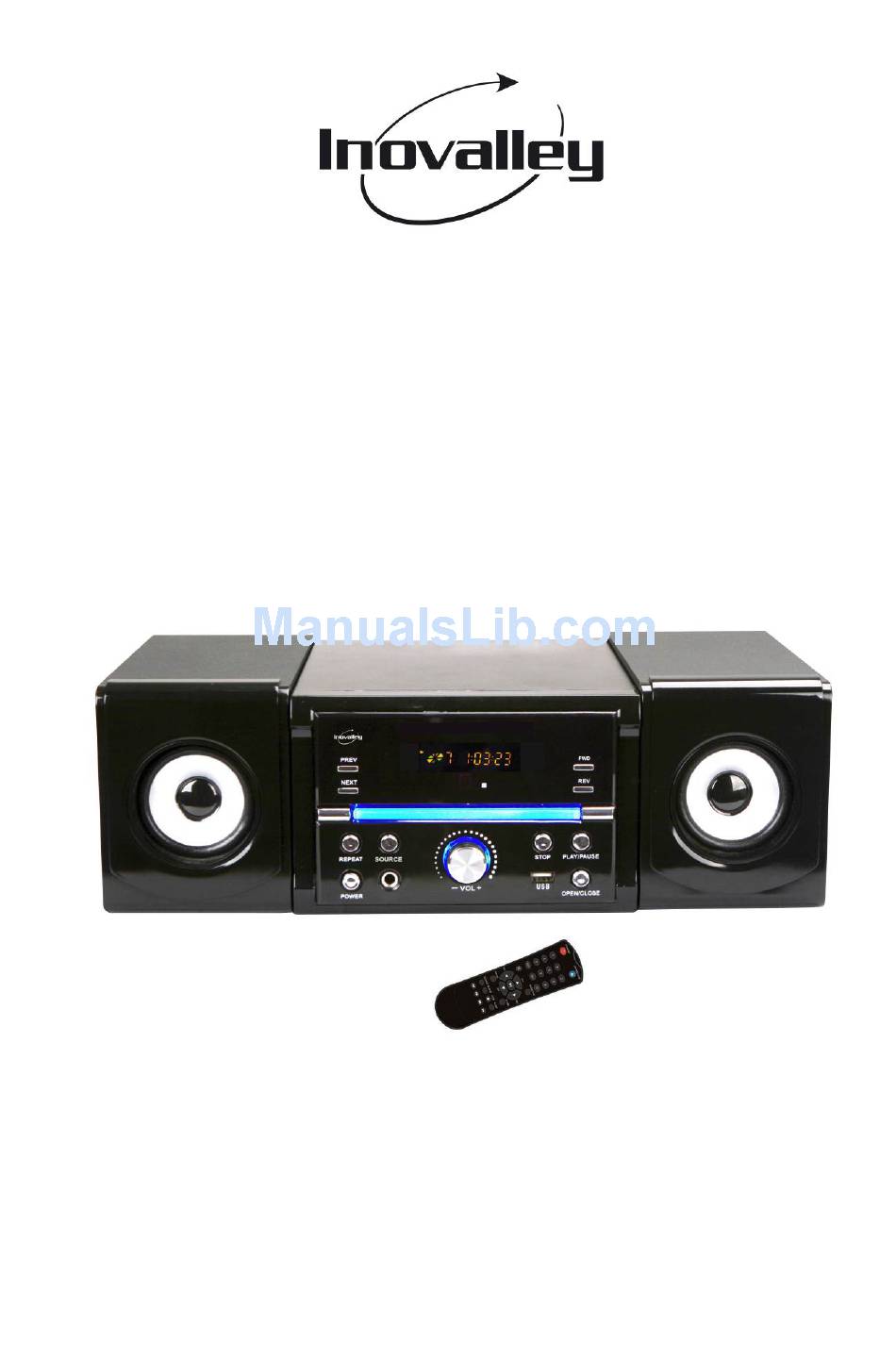

- Page 1 BLUETOOTHT HIFI SYSTEM CD PLAYER Ref: CH10CD‐BTH ‐ USER MANUAL ‐ ...
-
Page 2: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTION ‐ Thank you very much for your purchase of our Bluetooth HiFi System. ‐ To optimize the performance of this system, please take the time to read through this manual and become familiar with the operation procedures. ‐ Be sure to keep this manual for future reference. ‐ On the machine should not receive the water drop or the water splashes, on the machine could not lay object filled with liquid, like vase. ‐ The power cord must remain easily accessible. Power sources: this unit should Never handle the power plug with only be used with indicated on wet hands. the marking label. Do not place a heavy object on or Never open the cover. Avoid small step on the unit. Avoid to place metals and liguids dropping into the unit under sunlight. Protect power cable. Avoid high Unplug the power cord from the wall pressure and do not step on it . outlet when you do not use it for a Do not pull it or bend it excessively. long time. ... - Page 3 Please read this user manual carefully before you use this product. Please reserve it properly for reference in the future. Please do not expose the unit in the raining or moist environment to avoid fire hazard or electric shock. This set employs an optical laser beam system in the CD mechanism designed with built-in safeguards.
-
Page 4: Placement And Maintain For The Unit
ELECTRIC SUPPLY 1. Please unplug the product in case of prolonged non‐use. 2. If the supply cable is damaged, it must be replaced by the manufacturer or qualified after‐sales personnel to avoid any danger. 3. This product must be connected to an electrical supply 100‐240V ~ 50/60Hz. 4. The plus must be accessible after installation. 5. Hold the plug well when you plug the power cord in or out. 6. Please do not put the AC power cord near any heat source equipment. 7. Please do not place any heavy objects on the AC power cord. 8. Please do not overhaul the AC power cord. 9. This product contains a low power laser device. In order to keep safety, please do not open the unit to expose the inside parts. If there is some problem need to be repaired, please let the professional people check and repair it. PLACEMENT AND MAINTAIN FOR THE UNIT 1. Please do not put the unit in a sealed place or cover something onto the unit, to avoid the unit damaged by its inside temperature’s abrupt rising. 2. Please do not expose the unit under the sunshine directly or place it near the heat source equipment. ... - Page 5 7. Do not put your fingers or other objects into the unit. 8. Under the following circumstances, there will be condensed dew on the Lens: 1) When the heat source equipment was just activated. 2) In a very damp room or a room with vapor. 3) When the unit is just moved from a colder place to a hotter place. 9. Pull the plug out of the socket before cleaning the unit. Use a piece of wet cloth for cleaning. Please do not use detergents or sprays, which will cause the liquid enter into the inside unit and cause unit damage, fire hazard or electric shock. This kind of liquid will also damage the surface of the unit. ...
-
Page 6: Table Of Contents
TABLES OF CONTENT IMPORTANT SAFETY INSTRUCTION PLACEMENT AND MAINTAIN FOR THE UNIT TABLES OF CONTENTS MAIN CHARACTERISTICS PACKING CONTENT OPERATION AND MAINTENANCE OF CD DISCS OPERATION INTERFACE REMOTE CONTROL BASIC OPERATION TECHNICAL SPECIFICATIONS USEFUL TIPS TROUBLESHOOTING ... -
Page 7: Main Characteristics
MAIN CHARACTERISTICS Full compatible with CD, WMA, MP3, CD‐R/RW discs etc. With USB2.0 and SD card Slot. The unit can read information from USB or SD card quickly. With Digital FM function. With Bluetooth function It can play MP3 file both from CD disc and USB driver. With Full Function Remote Control. PACKING CONTENT Please refer to the following accessories. If you found there is any shortage for the contents, please contact the dealer immediately. Remote Control User Manual Audio Cable OPERATION AND MAINTENANCE OF CD DISCS ◇ Please take out the disc by holding the brim of the discs as below, please try to not touch the shinning side of the disc (Data Storage Side) ◇Please don’t attach any labels on the side of the disc. Do not scratch the surface of the disc. ◇When the disc is being played, the rotate speed will be very high. Please do not use any damaged, scratched, cracked or bent discs to avoid causing unit damaged. ◇Fingerprints or Dirt on a disc will impair the reflective light of the disc and will affect the signal’s quality directly. The poorer the signal’s quality is, the poorer the playing effect is. Please use the soft cloth to wipe the disc from the disc center towards the outside direction. ... -
Page 8: Operation Interface
If the disc is very dirty, please use a wet soft cloth to wipe it firstly, and then use the dry soft cloth to wipe it again. Please do not use detergents, benzene, thinner, antistatic liquid or other solvents. Otherwise it will damage the surface of the disc. ◇Please put the discs into the original boxes where they are so as not to bend them. Do not put the discs at the place of high temperature, high humidity or direct sunshine, because the bad environment will also make the discs damaged. ◇Please read the instruction label for the discs. OPERATION INTERFACE FRONT PANEL 1. PREV: Press this key to choose last song or file. 2. NEXT: Press this key to choose next song or file. 3.SOURCE: Press this key to choose CD/USB/SD CARD/BLUETOOTH/AUX/FM mode. 4.REPEAT: Press this key to repeat the song or file. 5. POWER: Press this key to turn on or turn off the power for the unit. 6.FWD: Press this key to enter into the fast forward status 7.REV: Press this key to enter into the fast backward status. 8. STOP: Use this key to stop CD playback 9. PLAY/PAUSE: Use this key to start or pause CD playback. When you press this button ... - Page 9 during playback, the unit enters Pause mode. 10. USB: Connect a USB Driver here. 11. OPEN/CLOSE: Press this key to open or close the disc tray (only use under CD mode). 12. VOLUME+/‐: Rotate this button, “Volume+” will make the volume become bigger, “Volume‐“will make volume become smaller. REAR PANEL 1. AUDIO Out These terminals are for connecting audio output of external devices, such as TV. 2. AUX IN These terminals are for connecting PC, Mobile, MP3 etc.. 3. SD/MMC Card: Insert SD/MMC card to this slot, and then press the “FUNCTION” key to choose Card status, and then press PLAY key, it will begin to playing the file from SD/MMC card. ： 4. FM Antenna When you choose FM status and search for the FM channels, you need to use it. ： 5. Speaker Output These terminals are for connecting speakers. ...
-
Page 10: Remote Control
REMOTE CONTROL ◇Method for installing the batteries of the remote control 1. Turn to the back side of the remote control and remove the small cover; 2. Install 2 x AAA batteries (not included)properly; 3. Fit on the small cover. Note： 1. Please do not use the rechargeable battery 2. Does not mix use the battery with different brand and type for the remote control. Please do not use the new and old batteries together. ... - Page 11 REMOTE CONTROL DIAGRAM ． STANDBY ． NUMBER KEYS ． MUTE ． CH+ ． VOL‐ ． PLAY/PAUSE ． PROG ． CH‐ ． SOURCE ． REPEAT ． PREV ． NEXT ． OPEN/CLOSE ． BASS/TREBLE ． CH+ ． ST/MO ． SLEEP ． STOP ． FWD ． REV ...
- Page 12 （only use in radio mode and choose the FM channel which you have saved） Press this key to decrease the volume. ． PLAY/PAUSE Press this key to make the music play or pause（automatic searching under radio mode）. ． PROG Only after FM automatically searching and saved many FM channels, it will realize the PROGRAM function. There is no function under other modes. ． CH‐ Press this key, it will choose the last FM station.（only use in radio mode and choose the FM channel which you have saved） ． SOURCE Press this key repeatedly; you can switch among CD, USB, SD CARD,AUX IN,FM RADIO and BLUETOOTH playing. ． REPEAT Press this key twice; it will enter into the "ALL REPEAT" mode. But because the software defaulted this mode ON, when you press this key twice, there will be no any change. But if ...
-
Page 13: Basic Operation
Press it to stop the file playing. ． FWD Press this key to enter into the fast forward status, press it repeatedly, it will show： 2X: The program will be played at 2 times speed of forward. 4X: The program will be played at 4 times speed of forward. 8X: The program will be played at 8 times speed of forward. ． REV Press this key to enter into the fast backward status, press it repeatedly, it will show： 2X: The program will be played at 2 times speed of backward. 4X: The program will be played at 4 times speed of backward. 8X: The program will be played at 8 times speed of backward. BASIC OPERATION I.FUNCTION CHOOSE Press the " SOURCE" key on the remote control, you can choose to play CD, USB,SD CARD, AUX IN,FM RADIO and BLUETOOTH as you like. II. CD PLAYING Press the ON/OFF power button the unit, the unit shall take the priority to enter into CD mode . III. USB PLAYING Insert USB flash driver, and then press the “SOURCE" key to choose USB status, and then press PLAY key, it will begin to playing the file from USB flash driver. IV. SD/MMC PLAYING Insert SD/MMC card, and then press the “SOURCE" key to choose Card status, and then press PLAY key, it will begin to playing the file from SD/MMC card. ... -
Page 14: Technical Specifications
VI. BLUETOOTH Press “SOURCE" key to choose BLUETOOTH status from the front panel or remote control, it will enter into the Bluetooth status automatically. And then please open the Bluetooth function on your mobile phone or others Bluetooth device, it will begin to search for the Bluetooth device. This unit’s Bluetooth name is “CH10CD‐BTH”, finally your phone will match with this unit successfully. ... -
Page 15: Troubleshooting
TROUBLESHOOTING Before contact with the repair person, you should check the problem reason follow the instructions. Phenomenon Reasons Countermeasures 1.Please correctly connect the 1.Audio line is not properly audio line connected No sound 2.Please clean and handle disc 2.Disc deformed or dirty 3.Please press mute button again 3.The machine n a mute status to cancel mute 1.Clean the disc and deal with the 1.Disc was bad disc produced ,deformation or dirty No read disc 2.Put in disc again, label upwards 2.Disc is not properly placed 3.Open the power switch, remove 3.Optical header dew disc, and then hold about 1 hour 1. Remote control is not point at ... - Page 16 ・ deposit batteries and accumulators in specific containers arranged among traders. For example, metals will be valued and polluted the environment because they contain heavy metals hazardous to health and the environment primarily (cadmium and nickel) ‐ The piles must installation by respecting the polarity indicated on the apparatus and the pile. An incorrect positioning can is to damage the apparatus, is to cause escapes on the level of the pile, is to the extreme to cause a fire or the explosion of the pile. ‐ To ensure proper operation, the batteries must be in good condition. In case of abnormality in the functioning of the device, put fresh batteries ‐ Never attempt to recharge non‐rechargeable batteries. They could run, warm up, causing a fire or explosion. ‐ Replace all batteries at the same time. Never mix zinc batteries with alkaline batteries or rechargeable batteries ‐ The batteries must be removed from the device ‐ Also, remove the batteries from your device if you do not use it for a long time, if the batteries may leak and cause damage. ‐ Never try to short‐circuit the battery terminals ‐ Never dispose of batteries in fire, they might explode ‐ Charging of batteries is to be performed by an adult. ‐ Remove batteries from the device before reloading. ‐ We recommend an adult to supervise children when they change the batteries so that these instructions are complied with or to make himself the replacement of batteries. ‐ If a battery is swallowed, immediately consult a doctor or poison control center nearest you. Do not forget to carry the product with you. ...
- Page 17 ...
