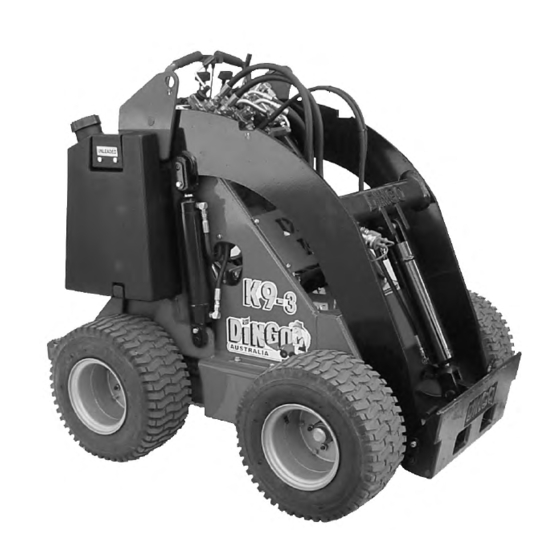

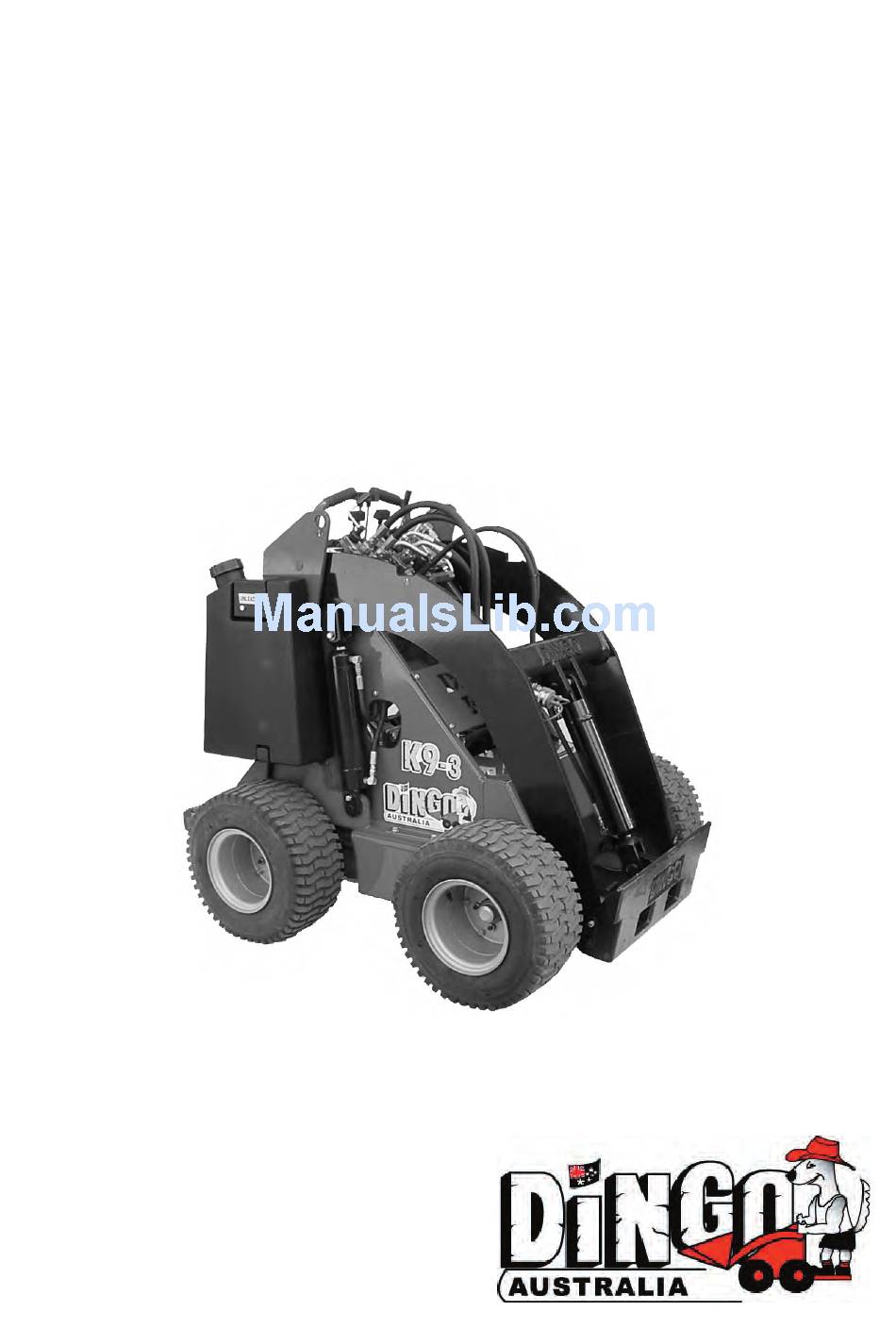

DINGO™ K9-
3
OPERATION & MAINTENANCE
MANUAL
IMPORTANT: Become familiar with the contents
of this manual before operating the Dingo. This
Manual contains Safety, Operation and Warranty
Information. Also become familiar with the controls
& their proper use before operating the Dingo.
Modified January 2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K9-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DINGO K9-3

  • Page 1 DINGO™ K9- OPERATION & MAINTENANCE MANUAL IMPORTANT: Become familiar with the contents of this manual before operating the Dingo. This Manual contains Safety, Operation and Warranty Information. Also become familiar with the controls & their proper use before operating the Dingo.
  • Page 2: Introduction

    Congratulations on purchasing the World’s Leading Mini Digger. In purchasing a Dingo you have obtained a machine of the highest quality and we want you to be totally satisfied as our customer. Please feel free to contact any of our branches for help with service, genuine replacement parts, business and operation tips and any other information you may require.
  • Page 3: Table Of Contents

    Flow Divider Control Starting the Engine .................12 Stopping the Engine ...............12 Stopping the Dingo .................12 Moving a Non Functioning Dingo..........12 Using Cylinder Locks ..............12 Attachments ..................Connecting ..................12 Disconnecting .................13 Transporting and Securing ............Dingo K9-3 Operation & Maintenance Manual...
  • Page 4 Hydraulic Assembly & Part List ..........Kohler Petrol Engine Assembly & Part List ....Perkins Diesel Engine Assembly & Parts List .... 30 Oil Tank Top Assembly & Part List ........Risk Hazard Assessment..........36 Warranty Statement ..............Dingo K9-3 Operation & Maintenance Manual...
  • Page 5: Safety

    The Dingo is not a toy - Do not allow WARNING E n g i n e children to play on it.
  • Page 6: Operating On Slopes

    Dingo or any of its attachments. phone us and ask. These same rules apply when loading and unloading the Dingo onto a trailer n Do not allow children to play on the Dingo or truck. or within the Dingo work site (aside from the danger of working machinery there may be n Avoid turning on slopes.
  • Page 7: Safety And Instruction Decals

    A small leak can be dangerous. To find hydraulic leaks use cardboard or paper. If fluid is accidentally injected into the skin a doctor familiar with this type of injury must surgically remove it within a few hours. Dingo K9-3 Operation & Maintenance Manual...
  • Page 8: Specifications

    0.18 cu m Height to hinge pin (std. bucket in highest position) 1680mm Specifications and design subject to change without notice. HEIGHT 1200mm GROUND CLEARANCE 135mm REAR OVERHANG WHEEL BASE 710-800mm 520mm LENGTH WITHOUT BUCKET 1565mm Dingo K9-3 Operation & Maintenance Manual...
  • Page 9: Operation - Pre Start-Up

    1 Position Dingo on level surface, lower the Dingo arms and turn off the engine (turn ignition Debris can build up in the engine area. Clean key to off). Remove the key.
  • Page 10: Tyres And Traction

    Solid fill (all of the tyres mentioned IMPORTANT: Do not high pressure wash. above (excluding the 3”solids) can be supplied High pressure washing can damage the elec- by Dingo Mini Diggers, filled with a puncture- trical system. proof, solid foam). Tyres and Traction •...
  • Page 11: Attachment Tilt Lever

    (If released the control levers will automatically return to neutral). To operate attachment in forward direction, The Dingo is capable of turning on the spot by slowly pull auxiliary lever rearward. To op- applying equal power to each drive lever in op- erate attachment in reverse direction, slowly posite directions.
  • Page 12: Starting The Engine

    It is also possible to push gine. or tow a Dingo without the use of the engine. By 7 Engage the attachment lock pins (the lock pins adjusting the Over Centre Valve it is possible to should go down 15mm as they turn).
  • Page 13: Disconnecting

    With no attachment 11 Remove protective plugs from the hydraulic on the Dingo, climb the ramps in the reverse couplers on the Dingo. Connect plugs together direction. to prevent contamination during operation. 3. The bucket, post hole digger and leveller...
  • Page 14: Maintenance Schedule

    Have UTE bendix starter drive serviced (2) Engine Manual Have solenoid shift starter disassembled and cleaned Robin Clean Carburettor Engine Manual Clean cylinder head Clean engine base (oil pan) Check and adjust valve seats Adjust valve clearance Replace spark plugs Dingo K9-3 Operation & Maintenance Manual...
  • Page 15: Dingo Service Pack

    If the filter or filter housing is damaged, stop the This warms the oil so it drains better. 2 Park the Dingo so the drain side is slightly engine immediately and replace the damaged components. Failure to stop work when the lower to ensure that the oil drains completely.
  • Page 16: Changing Oil Filter

    1 Park the Dingo on a level surface, to ensure Note: Dispose of used oil in accordance with ..fuel tank drains completely. local authority regulations. 2 Lower the Dingo arms and turn the ignition key 7 Slowly pour approximately 80% of the spec- ..to OFF to stop the engine.
  • Page 17: Changing The Hydraulic Fluid

    To check the chain tension: result. 1 Remove the chain guard (Unless chain guards 1 Position the Dingo on a level surface, lower have Tension Gauge cut into them) the arms and turn the ignition key to OFF to stop 2 Tilt the bucket so that the front wheels lift off the engine.
  • Page 18: Battery

    1 Place a 1 1/16” spanner on the lock nut behind the axle. 1 Lower the Dingo arms and turn the ignition key 2 Use a 1 1/8” spanner to loosen the front lock to OFF to stop the engine. Remove the key.
  • Page 19: Troubleshooting

    4. Pump and/or wheel motor is defective or dam- 4. Contact authorised service dealer aged 5. Control valve is defective or damaged 5. Contact authorised service dealer 6. Relief valve is defective or damaged 6. Contact authorised service dealer Dingo K9-3 Operation & Maintenance Manual...
  • Page 20: Arm Assembly & Part List

    Clevis Pin 1 1/4" x 63mm 50mm Tag D95036 Clevis Pin 1" x 75mm 50mm Tag D95034 Clevis Pin 1" x 64mm 30mm Tag K93-006 Clevis Pin 1" x 115mm 30mm Tag 132-131-000 5/16" Spring Washer 111-311-016 Hex Bolt M8x16 Dingo K9-3 Operation & Maintenance Manual...
  • Page 21: Mount Plate Assembly & Part List

    Clevis Pin 1 1/4” x 63mm 50mm Tag Chrome 132-131-000 5/16” / 8mm Spring Washer 111-311-016 Hex Bolt M8x16 K94-105 Clevis Pin 1 1/4” x 63mm 50mm Tag PGIH 043-300-054 Seal For 1 1/4” Needle Bearing L15X 043-000-053 1 1/4” Needle Bearing Dingo K9-3 Operation & Maintenance Manual...
  • Page 22: Front Axle Assembly & Part List

    Wheel Stud 7/16" UNF x 1 1/2" 610-000-030 Wheel Stud 7/16" UNF x 1 7/8" (2003 Onwards) 610-000-010 Wheel & Tyre Assembly (Trelleborg Tyre) 121-382-000 3/4" UNC Hex Nut Black 610-000-027 Wheel Nut 7/16" UNF Dingo K9-3 Operation & Maintenance Manual...
  • Page 23: Rear Wheel Assembly & Part List

    Wheel Stud 7/16" UNF x 1 7/8" (2003 Onwards) 614-000-001 Chain 60H 102 Links Including Connector 330-001-002 1 1/4" UNEF Castle Nut To Suit Taper Shaft MB/ME Wheel Motor 330-001-007 1 3/8" Nyloc nut For Tapered Shaft Dingo K9-3 Operation & Maintenance Manual...
  • Page 24: Dash Assembly & Part List

    M6 X 20MM Hex Bolt Zinc H/T 043-000-044 Ignition Switch Petrol (K9-3/K9-4) 410-000-048 Hour Meter Round (K9-3/K9-4) K93-030 K93 Dash Assembly Cover 131-121-000 Washer 6MM Flat 17MM OD ZP 043-000-047 Ignition Switch Key Petrol (K9-3/K9-4) Dingo K9-3 Operation & Maintenance Manual...
  • Page 25 344-010-002 PIPE - REMOTE TO SUB BANK - 4B D95743 REMOTE BANK HANDLE 330-003-007 CONTROL LEVER 950&K93 FLOW DIVIDER 13-064 315-757-600 ADAPTOR C461414 90 M/F 7/8 X 7/8 JIC 316-477-501 CP2-0814 PUMP SELECTOR HANDLE Dingo K9-3 Operation & Maintenance Manual...
  • Page 26: Hydraulic Assembly & Part List

          Item Part Number Description 321-000-005 Lift Cylinder 330-003-008 Main Control Bank 315-797-500 C59-1414 Fitting 330-003-032 Short Handle 330-003-031 Long Handle 316-377-500 CR2-0614 Fitting 316-377-500 CR2-0614 Fitting 316-377-500 CR2-0614 Fitting Dingo K9-3 Operation & Maintenance Manual...
  • Page 27 Hex Nut Plain M6 111-311-060 Hex Bolt M8 x 60 121-131-000 Hex Nut Plain M8 131-131-000 Plain Washer M8 111-311-070 Hex Bolt M8 x 70 111-311-090 Hex Bolt M8 x 90 D95-722 Spacer 8mm D95-723 Spacer 5mm Dingo K9-3 Operation & Maintenance Manual...
  • Page 28: Kohler Petrol Engine Assembly & Part List

    330-005-009 Pump Coupling D95-352 Kohler Shaft Washer 111-421-025 Hex Bolt M10 x 25 515-000-001 Kohler Main Air Hose (Up To D014) Small Air Cleaner 515-000-056 Kohler Main Air Hose (D015 Onwards) Large Air Cleaner Dingo K9-3 Operation & Maintenance Manual...
  • Page 29 Nyloc Nut M8 120-132-000 M8 Speed Nut 111-311-025 Hex Bolt M8 x 25 111-322-025 Socket Head Cap Screw M8 x 25 516-000-010 Fuel Tank Bottom Packer 516-000-009 Fuel Tank Side Packer 516-000-008 Fuel Tank Top Packer Dingo K9-3 Operation & Maintenance Manual...
  • Page 30: Perkins Diesel Engine Assembly & Parts List

    Dingo K9-3 Operation & Maintenance Manual...
  • Page 31 1 515-000-048 2 3/8” Hose Clamp 1 K94-336 Pre-Cleaner Pipe Pre-Cleaner 1 330-005-019 Flex Drive Plate 1 330-005-020 Bell Housing Plate 1 K93-808 Pre-Cleaner Bracket 3/8” x 2” Stud 1 330-005-018 Spline Drive Coupling Dingo K9-3 Operation & Maintenance Manual...
  • Page 32 1 D95-360 Engine Mount Plate 12mm Brass Washer 1 101-000-003 12mm Banjo 1 K94-845 Banjo Bolt 1 100-000-054 Hose Clamp 11-18mm 3/8” Ortac Hose Sump Drain Hose Fitting JIC3DK21 1 312-650-000 Hydraulic Fitting C78-12 Dingo K9-3 Operation & Maintenance Manual...
  • Page 33: Oil Tank Top Assembly & Part List

    Hose Tail Straight 516-000-013 Rubber Hose 330-000-026 Filter Hyd Tank Breather Z91 D95722 8mm Spacer 111-311-030 M8 x 30mm Hex Bolt 111-211-020 M6 x 20mm Hex Bolt 122-121-000 M6 Nyloc Nut 132-131-000 5/16" Spring Washer Dingo K9-3 Operation & Maintenance Manual...
  • Page 34 Tank Top Welded Assembly 516-000-013 Rubber Hose K93-036 K94 Hyd Breather D95722 8mm Spacer 111-311-030 M8 x 30mm Hex Bolt 111-211-020 M6 x 20mm Hex Bolt 122-121-000 M6 Nyloc Nut 132-131-000 5/16” / 8mm Spring Washer Dingo K9-3 Operation & Maintenance Manual...
  • Page 35 Oil Filter Cap O-Ring Oil Filter Relief Spring 1 330-004-020 Oil Filter Element HF502.20.122 Oil Filter Bottom O-Ring Oil Filter Cup Oil Filter Cup To Body O-Ring Oil Filter Body Oil Filter Body O-Ring Dingo K9-3 Operation & Maintenance Manual...
  • Page 36: Risk Hazard Assessment

    Product Name: K9-3 Summary of Product The K9-3 is the power plant for the attachments. Designed to be Application operated by a single operator, from the operators standing platform at the rear of the machine using the hydraulic lever system.
  • Page 37 • Appropriate hearing protection should be used if the operator is using the Dingo for prolonged periods in one day. If the Dingo is to be used in an enclosed area for prolonged periods in a day, both the operator and others working around the Dingo should wear appropriate hearing protection.
  • Page 38: Warranty Statement

    DINGO MINI DIGGERS PTY LTD warrants to the original buyer/owner that each new Dingo™ or Dingo attachment will be free from any proven defects in the material or workmanship for a period of twenty - four (24) months or 1000 hours, whichever is sooner, after the delivery to the...
  • Page 39 Digger dealer. ENGINE POLICY The engine in a new Dingo Mini Digger is covered by the manufacturer of that specific engine, not by Dingo Mini Diggers Pty Ltd. The engine owner's manual will have details of the cover provided. BATTERY POLICY The Battery in a new Dingo Mini Digger is covered by the manufacturer of that specific battery under that companies normal warranty policy.
  • Page 40 Proudly manufactured by Dingo Mini Diggers Pty Ltd 9 Owen Street East Dalby Qld, 4405 Australia Dalby Head Office 07 4672 5400 Adelaide 08 8262 2022 Brisbane 07 3272 7088 Perth 08 9311 9811 Sydney 02 9833 8222 Nth Queensland...
