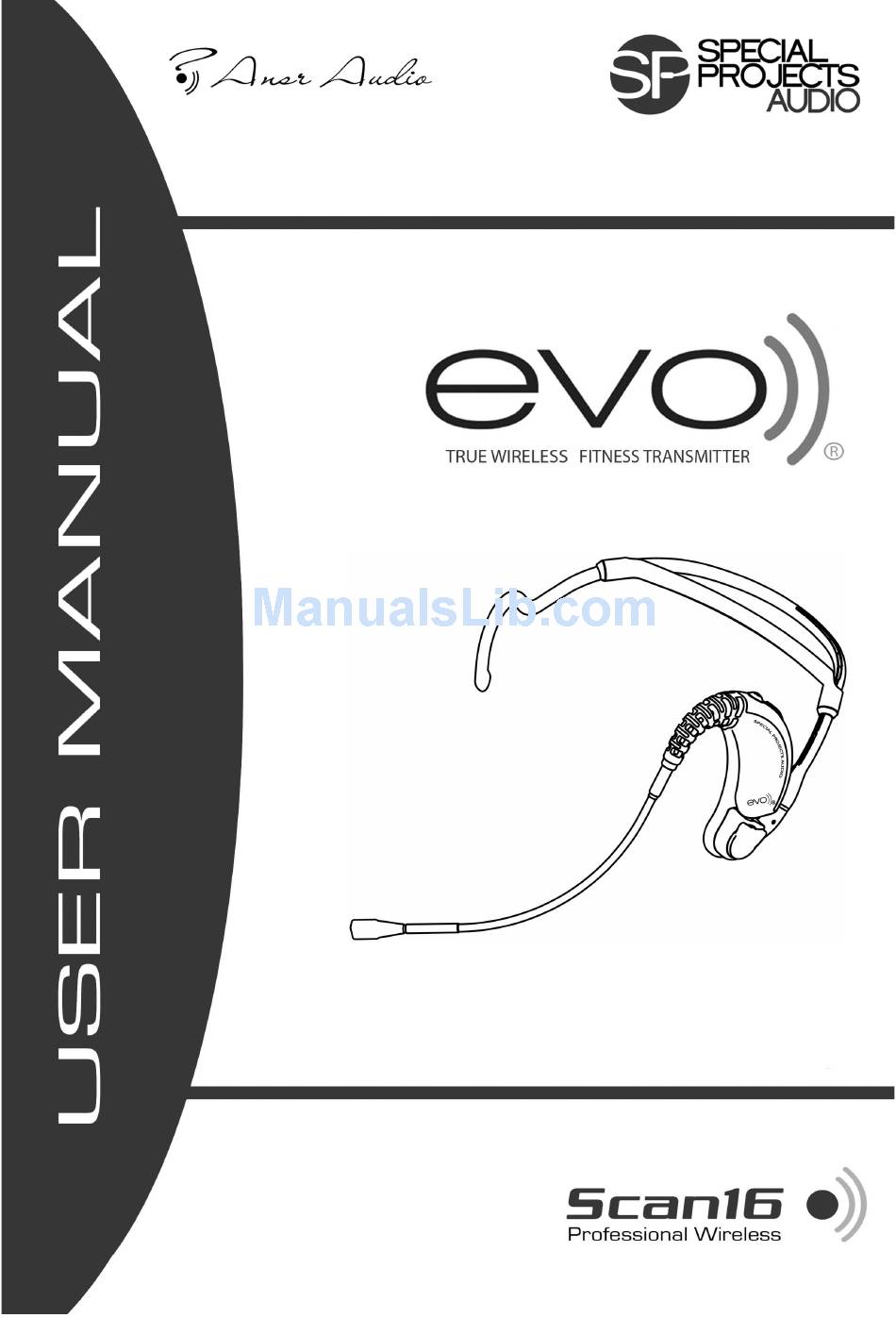

Evo Scan16 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Scan16 and is the answer not in the manual?

Questions and answers

Summary of Contents for Evo Scan16

  • Page 2 FCC STATEMENT This device complies with part 74, Subpart H of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 3: Table Of Contents

    Special Projects Evo True Wireless Fitness Transmitter Ansr Audio Scan16 Professional UHF Receiver Table of Contents Page 1. Introduction 2. Safety 3. Environment 4. Wireless Note 5. Quick Start Guide 6. Product Description AW-25 and SP-25 Scan16 Receiver AW-25R and SP-25R Scan16 Receiver Evo True Wireless Fitness Transmitter 7.

  • Page 4: Introduction

    Thank you for purchasing the Scan16 Professional Wireless Microphone System featuring the Evo True Wireless Fitness Transmitter (for brevity, noted in this manual as 'Evo'). This Patent Pending PLL synthesized wireless microphone system operates in an FCC approved UHF band frequency with 16 selectable channels.

  • Page 5: Quick Start Guide

    5. Quick Start Guide  Fully charge the Evo transmitter by connecting the charging adapter to the supplied wall plug transformer. Leave your Evo transmitter powered OFF while charging. Green LED will turn off when charged. Replace charging adapter cover before use.

  • Page 6: Product Description

    6. Product Description 6.1 AW-25 and SP-25 Receiver The AW-25 and SP-25 receiver is designed for use only with Ansr Audio / Special Projects 16- channel selectable channel transmitters. The receiver operates in UHF 682-697 MHz frequency band with PLL synthesized control. Newer systems include the AW-25R or SP-25R receiver.
  • Page 7 15. AC IN: AC input connector for the supplied AC adapter. 16. DC OUT: This output is NOT to be used with the Evo. To charge your Evo, use the supplied wall plug transformer. Attempting to use this point to charge your Evo will damage the...

  • Page 8: Aw-25R And Sp-25R Scan16 Receiver

    6.2 AW-25R and SP-25R Receiver The AW-25 receiver is designed for use only with Ansr Audio / Special Projects 16- channel selectable channel transmitters. The receiver operates in UHF 682-697 MHz frequency band with PLL synthesized control.
  • Page 9 6.2 Continued: AW-25R and SP-25R receiver 1. Power: Press for 2 seconds to power the receiver on or off. 2. Channel Display: LED channel displays the channel number. △ 3. Button : When the LED display starts flashing, press this button to change the channel forward.

  • Page 10: Evo True Wireless Fitness Transmitter

    The LED will flash to indicate a change in power status. After powering on, LED will flash red at 4-5 second intervals to indicate the Evo is on. 4. Channel Selector and Cover: Lift cover to set the transmitter channel via the rotary selector with the included mini screwdriver.

  • Page 11: Setting Up

    7. Setting Up NOTICE: Prior to setting up, please check that the transmitter and receiver are tuned to the same frequency. Two or more transmitters operating in the same frequency cannot be used at the same time in the same area. For each extra transmitter, please select a different frequency which can be used simultaneously at local area.

  • Page 12: Charging The Evo

     Open the charger cover and insert the charging connector into the Evo as illustrated below. Only the supplied wall charger should be used. Do not use the receiver’s DC out to charge the Evo.  Insert the charging cable into the charging adapter as illustrated at right.

  • Page 13: Channel Setup: Auto Or Manual

    Don't forget to set each transmitter accordingly. 7.5 Evo Headworn Transmitter Channel Set Power the Evo transmitter ON by pressing the POWER button for one second.  Open the channel selector cover and set the rotary selector to the desired channel. Note that the rotary selector is alpha-numeric.

  • Page 14: Basic Connections

    8. Basic Connections 8.1 Connecting To A Sound System Connect the receiver output to the audio mixer or amplifier input, using a standard XLR microphone cable or ¼ inch audio cable. Never use the balanced and unbalanced audio outputs at the same time! This may cause signal loss or increased noise.

  • Page 15: Rackmounting

    8.2 Rackmounting To combine two receivers in a 19” standard rack by using 2 short L type plastic racks (L2) and 2 metal connecting plates (C1). (Each system includes L2 and C1.) Note that if you are using two systems at one time, they must operate on different channels. Refer to section 7.4 and 7.5 for details.

  • Page 16: System Features

     Switching antenna diversity to ensure the reception quality and avoid dropouts.  Super high sensitivity, extremely low noise transmission and reception.  Built- in recharging system eliminates battery cost. 10. System Specification AW-25, AW-25R, SP-25, SP-25R Scan16 Receivers Carrier Frequency Range: UHF band, 682.375 – 697.125 MHz Frequency Stability: +/- 0.005%...

  • Page 17: Troubleshooting

    Be certain antennas are properly placed (see image in Section 8.1). 12. Warranty Your Evo True Wireless Fitness System is covered for one year against defects in materials and workmanship. In the event of such defects, Ansr Audio will repair our product free of charge unless otherwise specified in detail, or replace with a new product of equal or greater value .This warranty excludes defects due to normal wear,...
  • Page 18 Ansr Audio, Inc. 3800 HWY 271 N Powderly, TX 75473 Phone: 866-491-2677 Fax: 866-746-4366 www.ansraudio.com www.specialprojectsaudio.com Copyright Ansr Audio, Inc., 2009, 2013...
