Summary of Contents for eHealthyNet MBC-033-B

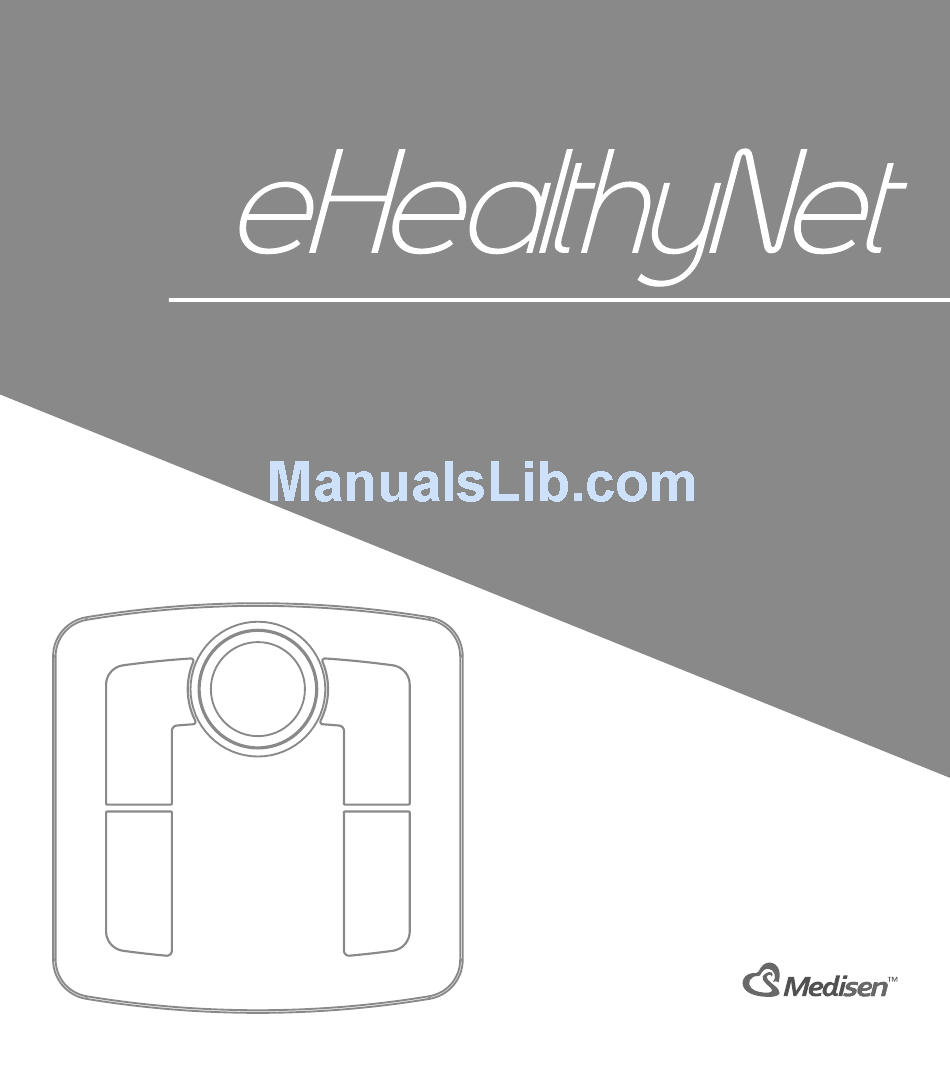

- Page 1 Body Fat Analyzer MBC-033-B User Manual...
-
Page 3: Table Of Contents
INTRODUCTION ..........4 PACKAGE CONTENT ........4 INTENDED USE ..........5 PARTS ............5 HARDWARE SET UP ........6 eHealthyNet APP ..........6 MODE SETTING ..........9 MEASUREMENT .......... 10 ABOUT BMI ..........12 ABOUT BODY FAT ........13 ABOUT BODY WATER CONTENT ....14 SPECIFICATION .......... -
Page 4: Introduction
INTRODUCTION Thank you for purchasing the eHealthyNet Body Fat Analyzer. The eHealthyNet Body Fat Analyzer is easy to use that applys the Bioelectrical impedance Analysis (BIA) technology to measure your body weight and cal- culate your body composition such as body fat, body fat, visceral fat, muscle mass, bone mass Body Mass Index (BMI) and Basal Metablolic Rate (BMR). -
Page 5: Intended Use
INTENDED USE The eHealthyNet Body Fat Analyzer is intended for use at home or domestic setting only. It is designed to measure the body weight and compositions of a healthy adult individual. The measurement result might not be optimal for children, elderly, pregnant or professional athlete. -
Page 6: Hardware Set Up
Remove the battery cover. Insert 4 AAA batteries into the compartment. eHealthyNet APP Download eHealthyNet App The App is available in both Google Play and Apple App Store. Before the first use of the monitor, download the “eHealthyNet” App from Google Play and Apple Store. - Page 7 Account Setting Follow the on-screen instruction to register and set up your personal account. Connect the monitor with mobile device Switch “bluetooth” on under the “Settings” menu on IOS or Andriod devices. Select the “Measure” button in the main screen and then “+”...
- Page 8 Wait for the analyzer pairs with your mobile device, it may last for 30 seconds. If succeed, the machine displays following screen. If failed, the screen displays the error sign 1 (E1, also see the section “TROUBLESHOOTING”.)
-
Page 9: Mode Setting
After successful pairing, select the paired device under “Measure” Button of the App. And Press Start/Stop Button on the monitor to start measure- ment. MODE SETTING Measurement Unit Press Unit Button at the back of the analyzer when pow- er is off, the screen displays as the picturein the next page, press Unit Button to switch between kilogram (kg) Stone (st) and Pound (Ib) units. -
Page 10: Measurement
Pound Stone MEASUREMENT Pre-measurement Take off your shoes and socks before measurements, avoid use the analyzer after doing exercises. Take Measurements with Mobile Devices Switch on bluetooth, launch the “eHealthyNet” App in your mobile device. - Page 11 Select the paired analyzer under “Measure” Button of the App. Step on the analyzer, do not move, lean forward or backward on the machine. If you are taking measurement with bare feet, the screen displays “o” mov- ing from left to right, wait until it stop. After the measurement, the screen displays a bluetooth sign showing that the data is transmited to your mobile...
-
Page 12: About Bmi
ABOUT BMI The National Heat, Lung, And Blood Institute (NHL- BI) have created the following guide to classify BMI of healthy adult individual. BMI Classification Color indicator Underweight <18.5 Cyan Normal 18.6-24.9 Green Overweight 25-59.9 Yellow Obesity I 30-34.9 Orange Obesity II 35-39.9 Orange... -
Page 13: About Body Fat
ABOUT BODY FAT According to University of Illinois Department of Food Science and Human Nutrition, the body fat level can be classified as the following table. Standard for Men Rating 20-29 30-39 40-49 50-59 <13 <14 <16 <17 <18 14-20 15-21 17-23 18-24... -
Page 14: About Body Water Content
ABOUT BODY WATER CONTENT According to Wang & Denrenberg et, al. in “Hydration of fat-free body mass”, American Jounal Clin Nutr 1999, 69833-841. The Body water content is classified as the following table. BF % RANGE OPTIMAL TBW % RANGE 4 to 14% 70 to 63% 15 to 21%... -
Page 15: Specification
SPECIFICATION Body Fat Analyzer (MBC-033-B) Product Name Dimension Scale: 310x310x31mm Net Weight Approxim ately 1.63kg ( Excluding the dry cells) Display Digital LCD with White Backlight Measurement Unit Kilogram / Stone/ Pound Measurement Range 5kg to 180kg / 0st: 11lb to 28st: 5lb / 11lb to 397lb Division 0.1kg / 0.2lb... -
Page 16: Safety Precautions
SAFETY PRECAUTIONS Read all of the information in the User Manual and other provided instructions before operating the Analyzer. Consult your physician if there is any concern about using the Analyzer. Do not move or jump on the analyzer as it may lead to inaccurate result. -
Page 17: Care & Maintenance
The product might not meet its performace spec- ifications if not stored or used within the specified range of temperature, relative humidity and air pressure in the section “SPECIFICATION”. Keep the analyzer away from high radiation device such as microwave oven. CARE &... -
Page 18: Troubleshooting
Storage Store the analyzer in a dry and clean environment, avoid direct sunlight (see the storing environmental condition in the section “SPECIFICATION”). Remove the batteries if the monitor will not be used in 3 months. TROUBLESHOOTING Error Sign Error signs are displayed on the monitor’s screen if there are abnormalities during measurement. -
Page 19: Warranty
Low Battery Replace all the batteries at once WARRANTY The eHealthyNet Body Fat Analyzer is warranted to be free from defects in materials and workmanship within two year from the date of purchase when used in accor- dance with the provided instructions. The Warranty ex- tends only to the end user. -
Page 20: Explanation Of Symbol
EXPLANATION OF SYMBOL Symbol for “WARNING” Symbol for “TYPE B APPLIED PART” Symbol for “ENVIRONMENTAL PROTECTION” Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. Symbol for “THE OPERATION GUIDE MUST BE READ”...
