PROFESSIONAL MOVING HEAD USER MANUAL
Classe LWB 12
KEEP THIS MANUAL FOR FUTURE NEEDS

Advertisement

Table of Contents
loading

Summary of Contents for red lighting Classe LWB 12

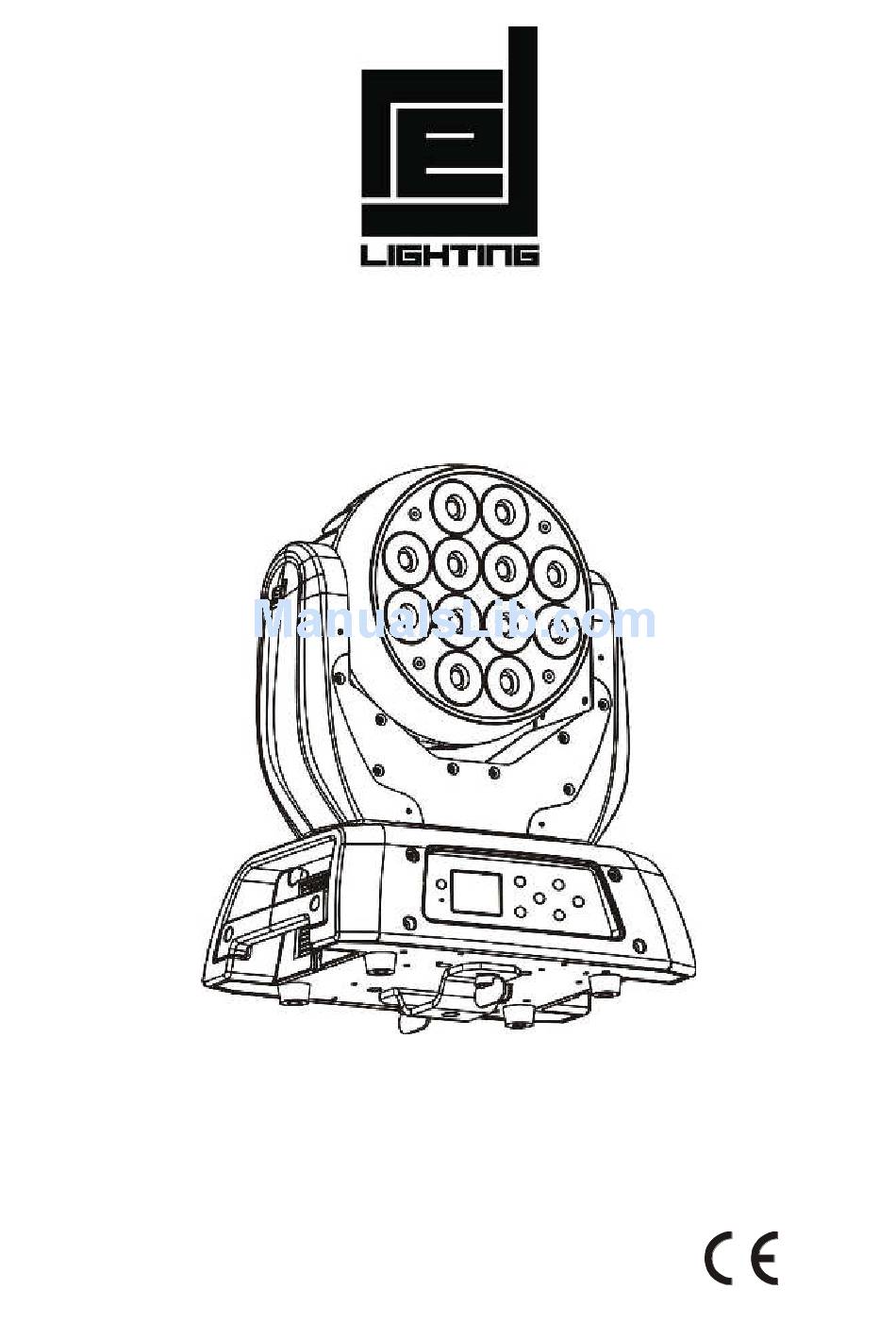

  • Page 1 PROFESSIONAL MOVING HEAD USER MANUAL Classe LWB 12 KEEP THIS MANUAL FOR FUTURE NEEDS...

  • Page 2: Table Of Contents

    Contents 1. Features ................................1 2. Fixture Overview ............................. 2 3. SAFETY INSTRUCTIONS ..........................2 3.1) Important safety warns ........................2 3.2) GENERAL GUIDELINES ........................3 4. INSTALLATION INSTRUCTIONS ......................4 4.1) Mounting the device ..........................4 5. DMX-512 control connection .......................... 8 6.

  • Page 3: Features

    Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install , operate, and maintain the lighting safety and correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly.

  • Page 4: Fixture Overview

    2. Fixture Overview 1: Lens 2: DC Switch 3: Microphone 4: Display 5: Mode/Esc-button 6: ENTER-button 7: Left-button 8: Down-button 9: Up-button 10: Right-button 11: Power switch 12: Fuse 13: Power in 14: Power out 15: 3-Pin DMX out 16: 3-Pin DMX in 3.

  • Page 5: General Guidelines

    This device falls under protection-class I. Therefore it is essential that the device be earthed. If protection screen, lens or ultraviolet screen in the fixture is apparently damaged or is damaged to exceed their own effective degree, such as cracked and gashed, it must be replaced. The electric connection must carry out by qualified person.

  • Page 6: Installation Instructions

    If you use the quick lock cam in hanging up the fixture, please make sure the quick lock fasteners turned in the quick lock holes correctly. Operate the device only after having familiarized with its functions. Do not permit operation by persons not qualified for operating the device.
  • Page 7 Before mounting make sure that the installation area can hold a minimum point load of 10 times the device’s weight. Connect the fixture to the mains with the power plug. Installation via the Omega holders a) Fixed the clamp on the bracket by tighten up the M12 screw on the bracket to the Ф13 hole in the middle of the bracket.
  • Page 8 Dimensional Drawings:...
  • Page 9 Layout Drawings: Mounting points Be sure this fixture is kept at least 0.2m away from any flammable materials (decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails. Overhead mounting requires extensive experience, including amongst others calculating working load limits, a fine knowledge of the installation material being used, and periodic safety inspection of all installation material and the fixture.

  • Page 10: Dmx-512 Control Connection

    5. DMX-512 control connection Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors.

  • Page 11: Projector Dmx Start Address Selection

    7. Projector DMX start address selection All fixtures should be given a DMX starting address when using a DMX signal, so that the correct fixture responds to the correct control signals. This digital starting address is the channel number from which the fixture starts to “listen” to the digital control information sent out from the DMX controller.
  • Page 12 Set Dmx Address A001~AXXX DMX address setting ALL…… Dmx Value DMX value display Slave Mode Slave1,Slave2,Slave3 Slave setting Auto Program Master / Alone Auto program Sound Control Master / Alone Music control Current Time XXXX(Hours) Power on running time Total Run Time XXXX(Hours) Fixture running time Time Information.

  • Page 13: Function

    Standard Mode Basic Mode User’s mode Extended Mode change User Mode User Mode A channel numbers User Mode B User Mode C Edit User ModeA Max Channel = XX Edit User ModeB PAN = CH01 Preset User modes Edit User ModeC Prog.

  • Page 14: Auto Program

    8.1.4 Auto Program With this function, you can run the internal program. You can select the desired program under “Select program”. You can set the number of steps under “Edit program”. You can edit the individual scenes under “Edit scenes”. With this function, you can run the individual scenes either automatically, i.e.

  • Page 15: Temperature Info

    Last Run Time With this function, you can display last the running time of the lamp. The display shows “XXXX”, “XXXX” stands for the number of hours 1. Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until Information is displayed. Press ENTER, the display will show Information .

  • Page 16: Software Ver

    8.2.3 Software Ver With this function, you can display the software version of the device. 1. Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until Information is displayed. Press ENTER, the display will show Information . 2. Press <Up/Down>, the display will show Software Ver .
  • Page 17 Tilt Reverse With this function you can reverse the Tilt-movement. 1. Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until Personality is displayed. Press ENTER, the display will show Personality . Tap the <Up/Down>button until the display will show Status settings . Press ENTER, the display will show Status settings .

  • Page 18: Service Setting

    1. Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until Personality is displayed. Press ENTER, the display will show Personality . Tap the <Up/Down>button until the display will show Status settings . Press ENTER, the display will show Status settings . 2.

  • Page 19: Fans Control

    RDM ready and conventional DMX devices can be operated in one DMX line. The RDM protocol sends own packages in the DMX512 data feed and does not influence conventional devices. If DMX splitters are used and RDM control is to be used, these splitters must support RDM. The number and type of RDM parameters depend on the RDM controller being used.

  • Page 20: Temperature C/F

    Disp Flash With this function you can the entire display to be flipped by 180˚ to allow for better view when the fixture is hung from truss or a ceiling. This function is disabled as default. 1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until Personality is displayed.

  • Page 21: Effect Adjust

    8.5 Effect Adjust 8.5.1 Test channel With this function you can test each channel on its (correct) function. 1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until Effect Adjust is displayed. Press ENTER, the display will show Effect Adjust . 2．Press <Up/Down>, the display will show Test Channel .

  • Page 22: Edit Pro

    8.7 Edit programs 8.7.1 Select programs With this function, you can select the program for the Program Run. 8.7.2 Edit program With this function, you can edit the internal programs. 8.7.3 Edit scenes With this function, you can edit the scenes of the internal programs. 8.7.4 Rec.
  • Page 23 3. Program selection for Auto Pro Part • Select “Edit program” by turning the encoder. • Press the Enter button to confirm. • Select “Select programs” by turning the encoder. • Press the Enter button to confirm. • Turn the encoder to select “Auto Pro Part 1”, “Auto Pro Part 2” or “Auto Pro Part 3”, and thus select which Slave program is to be sent.

  • Page 24: Instructions On Use

    9. INSTRUCTIONS ON USE DMX channel´s functions and their values (21DMX channels): Mode/Channel Value Function PAN Movement 8bit : 0-255 Pan Movement Pan Fine 16bit 0-255 Fine control of Pan movement TILT Movement 8bit : 0-255 Tilt Movement Tilt Fine 16bit 0-255 Fine control of Tilt movement Speed Pan/Tilt movement:...
  • Page 25 0-255 Green ( 0-Black , 255-100% Green ) Blue LED -array 3 : 0-255 Blue ( 0-Black , 255-100% Blue ) White LED -array 3 : 0-255 White ( 0-Black , 255-100% White ) Shutter, strobe: 0-31 Led trun off 32-63 Led turn on 64-95...

  • Page 26: Prefabrication

    161-190 Chase 6 191-220 Chase 7 221-255 Chase 8 Chase Speed: 0-255 Fast to Slow Reset, internal programs: 0-79 Normal 80-84 All motor reset 85-87 no function 88-90 no function 91-93 Store white balance enabled 94-96 no function 97-99 no function 100-119 Internal program 1 (secne1~8 of EEPROM) 120-139...

  • Page 27: Install Frost Filter

    10.2 Install frost filter four Only fix screws like the followings when install frost filter. 11. ERROR MESSAGE When you turn on the fixture, it will make a reset at first. The display may show“Err channel is XX” while there are problems with one or more channels. “XX” stands for channel 1, 2, 3, 4, 5, 6 who has the testing sensor for positioning.

  • Page 28: Cleaning And Maintenance

    12. CLEANING AND MAINTENANCE The following points have to be considered during the inspection: 1) All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded. 2) There must not be any deformations on the housing, color lenses, fixations and installation spots (ceiling, suspension, trussing).
