Summary of Contents for MOOSE C605DP

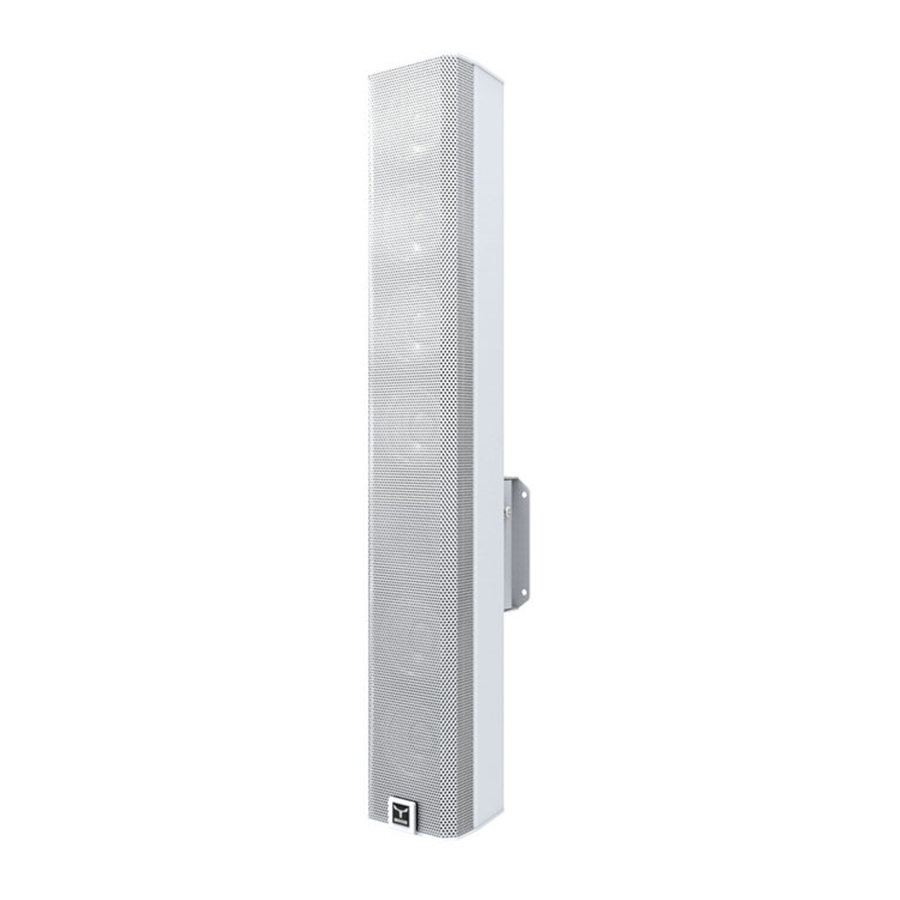

- Page 1 PROUDLY DEVELOPED AND MANUFACTURED IN PORTUGAL www.moosesound.com C605DP / C1205DP Active column PA speaker Integrated DSP USER’S MANUAL MAN174_0...
- Page 2 Dear customer, Thank you for choosing MOOSE branded products! MOOSE is a brand of professional audio & lighting products, proudly developed and manufactured in PORTUGAL. In order to operate this product in a safe and reliable manner, please follow the instructions in this booklet and before operating the equipment read the instructions carefully and please note the technical information.
-
Page 3: Manufacturer's Declaration
To prevent unneeded devices from consuming power in standby mode, disconnect the mains plug. EC DECLARATION OF CONFORMITY The equipment marketed by MOOSE complies (where applicable) with the essential requirements and other relevant specifications of Directives 1999/5/EC (R&TTE), 2004/108/EC (EMC) und 2006/95/EC (LVD). Additional information can be requested to info@profactor.pt. -
Page 4: Connections And Controls
C804DP connection of another passive C605DP or C1205DP, 100W and Min. load: 8Ohm. There is an ‘’extra’’ amplifier inside capable of driving another passive version of the C605DP or 3 Way Digital Active System 3 Way Digital Active System Digital Amplifier - Class D Digital Amplifier - Class D C1205DP speaker. -
Page 5: Software Instructions
C605DP/C1205DP Active column speaker, DSP Software instructions All parameters related to the built-in DSP can be controlled and adjusted by the software supplied in the package. First take the mini CD and install correctly the software following the instructions. Please make sure that you will use WINDOWS XP or any previous version of Windows. - Page 6 C605DP/C1205DP Active column speaker, DSP Software instructions 4. Save a new program After making all adjustments, you must save the new program to the PC and then upload and save it on the DSP memory. To do this: Go to menu FILE - MEMORY and the press SAVE 2.
-
Page 7: Technical Specifications
C605DP/C1205DP Active column speaker, DSP Technical specifications MODEL C605DP C1205DP TYPE Full range active column speaker ENCLOSURE DESIGN Trapezoidal POWER OUTPUT (RMS) 150W + 50W + 100W FREQUENCY RANGE 90Hz - 18kHz NOMINAL IMPEDANCE 4 Ohm TRANSDUCER TYPE 6x 5" MF + 1" HF 12x 5"... - Page 8 C605DP/C1205DP Active column speaker, DSP FIGURE 1 SCALE 1:1 www.moosesound.com MAN174_0...
- Page 9 PROUDLY DEVELOPED AND MANUFACTURED IN PORTUGAL MOOSE is a brand or PROFACTOR S.A. PROFACTOR S.A Rua do Padrão 52 4440-617 Valongo PORTUGAL Telf.: +351 224 119 160 Fax: +351 224 155 822 info@profactor.pt www.moosesound.com...
