- Page 1 OPERATION AND MAINTENANCE MANUAL Multi-function soldering gun Art. 0443 TRANSLATION OF THE ORIGINAL INSTRUCTIONS...
- Page 2 Manual on the date of issue, listed on this page; however, the product may be subject to potentially major technical changes in the future, without the Manual being updated. Therefore, contact FERVI for information about modifications that may have been implemented. REV. 2...
-
Page 3: Table Of Contents
HARDWARE CONTENTS PRECAUTIONS WITH REGARD TO ELECTRIC SHOCKS........ 4 Technical Assistance .....................4 DESCRIPTION OF THE SOLDERING GUN AND INTENDED USE ....5 Technical specifications ....................6 Identification plate .......................6 IMPROPER USE AND CONTRAINDICATIONS..........7 HOW TO USE ..................... 8 Switching on and off .....................8 Using the soldering gun ....................8 MAINTENANCE AND CLEANING .............. -
Page 4: Precautions With Regard To Electric Shocks
HARDWARE 1 PRECAUTIONS WITH REGARD ELECTRIC SHOCKS Risks associated with electric shocks Check that the power plug is disconnected before touching live parts. Make sure the power supply complies with the machine's required voltage and frequency requirements. DO NOT use different types of power supplies. -
Page 5: Description Of The Soldering Gun And Intended Use

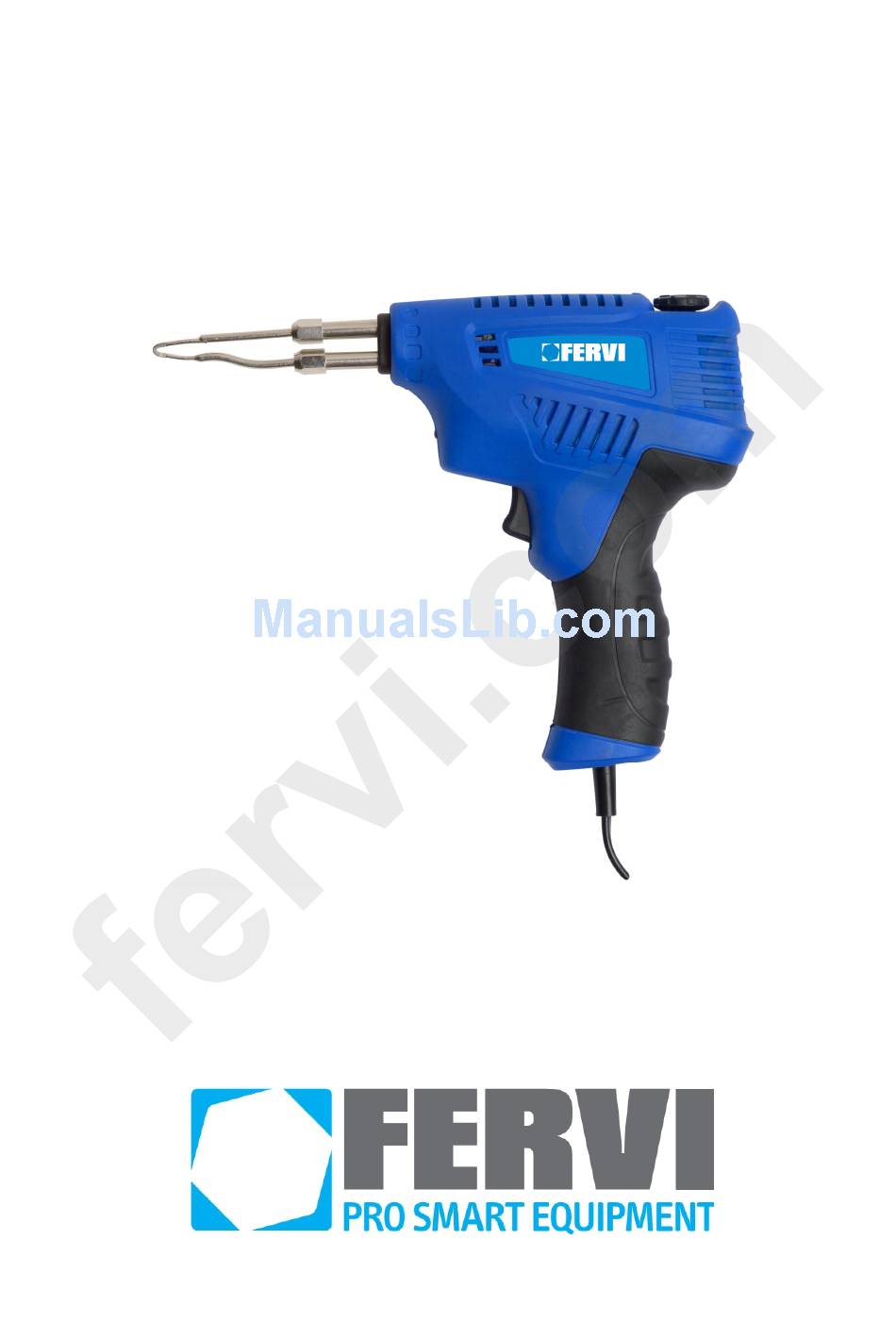

2 DESCRIPTION OF THE SOLDERING GUN AND INTENDED USE The Multifunction soldering gun (Art. 0443) is an device for soldering electronic circuits with tin wire. Given the possibility to modulate the operating temperature, the device can also be used for pyrography, and the welding or cutting of plastic parts. -
Page 6: Technical Specifications
HARDWARE 2.1 Technical specifications Power voltage (V) / frequency (Hz) 230 AC / 50 Maximum power (W) 200W Protection class Range A: 70-200 Range B: 200-350 Soldering temperature (°C) Range C: 350-500 2.2 Identification plate Figure 2 – Identification plate Page 6 of 10... -
Page 7: Improper Use And Contraindications
HARDWARE 3 IMPROPER USE AND CONTRAINDICATIONS THE FOLLOWING IS STRICTLY PROHIBITED! Using the device on a surface that is unstable or that is susceptible to being damaged by heat or is easily flammable; Resting the soldering gun in such a way that the tip touches or is close to a heat- sensitive surface;... -
Page 8: How To Use
HARDWARE 4 HOW TO USE 4.1 Switching on and off Switching on and off is achieved by inserting (and removing) the plug into/from a mains socket 230 V / 50 Hz. To remove the plug, hold it by the body and never pull the cord (see Figure 3). -
Page 9: Maintenance And Cleaning
HARDWARE 5 MAINTENANCE AND CLEANING The purpose of this chapter is to provide all the information on maintenance procedures and the frequency required for the Multifunction soldering gun. Frequency INTERVENTION Daily Weekly 1. General visual inspection 2. General cleaning 3. Maintenance of the tip 1. -
Page 10: Exploded View And Spare Parts
6 EXPLODED VIEW AND SPARE PARTS Ref. Description Ref. Description 0443/01 Soldering tip 0443/09 Power cable 0443/02 Holding nut 0443/10 Cable inlet casing 0443/03 Spacer 0443/11 Cable end 0443/04 Transformer 0443/12 Temperature adjustment system board 0443/05 Temperature adjustment knob 0443/13 Bolt...
