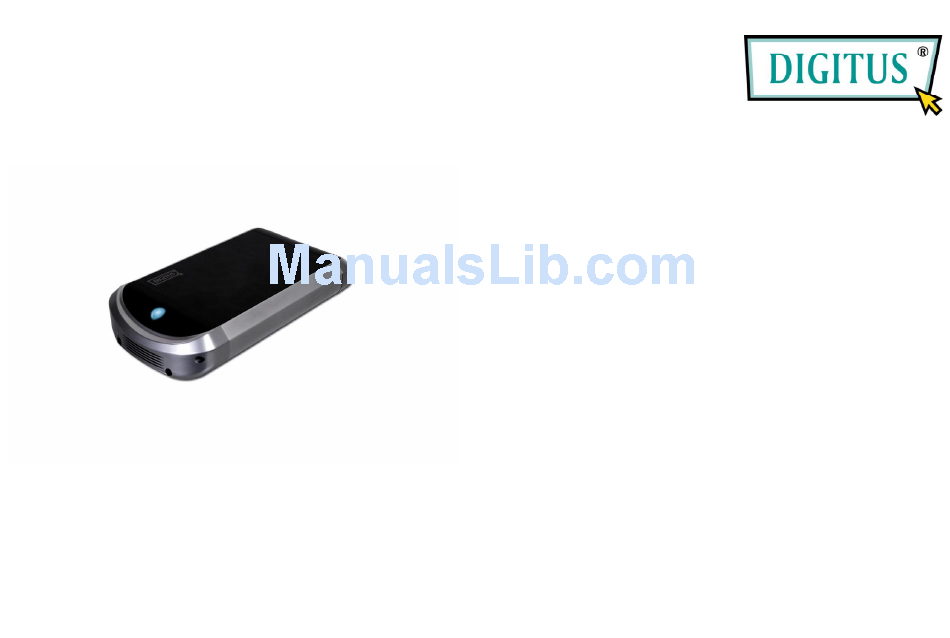

LAN and USB External
3,5" HDD Enclosure
CONTENT
1. Product Information......................................1
2. Product Specifications...................................2
3. System requirements.....................................3
4. Take a look to the Product............................ 4
5. Product Assemble Step..................................5
6. Product Connecting.......................................8
7. Driver Installation (USB2.0) .........................9
8. Verification.................................................13
User' s Manual
9. Configuring LANDISK..................................14
DA-70516
10. Note...........................................................23
Advertisement
Table of Contents
Related Manuals for Digitus DA-70516
Summary of Contents for Digitus DA-70516
-
Page 1: Table Of Contents
1. Product Information………………………….…..1 2. Product Specifications……………………….…….2 3. System requirements……………………….….…..3 4. Take a look to the Product………….….….…..4 5. Product Assemble Step…….……………………...5 6. Product Connecting…….……………………..…...8 7. Driver Installation (USB2.0) ………….….….….9 8. Verification…………………………….….…..….13 User’ s Manual 9. Configuring LANDISK………………………..…..14 DA-70516 10. Note…………….……………….……………………23... -
Page 2: Product Information
1. Product Information Product Specifications: • Personal Internet & Intranet Storage • Network Connection Method • Samba Server + FTP Server Available network environment, 100BASE-TX/10BASE-T, • No need to install any O.S, Virus free Connection type, RJ-45 • Low Cost and Simple Installation •... -
Page 3: System Requirements
FAT32 (4GB Max File Size) 3. System requirements 4. Take a look on the Product Windows 98SE / 2000 / XP: 1 System LED Pentium II 233MHz equivalent or higher 2 Link LED 64 MB RAM (128 MB recommended) 3 Power LED USB 1.1 Port (USB 2.0 recommended) 4 Working LED CD-ROM drive for installation (Win 98SE only) - Page 4 5. Ptep 3) Connect IDE cable and 4-pin power adapter cable on your 1) Take off the front panel, pull out the product module from hard drive. the housing. 4) Use the screws to fix it firmly. 2) Set your IDE hard drive as “ Master/Single” mode.
-
Page 5: Product Assemble Step
7) Product assemble step complete. 5) Close up the Product module from the housing. 6. Product Connecting 6) Use the bundled screws to screw it firmly. Top and bottom side (also screw it firmly) 1) Connecting USB2.0 IDE external enclosure to your computer. Screws... -
Page 6: Driver Installation (Usb2.0)
2) Connect LANDISK to your network. 2) When you see the following picture, please press “ Next” . 3) When you see the following picture, please check “ Search for the best driver for your device (Recommended)” and press “ Next” . 7. - Page 7 4) When you see the following picture, please locate the 6) When you see the following picture, please press folder “ AT2 Driver” included on the driver CD-ROM “ Finish” . shipped with this IDE external enclosure. 5) When you see the following picture, please press “ Next” . •...
-
Page 8: Verification
8. Verification 9. Configuring LANDISK Please track the path “ My computer→System • Checking TCP/IP Setting on PC Properties→Device Manager” and expand the item Bring up the properties of the “ My Network Places” (Windows “ Universal Serial Bus Controllers” , you should see the XP). - Page 9 4) The following screen will appear, select “ Internet Protocol • Using Web Control Utility (TCP/IP)” then click on the <Properties> button 1) Open your Web browser and type “ http://storage” into the URL address box and then press <Enter>. 2) The login pop-up dialog box will appear, please type the following default username and password: 5) Follow the step as below to configuring your TCP/IP settings.
- Page 10 3) Once you have logged in, the “ Status” Home screen will 4) You can select a function from the left side menu. appear. Host Name: Setting Up Your Own Host name Group Name: Setting Up Your Own Host name Administrator: Setting Up Your Password Date/Time: Setting Up Your Time zone Language: Setting Up Your Language...
- Page 11 6) Here you can set the IP configuration (Automatic IP or Static 7) Sharing Your Folders to LAN (IP Config) You will see all available folders for “ Network Share” listed in the IP) as below: “ Share List” box, just select your target folder and click on the “...
- Page 12 8) FTP Configurations 9) Maintenance Here you can set FTP functions, status and user’ s authority, Firmware Upload: Here you can update the new firmware for (FTP Server) your LANDISK. please check the image below. FTP Status: Enable / Disable FTP function and port setting System Reboot: Click Reboot to have the device perform a Allow anonymous: If you allow anonymous log-in the “...
-
Page 13: Note
10. Note: 1) If you are installing an old hard drive and want to keep all previous data, please make sure the file system on your hard drive is FAT32. LANDISK does not support any other file system than FAT32. Otherwise, you may need to re-format your old hard drive by LANDISK’...
