Trango Atlas5010 User Manual

Point-to-point wireless ethernet bridge
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Ffirm
Atlas5010™
Point-to-Point
Wireless Ethernet Bridge
USER MANUAL
June, 2007
Revision 3.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Atlas5010 and is the answer not in the manual?

Questions and answers

Summary of Contents for Trango Atlas5010

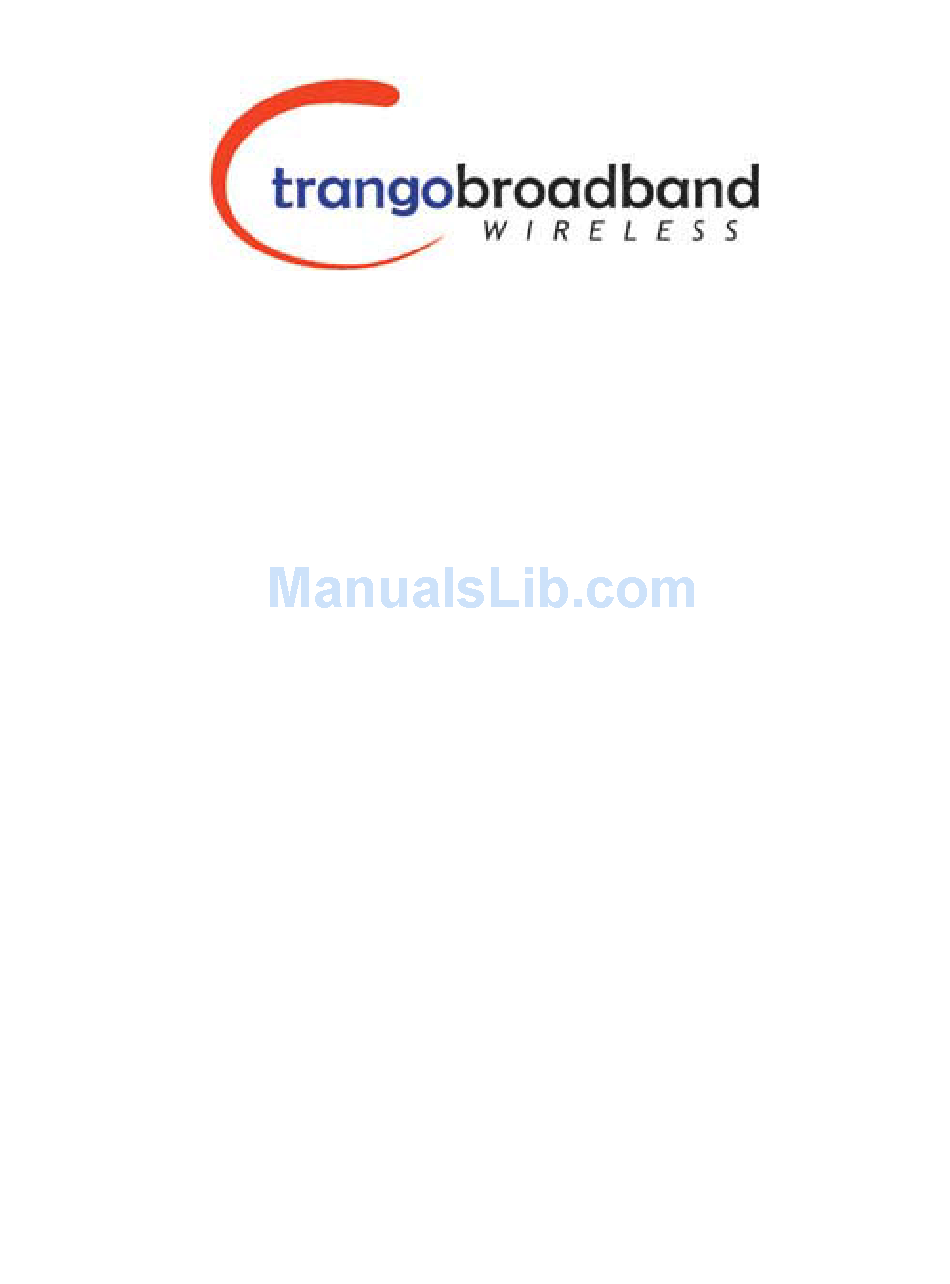

  • Page 1 Ffirm Atlas5010™ Point-to-Point Wireless Ethernet Bridge USER MANUAL June, 2007 Revision 3.0...

  • Page 2: Table Of Contents

    Connecting External Antenna on EXT Model ............. 29 Cat-5 Cabling Considerations ................... 30 Weatherizing......................30 Chapter 5 SNMP ..............................31 Atlas SNMP Support ....................31 Chapter 6 Firmware Upgrade Procedure ......................32 Firmware File Names ....................32 Firmware Upgrade Password ................... 32 Trango Broadband Wireless — Atlas-45 page ii...
  • Page 3 Appendix B Specifications..........................43 RF Parameters......................43 Channels of Operation .................... 43 Data Parameters..................... 44 Regulatory Compliance ................... 44 Mechanical ......................44 Environmental ......................44 Power Parameters ....................44 Power Supply ......................44 Antennas........................ 45 Trango Broadband Wireless — Atlas-45 page iii...

  • Page 4: Preface

    Preface FCC Information Preface This manual covers the basic configuration and installation of the Atlas5010 Wireless Point to Point Broadband System, and applies to the following radio part numbers: P5010M-INT Unit with internal patch antenna P5010M-EXT Unit with external antenna connectors The Atlas5010-INT consists of two P5010M-INT radios which have internal 23 dBi antennas.

  • Page 5: Contact Information

    Preface Contact Information Contact Information Corporate Headquarters Trango Broadband Wireless, a division of Trango Systems, Inc. 15070 Avenue of Science Suite 200 San Diego, CA 92128 USA Web Sites www.trangobroadband.com www.trangosys.com Sales Inquiries email: sales@trangobroadband.com Telephone: 1-858-653-3900 Technical Support email: techsupport@trangobroadband.com...

  • Page 6: Chapter 1 Overview

    The Atlas5010 is a point-to-point (PtP) wireless Ethernet transmission system which provides network connectivity at speeds up to 45 Mbps depending on the transmission distance and noise floor. The Atlas5010 utilizes OFDM technology and is designed for use in long range backhaul and wide area data networking applications.

  • Page 7: Range Vs. Throughput

    (24 db fade margin) (20 db fade margin) (22 db fade margin) External 34 dBi 45 Mbps 32 Mbps 30 Mbps 4’ Dish (30 db fade margin) (20 db fade margin) (15 db fade margin) Trango Broadband Wireless — Atlas5010 page 7...

  • Page 8: System Contents

    Atlas5010-EXT Connectorized radios (part numbers P5010-EXT) Each Atlas5010 kit consists of two radios, two power-over-Ethernet (PoE) injectors, two AC adapters, port covers, and mounting hardware. A dual-polarized integrated antenna is located behind the radome of the P5010M-INT. 2X Radio w/ Internal Antenna...

  • Page 9: Location Of Serial Number & Mac Address

    The reset button does not reset any other parameters other than IP configuration and password. Typically a user would only press the reset button when the IP configuration or password in unknown. Reset button must be held down for approximately 10 seconds. IP Reset Button Trango Broadband Wireless — Atlas5010 page 9...

  • Page 10: Chapter 2 Getting Started

    You are now ready to configure the radio via the Ethernet port. After reboot, the Radio Power LED may take several seconds before lighting. The radio requires approximately 45 seconds to completely start up. Trango Broadband Wireless — Atlas5010 page 10...

  • Page 11: Configuration Tools

    Configuration Tools Configuration Tools Atlas5010 radios can be configured using either the Command Line Interface (CLI), or the Web Browser (HTTP) interface. The CLI method provides slightly more functionality. This text covers configuration through the CLI. For HTTP configuration please see Appendix A.

  • Page 12: Troubleshooting Ethernet Connections

    Area code information denotes which channels and power limits are available based on region code of the radio. Area code is set by the factory and can not be altered by the user. ARQ status, encryption, Auto-rate shift, remarks, and LED RSSI function Ethernet TX/RX statistics. Trango Broadband Wireless — Atlas5010 page 12...
  • Page 13 [Tx MIR] 50000 Kbps [ARQ] on [Encrypt] off [Key] 0011 2233 4455 6677 8899 AABB CCDD EEFF [Auto Rate Shift] on [RSSI LED] on [Remarks] Remarks ********************************* 6 ********************************* [Eth Config] ANEG [Eth Status] 100 FDX Trango Broadband Wireless — Atlas5010 page 13...
  • Page 14 MAC Address of remote radio [Status] Connection status of remote radio (connected or disconnected) [RSSI] Measured signal strength from remote radio (dBm) [Peer IP Config] Remote radio’s IP subnet, and default Gateway configuration Trango Broadband Wireless — Atlas5010 page 14...
  • Page 15 [RF Rx] Counter for Ethernet packets which entered via the wireless link [RF Tx] Counter for Ethernet packets which exited via the wireless link [ARQ Retransmission] Counter for Ethernet packets which have been retransmitted Trango Broadband Wireless — Atlas5010 page 15...

  • Page 16: Chapter 3 Configuration

    Start a telnet session with one of the radios. Follow these steps for configuration. 1. Set the Unit Type (utype) to MU in one radio. (default for all radios is RU) #> utype mu Success. #> Trango Broadband Wireless — Atlas5010 page 16...

  • Page 17: Remote Unit Configuration

    To determine if the two radios are connected, type the sysinfo 2 command. Example: #> sysinfo 2 ********************************* 2 ********************************* [Radio Temp] 32 C [PoE Voltage] 14.2 V [Opmode] on [Default Opmode] on [Active Channel] 20 v [Freq] 5755 MHz Trango Broadband Wireless — Atlas5010 page 17...

  • Page 18: Changing Ip Address

    Yellow LED 4 : Begins blinking when RSSI is greater or equal to –60 dBm. On continuously at –55 dBm. This is the rightmost LED. If no VALID MU or RU signal is detected the LEDs will not be on at all. Trango Broadband Wireless — Atlas5010 page 18...

  • Page 19: Rf Link Loopback Test (Linktest Command)

    In this example the linktest was run at 24 Mbps at each end of the link. The results indicated 10 cycles of 1000 packets were transmitted and received from each end of the link without error. Actual achievable throughput is measured at 22 Mbps. Trango Broadband Wireless — Atlas5010 page 19...

  • Page 20: Link Speed & Power Settings

    After scanning all available frequencies in channel plan, the radio will select the channel based on the strongest average RSSI for receiving packets. • If no channel is selected after completing the cycle, the process will start again. Example: #> autoscanmu on Success. #> Trango Broadband Wireless — Atlas5010 page 20...

  • Page 21: Automatic Rate Shifting Feature Description

    MU and RU. Users can expect faster payload speeds with encryption turned off as compared to with encryption turned on. Example: #> encrypt on Success. #> encrypt key 1111 2222 3333 4444 5555 6666 7777 8888 argc = 10 Success. #> Trango Broadband Wireless — Atlas5010 page 21...

  • Page 22: Mir Feature Description

    If left wide open, the system will respond to bandwidth demand as needed, allowing the full bandwidth of the channel to be used by either direction. Example: #> mir 10000 Success. #> Trango Broadband Wireless — Atlas5010 page 22...

  • Page 23: Command Reference Listing

    Afterwards RU will change to that channel with max power. • If no channel is selected after finishing scan cycle, RU will initiate auto scan cycle again after 10 seconds. Trango Broadband Wireless — Atlas5010 page 23...
  • Page 24 Display noise floor for current channel . <sec> = period 10..3600 default = 10 survey <sec> all Display noise floor for all available channels. survey <sec> [<ch#> [..]] Display noise floor for selected channels. sysinfo Display all system information. Trango Broadband Wireless — Atlas5010 page 24...
  • Page 25 4: region code and power limitations part 5: switch settings and remarks part 6: statistics syslog Display system log. tftpd [on|off] Enable or disable tftpd (used for firmware upgrades). utype [mu|ru] Set or display unit type. Trango Broadband Wireless — Atlas5010 page 25...

  • Page 26: Chapter 4 Deployment & Installation

    -68 / -98 n/a / n/a Ch 21 v -74 / -98 n/a / n/a Ch 22 h 5795 : -87 / -98 n/a / n/a Ch 22 v -96 / -98 n/a / n/a Trango Broadband Wireless — Atlas5010 page 26...

  • Page 27: Channel Planning

    -68 dB Connected 10> MU -67 dB -67 dB Connected Success. Users can also view the RSSI LEDs on the bottom of the radio. See the configuration section of this manual for more information. Trango Broadband Wireless — Atlas5010 page 27...

  • Page 28: Port Plug And Port Plate (Hardware)

    Mounting Hardware Radios are supplied with mounting hardware for pole installations. See diagram below for proper use of the mounting hardware. 8.50 MAX 10.00° UPTILT 25.00° DOWNTILT Mounting Hardware Assembly for Integrated Antenna P5010-INT Trango Broadband Wireless — Atlas5010 page 28...

  • Page 29: Connecting External Antenna On Ext Model

    If the radio is not earth-grounded via the mounting bracket, you must attach a grounding wire to the grounding stud on the radio as in the adjacent diagram. Grounding Wire Trango Broadband Wireless — Atlas5010 page 29...

  • Page 30: Cat-5 Cabling Considerations

    Important! The Power-over-Ethernet injector is not a weatherized device and must be located either indoors or in a weather-protected cabinet. Trango Broadband Wireless — Atlas5010 page 30...

  • Page 31: Chapter 5 Snmp

    Link and Association monitoring and Alarms. Besides this proprietary Management Information Base (MIB) the Atlas also supports a large part of the MIB-II OIDs. Review the Trango MIB (TRANGO-P5M-MIB.mib) available on our website for the complete listing of all MIB objects available.

  • Page 32: Chapter 6 Firmware Upgrade Procedure

    Firmware File Names Chapter 6 Firmware Upgrade Procedure Trango Broadband Wireless will from time to time release firmware upgrades for the Atlas series radios. The latest released firmware can be downloaded from http://www.trangobroadband.com/support/downloads.htm. Firmware releases consists of two files: Main image firmware and Web (HTTP interface) firmware.

  • Page 33: Example 1 Upgrade Main Image Firmware To 1.0A6

    Firmware Upgrade Procedure Example 1 Upgrade main image firmware to 1.0a6 Example 1 Upgrade main image firmware to 1.0a6 FROM RADIO TELNET SESSION Welcome to Trango Broadband Wireless, Atlas PtP-P5010M 3p0r1D07061901 Password: Login as read/write. #> tftpd on Success. #>...

  • Page 34: Appendix A Using The Http Interface

    Open a browser session and type in the IP address of one of the radios. Default IP address is 192.168.100.100. Leave the User name field blank and enter read write or read only Password. Press OK. Default password is trango.
  • Page 35 The main body of the System Information displays most of the key parameters. To alter these parameters use the Configuration page. To log off of the web browser interface, close the browser and the HTTP session will be automatically terminated. Trango Broadband Wireless — Atlas5010 page 35...
  • Page 36 See definition in Configuration section. Eth In: Counter for Ethernet packets which entered via the Ethernet port of the radio. Eth Out: Counter for Ethernet packets which exited via the Ethernet port of the radio. Trango Broadband Wireless — Atlas5010 page 36...
  • Page 37 Encrypt: . Encryption. Enables and disables proprietary 128 bit over-the-air encryption. Key: . 128 Encryption Key. Must match in both MU and RU. Activate Opmode On: Activates radio's Opmode to "On"-transmitting. Trango Broadband Wireless — Atlas5010 page 37...
  • Page 38 Appendix A Command Set Reference Activate Opmode Off: Activates radio's Opmode to "Off" not-transmitting. Reboot: Reboot the unit. Close All Telnet Sessions: Close all the active telnet sessions. Configuration Screen Trango Broadband Wireless — Atlas5010 page 38...

  • Page 39: Configuration Screen - Minimum Required Settings To Establish A Wireless Link

    MU and RU. Connection status can also be viewed in the left-hand margin portion of all HTTP screens. Signal strength (RSSI) received from the peer radio is also provided on this screen. Trango Broadband Wireless — Atlas5010 page 39...

  • Page 40: Connection Status

    Appendix A Command Set Reference Connection Status Trango Broadband Wireless — Atlas5010 page 40...
  • Page 41 (5735 – 5835 MHz) is higher and ranges from –58 dBm (at 5735 Mhz) to –90 dBm (at frequency 5775 MHz. In this example, channel 19 is the noisiest and should be avoided. Trango Broadband Wireless — Atlas5010 page 41...

  • Page 42: Link Control

    To run a link loopback test, both radios must be in Opmode ON and status “Connected” In this example, the error rate was 2 packets from MU to RU and 0 packets from RU to MU. Measured aggregate bandwidth is 10.93 Mbps. Trango Broadband Wireless — Atlas5010 page 42...

  • Page 43: Appendix B Specifications

    Channel 19: 5.735 GHz -Band 4 Channel 20: 5.755 GHz -Band 4 Channel 21: 5.775 GHz -Band 4 Channel 22: 5.795 GHz -Band 4 Channel 23: 5.815 GHz -Band 4 Channel 24: 5.835 GHz -Band 4 Trango Broadband Wireless — Atlas5010 page 43...

  • Page 44: Data Parameters

    FCC Class B, VCC-II, CE Input: 90 – 255 VAC Plug Type: Includes 4 plug blades for to allow use in US, Europe, UK and Australia Output: 24 VDC +/- 1 V Max current: 750 mA Trango Broadband Wireless — Atlas5010 page 44...

  • Page 45: Antennas

    -40 deg F to +160 deg F (-40 deg C to +60 deg C) Wind speed operational: 100 mph (160 km/hr) Wind speed survival : 140 mph (220 km/hr) FCC Certified External Antennae (for Atlas5010-EXT) Radiowaves models: SPD4-5.2, SPD3-5.2, SPD2-5.2, SPD1-5.2 See Radiowaves, Inc. website for specifications and details.
