Summary of Contents for AirRaid Audio Elements: Distort

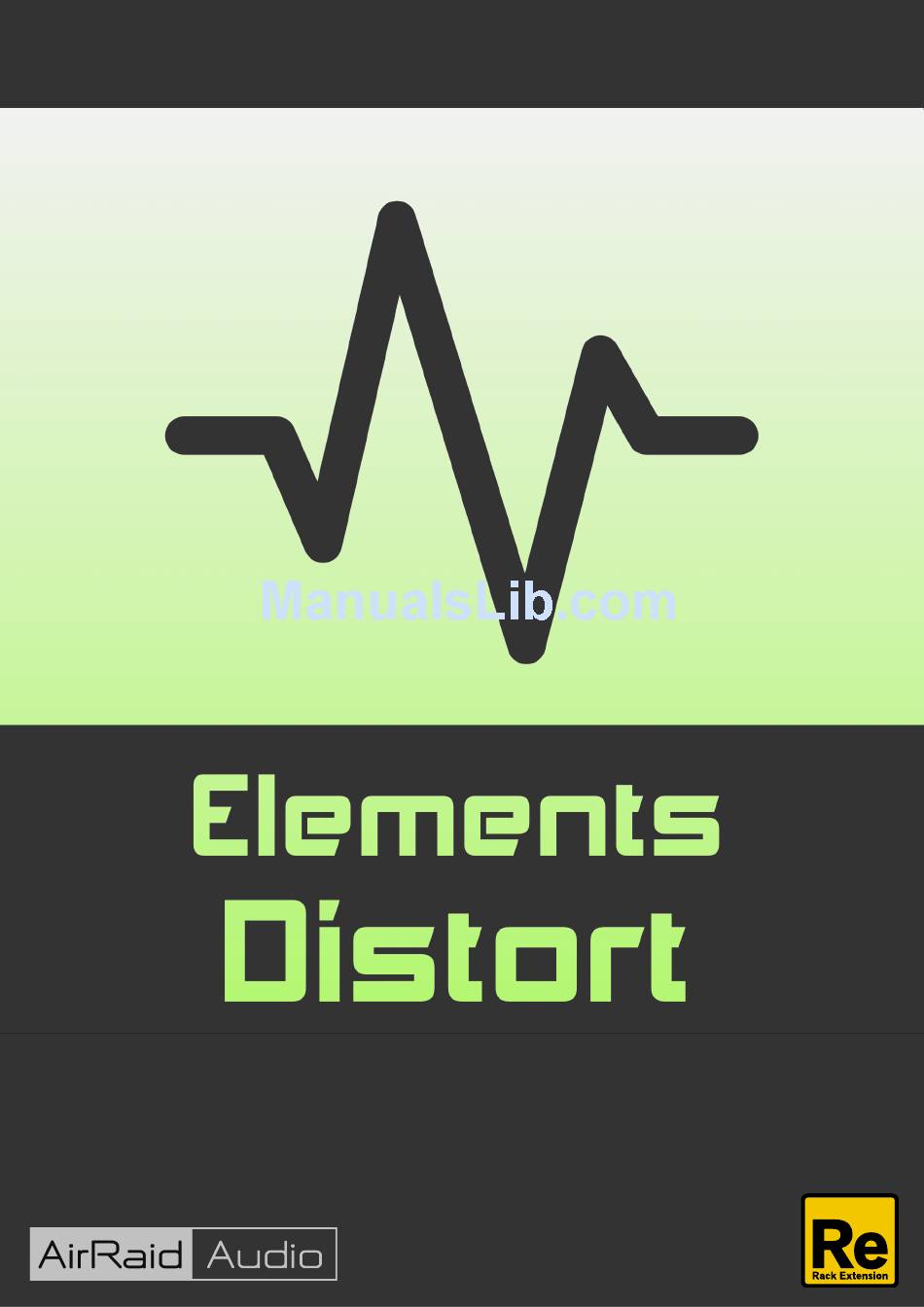

- Page 1 [ OPERATION MANUAL ] Updated: 09/12/15...
-
Page 2: Welcome
Elements: Distort Welcome! Thank you for purchasing Elements: Distort. Distort is a versatile, warm-sounding stereo EQ and distortion effect, which integrates seamlessly into our Elements modular series. It combines a freely assignable envelope follower with a parabolic EQ and waveshaper section, complete with 9 unique distortion types. -
Page 3: Table Of Contents
Elements: Distort Contents Welcome! Loading and saving patches Controls and displays Env Follower Pre-EQ Waveshaper Distortion Types Global Rear Panel Loading and saving patches Loading and saving patches in Chorus is done in the same way as with any other Reason device. -
Page 4: Pre-Eq
Elements: Distort Amp — Controls the amount of envelope modulation applied to the destinations specified by the individual Envelope Mod Target toggle buttons. Attack — Controls the attack of the envelope. Higher settings result in a slower attack, whereas lower settings are much faster. -
Page 5: Waveshaper
Elements: Distort WAVESHAPER Drive — Acts as a pre-amp, in that it boosts the volume level of the input signal before the distortion algorithm is applied to the signal. Distortion Type — Toggles between the 6 different distortion types. DISTORTION TYPES Hard Clip —... -
Page 6: Global
Elements: Distort GLOBAL Mix — Controls the dry/wet mix of the device. Vol — Controls the volume level of the device’s output, allowing you to either attenuate it or boost it by up to 6 decibels. REAR PANEL As with most other devices in our Elements series, Distort offers two distinct types of CV modulation—mono or stereo—depending on the parameter in question.
