Quick Start Guide

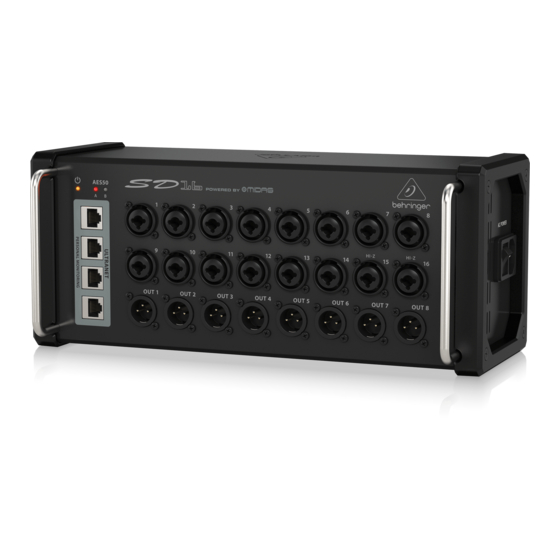

DIGITAL SNAKE SD16/SD8
I/O Stage Box with 16/8 Remote-Controllable
MIDAS Preamps, 8 Outputs, AES50 Networking and
ULTRANET Personal Monitoring Hub
