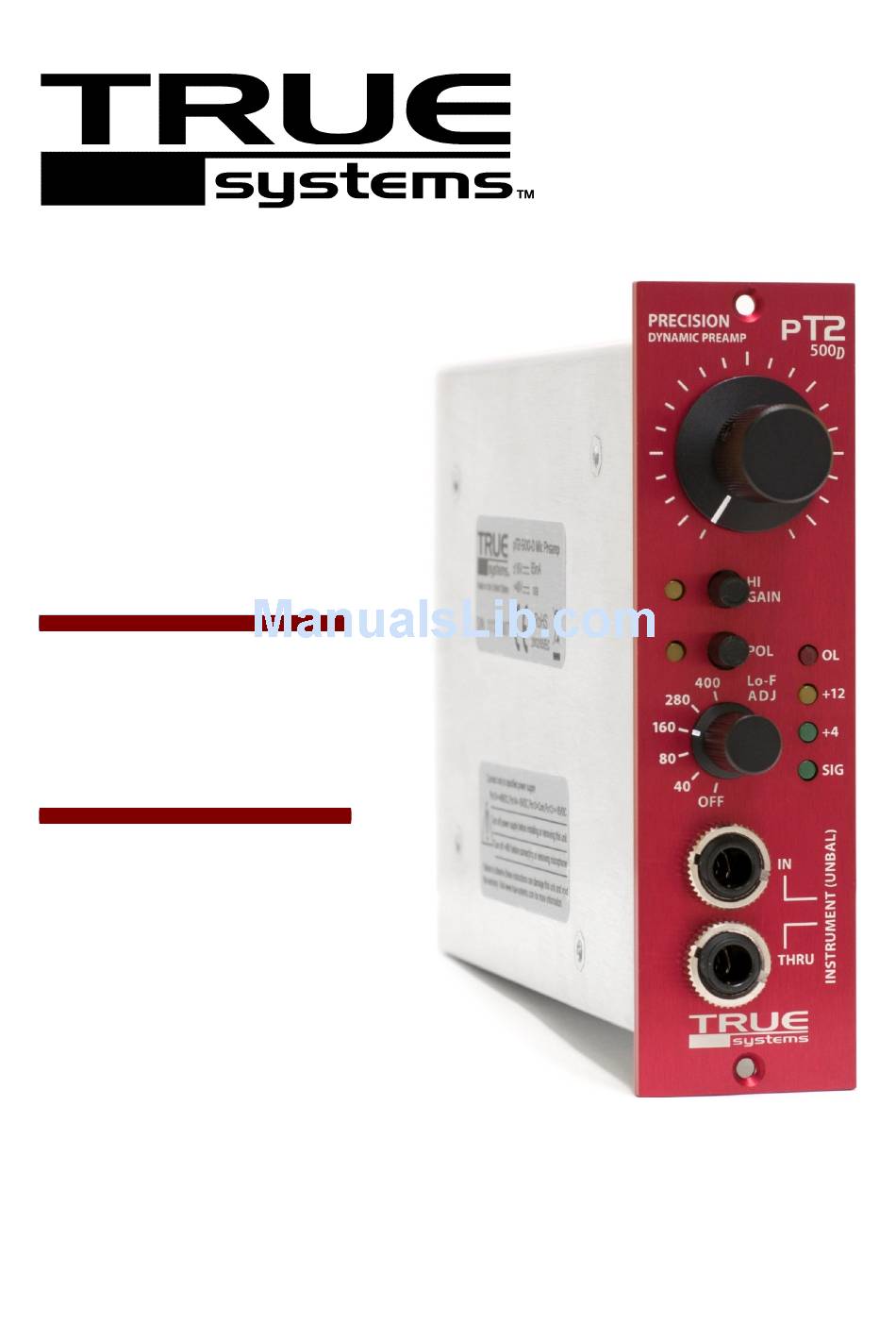

Page 1: Operation Manual
PRECISION DYNAMIC MICROPHONE PREAMPLIFIER with Direct Input and Low-Frequency Adjust Control 500 series compatible module OPERATION MANUAL Version 1.0... -
Page 2: Certifications
Design Inc., 1630 S. Research Loop, Suite 150, Tucson, Arizona 85710, U.S.A RoHS Certificate of Compliance This is to certify that the True Systems pT2-500D is RoHS compliant and meet the requirements and specified limits of restricted substances according 2002/95/EC directive. -
Page 3: Safety And Operating Precautions
• Do not use a damaged or excessively worn cord to connect the equipment to AC power. CAUTIONS: • Severe damage to pT2-500D will occur if incorrect power supply voltages are applied to the card edge connector. Please consult the “CONNECTIONS” section in this manual for proper power supply specifications/connections. -
Page 4: Table Of Contents
Microphone Preamplifier OPERATION MANUAL CONTENTS CERTIFICATIONS…………………………………………………………... RoHS WEEE SAFETY and OPERATING PRECAUTIONS……………………………. TABLE of CONTENTS……………………………………………………... PRODUCT OVERVIEW…………………………………………………….. New Type 2 Circuit Design Features INSTALLATION……………………………………………………………... Unpacking Card Rack Installation Card Edge Connections Ventilation OPERATION…………………………………………………………………. Connections Output Microphone Input Instrument Input and Thru (DI)………………………………………………….. -
Page 5: Product Overview
Microphone Preamplifier OPERATION MANUAL PRODUCT OVERVIEW Thanks for using our product! We appreciate the confidence you place in TRUE Systems by purchasing the microphone preamplifier/instrument DI. We pT2-500D design our products to deliver stunning musical accuracy, uniquely useful features, exceptional value, and reliability. -
Page 6: Installation
1. Turn off card rack AC power and remove AC power cord. 2. Carefully align the pT2-500D with the desired card slot edge connector. This is a blind installation, so take your time in order to avoid scratching this unit or adjacent units in the card rack. -
Page 7: Operation
2. Connect microphone cables to the XLR INPUT connectors on card slots that contain your pT2-500D or other mic preamp. Do not attempt to connect unbalanced microphones to the pT2-500D It is not intended to operate with this type of microphone. -
Page 8: Instrument Input And Thru (Di)
3. The IN and THRU jacks are directly connected as in any typical standalone DI. Since the input impedance of the pT2-500D FET DI is 2.5 Megohms, it does not provide any significant electronic load to the instrument pickup. When connection is made via the THRU jack to an amp or other device, the input impedance of that device will essentially determine the electronic load on the instrument pickup. -
Page 9: A Word About Cables
• Avoid excessive cable length. • Replace damaged connectors. Cable Types There are two styles of audio cables used for connections to the pT2-500D in a 500- series rack: • Shielded / single-conductor type for unbalanced signals (Instrument cables) • Shielded / twisted-pair type for balanced signals ( Microphone / Line level cables) We recommend that all interconnecting cables are wired according to the following standards. -
Page 10: Front Panel Layout
Microphone Preamplifier OPERATION MANUAL Front Panel Layout CONTROLS Gain The detented rotary gain control along with the HI GAIN button setting determines the overall gain through the preamp. When HI GAIN is off, the rotary gain control range is from 6.5dB to... -
Page 11: Specifications
Microphone Preamplifier OPERATION MANUAL SPECIFICATIONS* Frequency Response 1.5 Hz – 550 kHz @ 40dB gain (-3 dB) THD+N 0.0004% @ 40dB gain,+26 dBu out, 20Hz to 20kHz BW Intermodulation Distortion 0.0009% SMPTE/DIN 4:1 (60Hz/7kHz), @40dB, +26dBu Noise (E.I.N) -133 dB... -
Page 12: Troubleshooting
• Check AC power source and cord connection on rack power supply is ON, but no • Check fuse on rack power supply. LED’s illuminate on pT2-500D. • Check that preamp card edge connector is properly seated. No signal output. Main power switch •... - Page 13 Microphone Preamplifier OPERATION MANUAL Symptom Solution standard tip-sleeve ¼” phone plugs. DO NOT use TRS plugs! Radio Frequency Interference can • Make sure that mic cables are of good be heard in the audio program quality and that the shield is properly (swishing sound or audio from a connected.
-
Page 14: Warranty & Service Information
WARRANTY & SERVICE INFORMATION REGISTRATION Don’t forget to register your pT2-500D by completing the registration form online at our website www.synthax.de (Support / Product Registration). Alternatively, fill out the enclosed Registration Card and return it to us. This allows Synthax GmbH to contact you regarding any updates, upgrades or applications information that may become available. -
Page 15: Service And Support
Synthax GmbH or authorized repair facilities. All units returned to Synthax GmbH or authorized TRUE systems repair facility must be prepaid, insured and properly packaged. Purchaser must obtain a Return Authorization (RA) number from Synthax GmbH prior to returning a product.
