USER MANUAL

DVD BLU-RAY PLAYER

MODEL: NBD310MF

Table of Contents

Need help?

Do you have a question about the NBD310MF and is the answer not in the manual?

Questions and answers

Summary of Contents for Nexus NBD310MF

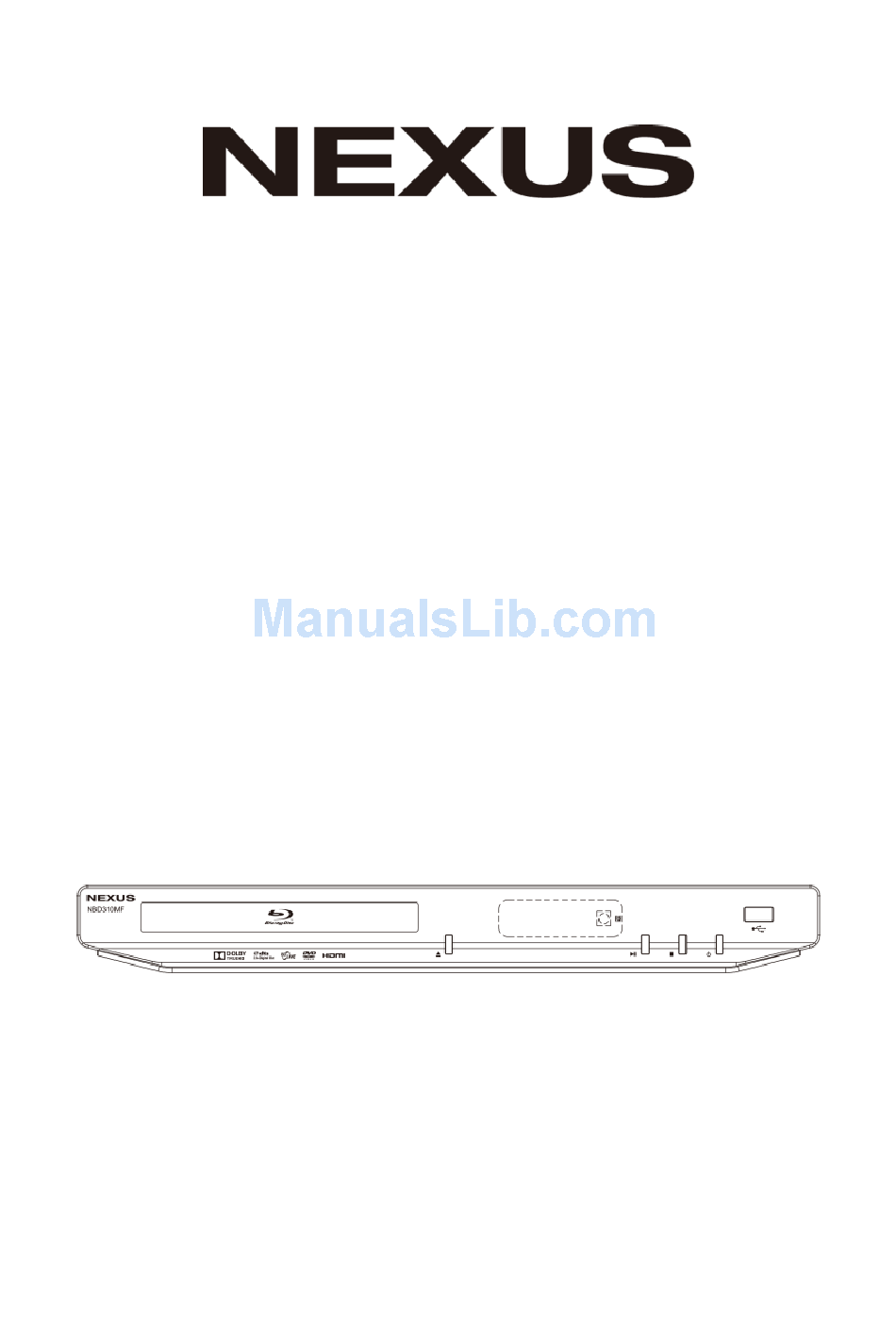

Page 1 USER MANUAL DVD BLU-RAY PLAYER MODEL: NBD310MF...
Page 2: Table Of Contents
Contents Safety and Maintenance..................2 Security Instructions....................2 DVD Blu-ray Display.....................4 Remote Control..................... 5 -Remote Control Batteries..................6 Connections......................7 -Connect Audio / Video Cables................7 -Connect to other devices..................8 Basic Operations....................10 -Play Video......................10 -Change Video Play ................... 11 -Playing Music.....................
Page 3: Safety And Maintenance
Safety and Maintenance This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury. This symbol indicates important instructions accompanying product. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
Page 4 CLASS 1 LASER PRODUCT Use of controls, adjustments or performance of procedures other than those specified here in may result in hazardous radiation exposure. Trademark Notice DVD Video is a trademark of DVD Format / Logo Licensing Corporation. Blu-ray Disc and Blu-ray Disc logo are trademarks of the Blu-ray Disc Association. Manufactured under license from Dolby Laboratories.
Page 5: Dvd Blu-Ray Display
CAUTION: This product utilizes a laser. Do not open cover and do not repair yourself. Refer servicing to qualified personnel. DVD Blu-ray Display 1. Disc Compartment Open or close the disc compartment 3. Display panel 4. IR Sensor: Point the remote control at the IR sensor Start (resume) / pause play.
Page 6: Remote Control
Remote Control OSC: To access On Screen Control Menu. Power: Turn on the player or switch it to standby mode. RESOLUTION: Press to change the resolution mode of the player. REPEAT: The specific repeat mode is different according disc type. DVD: RepeatCH>RepeatTT>RepeatAll>Repeat Off.
Page 7: Remote Control Batteries
-Remote Control Batteries 1. Open the battery compartment. 2. Insert 2 batteries AAA with the correct polarity (+/-) as indicated. 3. Close the battery compartment cover. NOTE: If you are not going to use the remote control for a long time, remove the batteries. Do not mix old and new batteries.
Page 8: Connections
Connections -Connect Audio / Video Cables Connect this product to TV to view disc play. Select the best video connection that the TV can support. 1. Connect to the HDMI Connect the HDMI cable (not supplied) to the HDMI jack on this product and to the HDMI input jack on the TV.
Page 9: Connect To Other Devices
connect the AUDIO input jacks on the TV. • This type of connection provides standard picture quality. -Connect to other devices Connect to Digital Amplifier / Receiver Connect a coaxial cable (not supplied) to the coaxial jack on this product, and then connect the coaxial/ digital input to the device.
Page 10 Connect USB Device A USB device provides an additional memory to enjoy software updates. BD-Live bonus content and media play. Connect the USB device to the USB jack on this product. Connect Power CAUTION: Before connecting the AC power cord, ensure you have completed all other connections. Once the AC power cable has been connected to a wall socket the product is ready for use.
Page 11: Basic Operations
Basic Operations Turn On Press to turn on the Blu-ray disc player. Turn on the TV and switch to the correct video input (refer to the TV user manual) Setup Menu Press SETUP to display the setup menu on the TV screen. Navigate the Menu When a menu is displayed, press the Navigation Keys on the remote control to navigate through it.
Page 12: Change Video Play
Change Video Play Button Action Audio Selects an audio language SUBTITLE Selects a subtitle language on a disc Select or turn off repeat mode. REPEAT Repeat options may vary from the disc type DISPLAY Display the current status or disc information ZOOM Zoom in/out of the video image BOOK...
Page 13 second video 【BD-V】： Displays the state of the second Video. Use direction key 【】 to open the second video selection box, then press 【】 / 【】 to select the full screen video and the second video window (picture in picture). (A) Primary video (B) Second video second Audio【BD-V】：Displays the state of the second Audio.
Page 14: Playing Music
PLAYING MUSIC Controlling music playback Use the remote control to control the playback for audio file. Button Action Start or resume play / Pause play. Stop Play Skip to a previous or next title or chapter Search fast-backward or fast-forward. Press repeatedly to change the search speed.
Page 15 Playing music during a Photo slideshow Create a musical slideshow to play both CD music files and JPEG Photo files simultaneously. Note: Create a musical slideshow, you must store the CD and JPEG files on the same disc as the photos.
Page 16: General Settings
General Settings BASIC OPERATION FOR THE MENU 1. Press STOP twice during playback 2. Press SETUP, the SETUP MENU display on the screen. 3. Select a main menu by LEFT/RIGHT. 4. Select the menu you want by UP/DOWN buttons and press RIGHT to enter. You can press UP to return to the main menu.
Page 17 LANGUAGE 1. OSD: Selects the OSD language. 2. Menu: Selects the menu language of the disc. 3. Audio: Selects the audio language for the program. 4. Subtitle: Selects the subtitle language for the program Note: You have to select the audio and subtitle language according to the requirements on the disc.
Page 18 SECURITY 1. Change Password: Changes the password for parental control menu. 2. Parental Control: to set the parental control. 3. Country Code: Select the Country code. Note: The original code is 0000. The code can be changed by user. NETWORK •...
Page 19: Display Settings
-DISPLAY SETTINGS 1. TV Screen: Selects the display mode for the TV. 2. Resolution: Selects the resolution for the TV. 3. TV System: Selects the TV system type. 4. Color Space: Selects the color space. 5. HDMI Deep Color: Selects the color for HDMI. 6.
Page 20 Speaker Setting: Selects speaker output 1. configuration: channels 2x 2. Test Tone: SYSTEM INFORMATION Displays the system information (Information in the picture above is for reference only) CLEAN DISCS Wipe the disc with a Micro Fibre Cleaning Cloth from the centre to the edge in a straight line movement.
Page 21: Specifications
Note To prevent possible damage of this product do not turn off the power or remove the USB flash drive while the software update is in progress. Caution Never use solvents such as benzene, thinner, cleaners available commercially, or anti-static sprays intended for discs to clean the player.
Page 22: Troubleshooting
Main unit • Power supply rating:100-240V~50/60Hz • Power consumption in standby mode:<1W • Dimensions (w x h x d): 360 x 201 x 40 (mm) • Net Weight: 1.3kg -BD: 405 + 5nm/-5nm -DVD:650 + 13NM/-10NM -CD:790+15NM/-15NM Troubleshooting WARNING: Before requesting after service please check this possible resolution. Risk of electric shock.
Page 23 • Ensure that the disc is loaded properly • Ensure that this player supports the disc. See Specifications. • Ensure that this player supports the region code of Disc cannot be played the DVD or BD • For DVD+RW, ensure that the disc is finalized. •...
