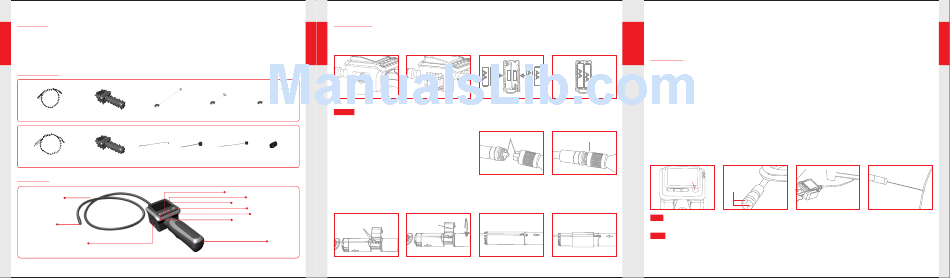

explorer compact GL8805 Inspection Camera

Welcome
Congratulations on your purchase of our inspection video camera with color LCD monitor, The
Explorer Compact. Please read the user manual carefully before using this product. This product
is designed as a remote inspection device, appropriate for use in surveying pipes or other
hard-to-reach places, equipment or furnishing installation, car repair, etc. Features include
waterproof LED lens, real-time recording.

Packing List

For GL8806
17mm Waterproof 2.5" TFT -LCD
Magnet
LED Lens Monitor x 1
For GL8805
Mini 9mm Waterproof
2.5" TFT -LCD
Hook Mirror
LED Lens
Monitor x 1
Structure
Flexible Tube
Mini 9mm
Waterproof LED Lens
Battery Compartment
-1-
Installation
To Install Batteries
1. Remove the cover and liberate the battery compartment from its casing;
2. Insert four (4) AA batteries into their appropriate slots, with proper orientation, as indicated
on the battery compartment;
3. Reinstall battery compartment and replace battery cover.
NOTE! Dry your hands before installation or replacing batteries.
Mirror Hook
To Attach Flexible Tube with Monitor
T o connect the flexible tube camera with monitor,
first make sure that the keyed end of the tube
is aligned with the slot in the handle, then use
slight force to push them together. Once properly
Magnet Rubber Ring
aligned, twist the treaded knob clockwise until
the connection is securely in place.
To Install Accessory
LEDs brightness control
The three (3) included accessories (mirror , hook and magnet) are all attached to the tube in
Power Indicator
Low Voltage Indicator the same way as illustrated below:
Power ON/OFF For GL8806:
Mirror button
Aim at the cut of slot
LCD contrast control
Handle
Keyed end plugs Fasten the
into socket
treaded knob
For GL8805:
Click to lock up Place hook into hole Place rubber ring
at end of tube around camera head
and hook
-2-
For GL8806: to prepare accessory for installation, push down on stem-side of black interface
while pulling away from adjacent side. This will open the base of the accessory. Next, align inside
of stem-side to either treaded surface at the base of camera head. Tighten to secure the
accessory in place.
Operation
1. Press the power switch to turn the camera on (refer to Fig-1). The power indicator will illuminate
and the LCD will become viewable.
2. If the image on the LCD is unclear, please adjust brightness, contrast and mirror by toggling the
buttons on the monitor face.
* LEDs Brightness Control: The 6 levels of LED brightness can be adjusted by pressing the LEDs
Brightness Control button (refer to Fig-2).
* LCD Contrast Control: The 8 levels of LCD contrast may be adjusted by pressing the LCD
Contrast Control button.
3. T o rotate the orientation of the image displayed on the LCD by 90 , press the Mirror button.
There are four (4) possible image orientations that you can toggle through by pressing this
button.
4. When in use, the tube should easil y maneuver itself into position. Do not apply excessive force
(refer to Fig-3).
5. The accessories included with Explorer Compact can be used to retrieve small items like
dropped rings or screws (refer to Fig-4).
Power Switch
T win LEDs
provide
lighting
Fig-1 Fig-2 Fig-3
TIP! The flexible tube can be bent into numerous shapes that may help you explore areas you
otherwise thought were impossible to see.
NOTE! Do not immerse the monitor in water. Store in a dry place. Such measures reduce the
risk of electric shock and damage. Only the lens and tube are water resistant when the
unit is fully assembled.
-3-
O
Fig-4
