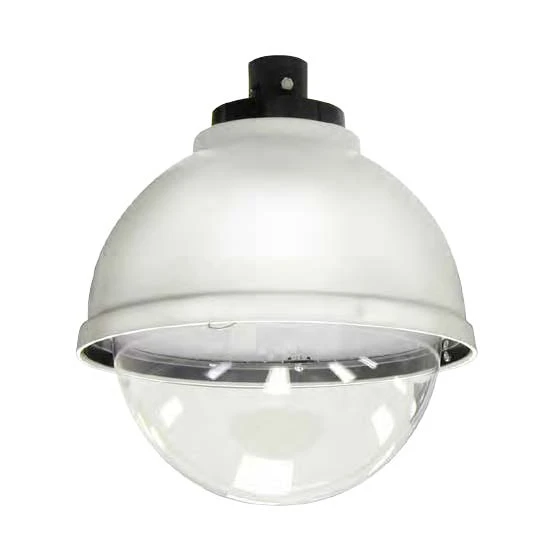

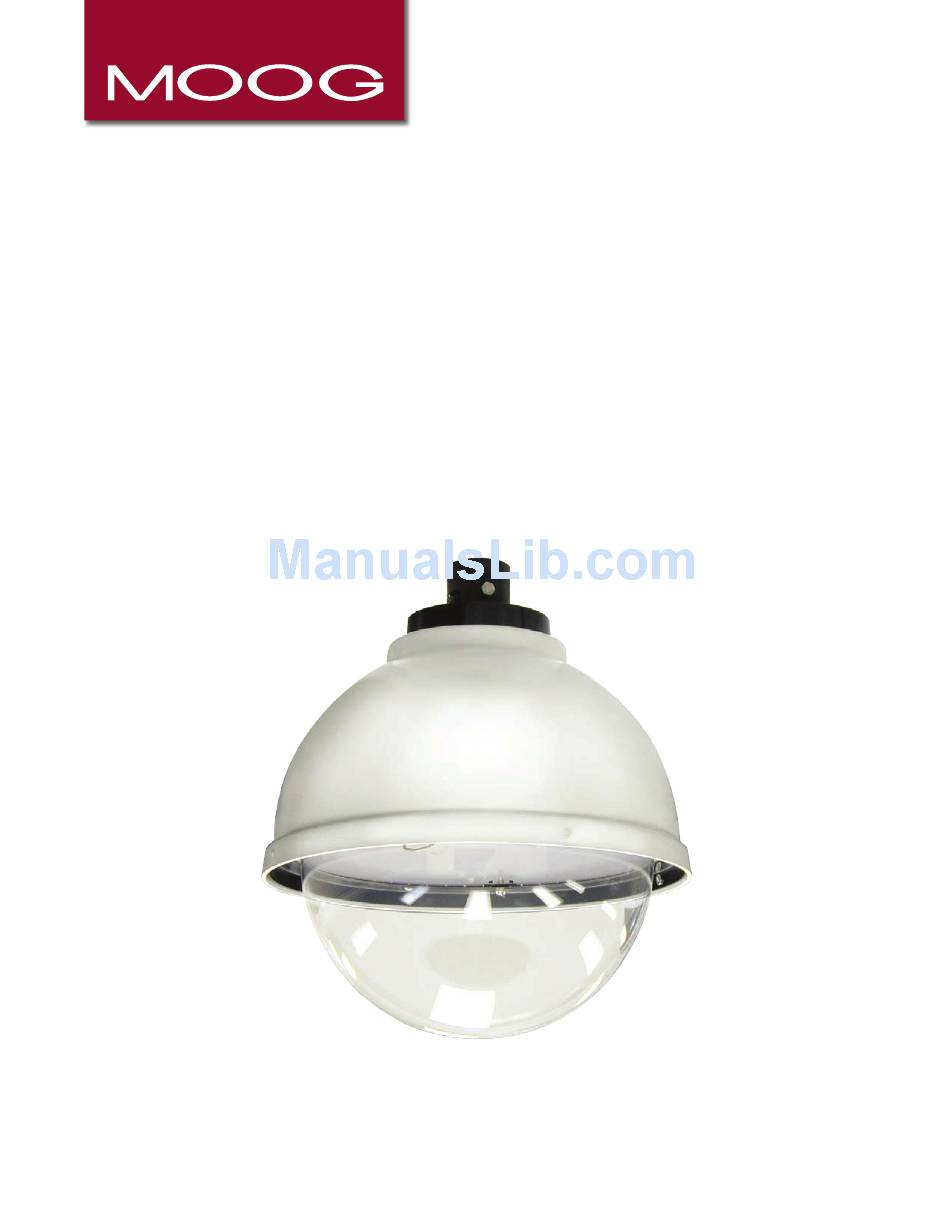

SDP12C and SDP16C
12" and 16" SuperDome
SDP12C..........12" Outdoor / Indoor dome housing with pendant mount, clear dome, (1) fixed camera bracket
SDP12T.......... 12" Outdoor / Indoor dome housing with pendant mount, tinted dome, (1) fixed camera bracket
SDP12CHB..... 12" Outdoor dome housing with pendant mount, clear dome, 24Vac input, heater / blower / thermostat, (1) fixed camera bracket
SDP16C......... 16" Outdoor / Indoor dome housing with pendant mount, clear dome, (1) fixed camera bracket
SDP16T.......... 16" Outdoor / Indoor dome housing with pendant mount, tinted dome, (1) fixed camera bracket
SDP16CHB..... 16" Outdoor dome housing with pendant mount, clear dome, 24Vac input, heater / blower / thermostat, (1) fixed camera bracket
Substitute "C" (Clear dome) for "T" (Tinted dome) version
© 2013, Moog Inc. All Rights Reserved
Camera Enclosure
™
Moog Inc.
Sensor and Surveillance Systems
3650 Woodhead Drive Northbrook, IL. USA 60062
+1.847.498.0700 Fax: +1.847.498.1258 www.moogS3.com
Installation and Operation Instructions
Before attempting to connect or operate this product, please
read these instructions completely.
81-IN5383 111413
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moog SDP12C
Summary of Contents for Moog SDP12C
- Page 1 Camera Enclosure ™ SDP12C..12” Outdoor / Indoor dome housing with pendant mount, clear dome, (1) fixed camera bracket SDP12T..12” Outdoor / Indoor dome housing with pendant mount, tinted dome, (1) fixed camera bracket SDP12CHB..12” Outdoor dome housing with pendant mount, clear dome, 24Vac input, heater / blower / thermostat, (1) fixed camera bracket SDP16C..
- Page 2 IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK).
-
Page 3: Product Warranty Registration
Register Your Products Online www.moogS3.com/technical-support/product-registration Moog values your patronage. We are solely committed to providing you with the highest quality products and superior customer service. With 3-Year and 5-Year warranties (depending on the product purchased) we stand behind every product we sell. - Page 4 ™ During the labor warranty period, to repair the Product, Purchaser will either return the defective product, freight prepaid, or deliver it to Manufacturer at Moog Decatur Operations, 2525 Park Central Boulevard, Decatur, Georgia, 30035. The Product to be repaired is to be returned in either its original carton or a similar package affording an equal degree of protection with a RMA # (Return Materials Authorization number) displayed on the outer box or packing slip.
-
Page 5: Electrical Specifications
Electrical Specifications Contents of Box Power 24VAC SDW12 Class 2 Only 24 VAC 3.33Amps Total Power: 52 Watts Accessories: Heater: 50 Watts/Blower: 2 Watts Camera Power: Not Supplied Tools Required: Housing Security Tool (provided) English Molex Crimper 11-01-0197 (18-24 gauge wire) 24 VAC 3.33 amperios Energía Total: 52 vatios... - Page 6 WM20G (SOLD SEPARATELY) Wrap Teflon tape around the pipe threads Securely mount bracket to wall. Pull wiring to ensure a tight seal. through bracket and position grommet as shown. • Con seguridad soporte del montaje a emparedar. Tire del cableado •...
- Page 7 Loop the lanyard over the set screw to Make the appropriate wiring connections temporarily hold housing. from the dome to the pendant. • Coloque el acollador sobre el tornillo de presión para • Hacer las conexiones de cableado de la cúpula de la celebrar temporalmente la cubierta.
- Page 8 Wiring Color Code 24k VAC Wiring Distances Power and Control Inputs The following are the recommended maximum distances for 24 VAC (Outside of housing) with a 10% voltage drop (10% is generally the maximum allowable voltage drop for AC powered devices). POWER Wire Gauge Total vA...
-
Page 9: Camera Side
Housing Side Camera Side Attach fixed bracket to one of the (2) square holes. Assemble fixed camera bracket. • Una el soporte fijo a una (2) de las perforaciones rectangula- res. • Monte el soporte fijo de la cámara fotográfica. •... -
Page 10: Replacement Parts List
Replacement Parts List SDP12 Part Number Description SDH012 HOUSING TOP FOR 12” HOUSING SDH016 HOUSING TOP FOR 16” HOUSING RPFD040 UPPER BRACKET ASSEMBLY SPACER KIT RP46PKH3063 RPFD050 PCBOARD RPFD060 CAMERA BRACKET RPFD072 25 WATT, 24 VAC HEATER RPFD080 BLOWER CWKFD2 24VAC COLD WEATHER KIT FOR OUTDOOR HOUSING RCSD12 CLEAR REPLACEMENT CAP FOR POD/ SDW/MP 123...
