Summary of Contents for 3C-Link 3C-MC-R16

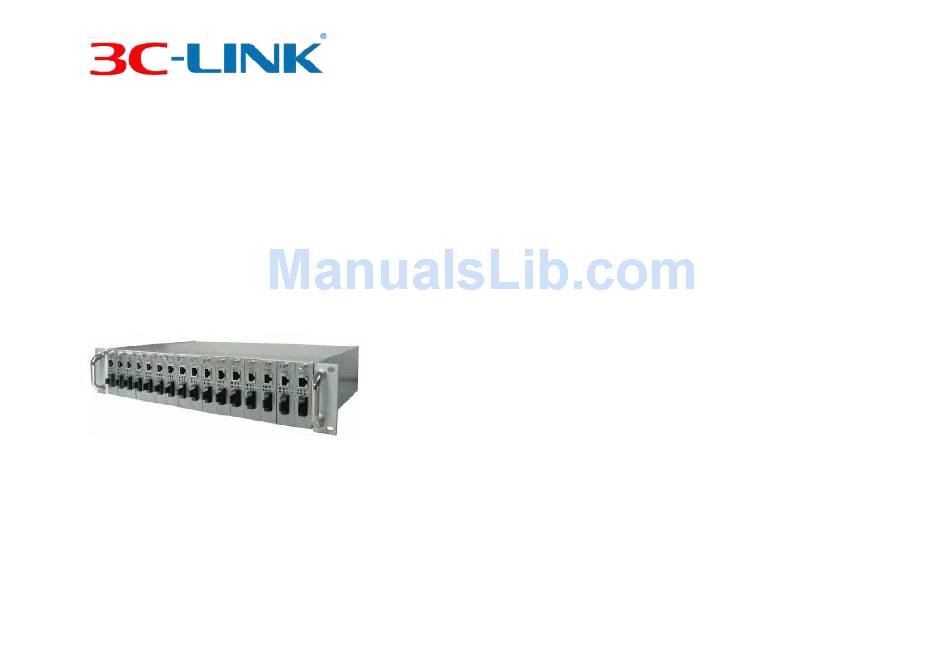

- Page 1 User’s Manual For 2U UnManagement Converter Chassis 3C-MC-R16 Version 1.0...
-
Page 2: Table Of Contents
Preface Table of Contents This manual describes how to install and use the 2U Unmanagement PREFACE..................1 Converter Chassis. The system introduced here is capable of housing up TABLE OF CONTENTS..............1 to 16 media converters, each of which offers one channel media ATTENTIONS……………………………………………………….…3 conversion solution: 10/100BaseTX ↔100BaseFX... -
Page 3: Attentions
items immediately to your authorized reseller. Thanks for using our products. Please read this user’s manual before Product Features: usage. Please contact us if you have any query related to installation or ♦HOUSE UP TO 16 MEDIA CONVERTERS ♦STANDARD 19” RACKMOUNTABLE SIZE, 2U operation. -
Page 4: Selecting A Site For The Equipment
Selecting a site for the equipment The chassis can sit on desktop or any flat surface with adequate space and ventilation. If you want to place it onto a shelf, make sure the shelf As it is any electric device, you should place the equipment where it will can withstand a minimum weight of 10kg. -
Page 5: Connecting To Power
maximum flexibility and redundancy. In this way, you may remove any chassis. of the two power supplies without turning off the system. Type Application: ♦Redundancy During operation, both power supplies are switched on and share the current load. In case that one of them should fail, the other will instantaneously take 100% of the load without any loss. - Page 6 4. After the warranty period, we will charge accordingly depending on the Specifications are subject to change without notice. It is a registered trademark of 3C-LINK Technology Co., Ltd. Other brands and product names are fault or damage. trademarks or registered trademarks of their respective holders. No part of the...
