SnowEx SS-4000 Assembly Instructions Manual
Hide thumbs
Also See for SS-4000:
- Owner's manual (24 pages) ,
- Installation instructions manual (16 pages) ,
- Owner's manual (24 pages)
Related Manuals for SnowEx SS-4000
Summary of Contents for SnowEx SS-4000

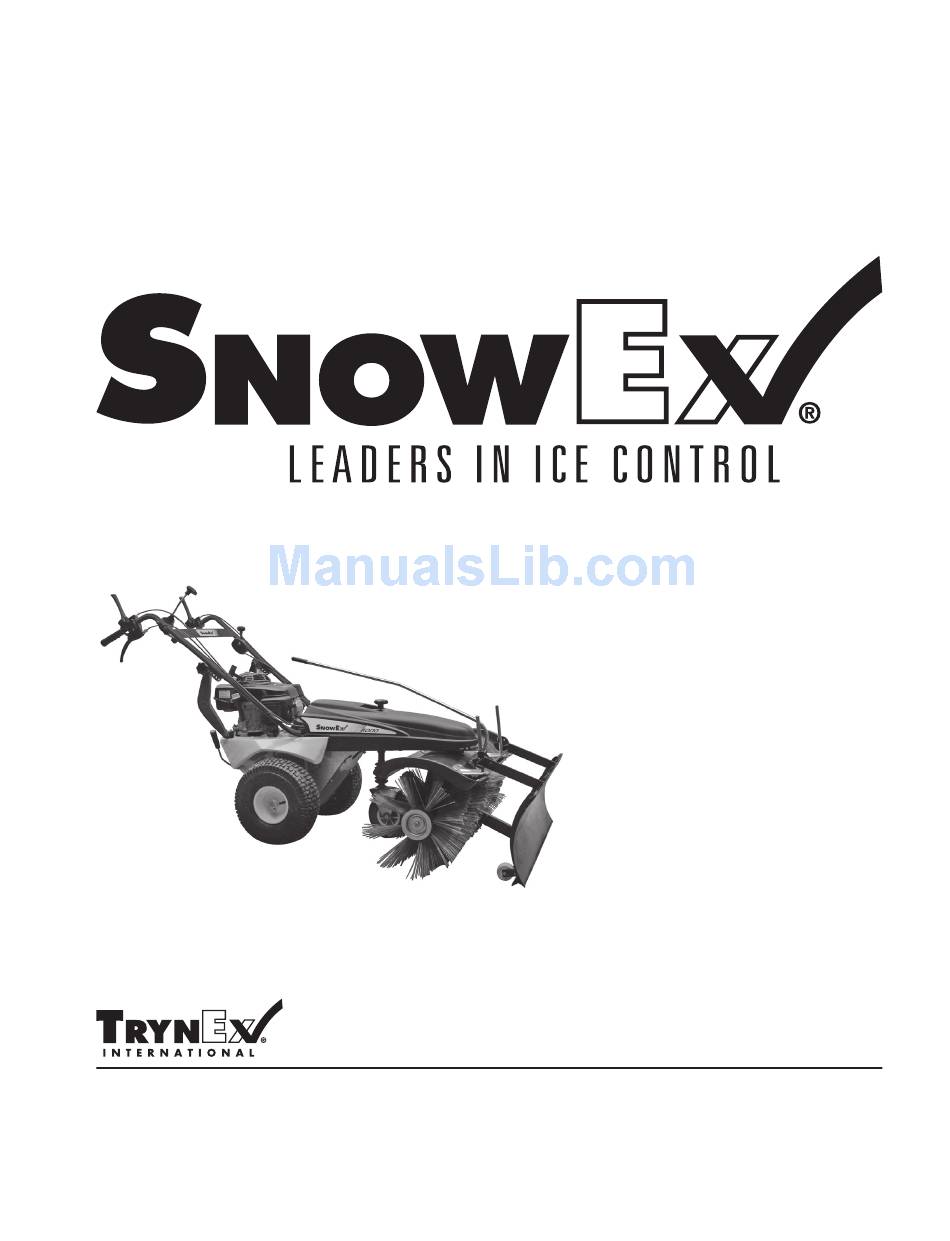

- Page 1 Assembly Instructions SS-4000 Serial No. SB4-100000 and higher CUSTOMER COPY Madison Heights, Michigan 48071 800-SALTERS www.snowexproducts.com © TrynEx International 2013 (REV A) F51067C...
-
Page 2: Table Of Contents
Fastener Torque Chart ....................................3 Safety ........................................... 4 Assembly Instructions ....................................5-12 Notes ........................................13-15 Have a question or need assistance? SnowEx Customer Care (800) SALTERS or (248) 586-3500 Monday trough Friday 8:00 AM to 4:30 PM EST Fax: (248) 691-8378 E-mail: customercare@trynexfactory.com... -
Page 3: Introduction
Introduction These assembly instructions have been designed to guide you in assembling your SS-4000 Rotary Sweeper. Follow these instructions with care to ensure performance and longevity. Please read and understand the safety warnings associated with the assembly of the equipment before beginning. In addition the safety information in the these instructions, observe general safety guidelines to maintain your safety and the safety of those around you. -
Page 4: Safety
Safety This page contains safety information to highlight safety hazards and precautions involved with operating your SS-4000. This page must be read and understood by all personnel who have any part with the assembly, use and care of this machine. -
Page 5: Assembly Instructions
Assembly Instructions Use metric tools to assemble the SS-4000. Two people are necessary for this procedure. STEP 1 Rest the handlebar on the clamps. STEP 2 Mount Handlebar to the supports with the knob. STEP 3 Put the other half of the clamps onto the studs. -
Page 6: Step
Assembly Instructions STEP 5 Put locknut and washer on the stud. STEP 6 Tighten the nuts so the handlebars will still move, but not fall. STEP 7 Attach Throttle Lever with bolt, washer and locknut STEP 8 Put right and left wheels on the drive axle and secure with the linchpin. Put the linchpin through the axle only. This is the freewheel position – see Owner’s Manual for more information. - Page 7 Assembly Instructions STEP 9 Support the machine at the front with a wooden block. Secure the rear wheels with chocks. STEP 10 Attach Support Wheel. Push the sleeve through Wheel with fasteners. the wheel. Position the support Push the hex bolt through wheel as shown.
- Page 8 Assembly Instructions STEP 11 Have another person hold the machine firmly by the handlebars. STEP 12 Remove the bolts on both sides that hold the Wheel Drive Housing to the Brush Drive Extension. DO NOT RE-USE THE REMOVED HARDWARE. STEP 13 Remove the bolts on both sides that hold the Wheel Drive Housing to the Brush Drive Frame.
- Page 9 Assembly Instructions STEP 15 Tighten the bolts holding the Brushing Mechanism to the Axle Drive Housing in the order shown. IMPORTANT Tighten the bottom bolts first, then tighten the bolts on the side. Please note the order in which the bolts are tightened. Otherwise, the machine is not exactly aligned and the drive belt could wear down the brush.
- Page 10 Assembly Instructions STEP 17 Attach the Brush Cover Side Panels. Position the side panel Parts. so that the holes are concentric. Push the bolts through from above. Push the Repeat this procedure washers on from below for the second panel. and screw on the nuts.
- Page 11 Assembly Instructions STEP 18 – CONTINUED Put the Axle with the Put the Axle with the Cap, Washer and Right Cap, Washer and Brush Brush through the drive through the drive source source (centered under- (centered underneath neath the brush cover). the brush cover).
- Page 12 Assembly Instructions STEP 19 CONTINUED Location of Snap Nuts. Location of Snap Nuts. Set the brush at an Put Torx Screws with angle. Slip the cover the Counter-Sink Wash- over the belt area and ers through the mount- back so the Snap Nuts ing holes on the cover can be seen through the and thread into the snap...
-
Page 13: Notes
Notes © TrynEx International 2013 (REV A) F51067C... - Page 14 Notes © TrynEx International 2013 (REV A) F51067C...
- Page 15 Notes © TrynEx International 2013 (REV A) F51067C...
- Page 16 132611...
