Summary of Contents for Junsung-Tech GIGA MS
- Page 1 344 Bloor St. West, Unit #607, Toronto, ON Canada M5S 3A7 1-416-423-5590 info@lprglobal.com www.uskoreahotlink.com...
- Page 2 Easy to carry, multi-function Crystal clear voice ampli cation with no signal jams!
-
Page 3: Product Warranty

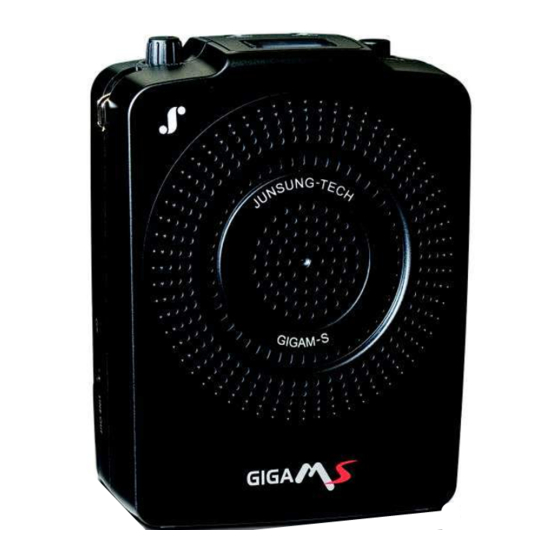

& Customer Satisfaction POWER GIGAPHONE Launch HANDY GIGAPHONE Launch and SUPER GIGAPHONE Launch WIRELESS JSM-55 Launch WIRELESS GIGAPHONE Launch GIGA MS and GIGAPHONE S Launch Junsungtech GIGA MS What is the GIGA MS? Names and features of the product Powerful Portable... - Page 4 What is the GIGA M ? GIGA MS is a stunning wireless ampli er featuring the best power output of its class in a portable worry-free package. Bene tting from over 20 years of Junsungtech’s innovative research and our 2.4GHzFHSS technology, this excellent product is the most powerful addition to the successful GIGAPHONE familly.
- Page 5 Or use with a direct connection Use with the wireless mic External devices Use the GIGA MS on its own or pair with a larger stereo Even play through your existing stereo...
-
Page 6: Special Features
SPECIAL FEATURES MG-5500 (Main Body) No Frequency hopping interference due to the 2.4GHz FHSS digital signal Most powerful output in its class (40W) Line out function (able to connect to larger PA system) Long lasting battery and short recharging time Use with a wireless microphone, wired mic, and external device simultaniously! MG-5500 (Wireless Microphone) -
Page 7: Product Configuration
PRODUCT CONFIGURATION BATTERY LCD MIC. CONNECT ON/OFF SWITCH USB CHARGING STATUS LED... - Page 8 Main Body Belt Clip MG-77 Boom-Mic i-200 Mic i-200 headset Neck Case AC Adapter Shoulder Strap GIGA Pouch User Guide * The size and design of the product may be subject to change without notice...
- Page 9 *When the battery is used for less than 400 Wh/L Item Speci cation (without clip) (with 76g battery) Used Frequency Modulation Method Transmission Power Operation Temperature Time of Use Charging Time 10 cm excluding the plug 4-6 g Adapter length 10 (+-.5)cm i-200 9 (+-1)g...
- Page 10 MANUAL Main body On/O Press and hold power switch for 2 seconds to turn ON. LCD Battery indicator on top of the Main Body will appear when ON The wireless icon ( ) will be shown when wireless connection to mic is made Press and hold power switch for 3 seconds to turn o .
- Page 11 Connecting the Main Body and the Wireless Mic Turn on the Main Body and the Wireless Mic. When both devices are wirelessly connected the wireless symbol will appear on the LED display on the main body. Press the CH button until the light on the wireless mic changes to green. The wireless Gigaphone is now ready to use! Using the Wireless Mic Mute and Volume Control Press ^ button to control the volume.
-
Page 12: Built-In Battery
MANUAL Low battery sign can be checked by the LCD. Recharge when battery status gauge goes down to one bar. When the Mic. and the Main Body are connected, the LED blinks green when the battery is low. However, the low battery indication will not be shown when muted. Built-in Battery The main body has a built-in Li-ion Polymer battery. - Page 13 Recharging the battery in the main body and wireless mic Recharge the battery when the battery meter on the LCD screen is below 1 bar. A charger adapter included in the package consists of the 2 types of connection jacks needed to recharge the Main Body and the Wireless Mic. Once the charger jack is plugged into the port marked DC IN, the LCD screen will blink and indicate that the unit is charging.
- Page 14 Manual Re-pairing the wireless mic and main body In the rare case of trouble or loss of signal with the wireless mic we recommend you re-pair it with the main body. Pairing process: Press and hold the power switch and reset switch ( ) on the bottom left of the main body.
- Page 15 How to properly use the wireless mic and mini-mic Plug the mini-mic into the mic jack of the wireless mic. Slide the wireless mic with mini-mic into the neck holster. Place around your neck for hands free use. Use the the stopper on the strap to adjust the mic to 10cm below your chin. For higher volume sound, you can also hold the mic as a hand-mic.
- Page 16 Manual How to use the wireless mic: Turn on the main power button and volume knob. Lower the volume by pressing the down arrow 4 times. Press the up arrow twice for medium volume. The MG77 wireless mic will remember your volume setting for next use.
- Page 17 Using the Gigaphone with an existing stereo/ampli er Boost the range and output of your gigaphone or turn any external stereo into a powerful public address system by using the gigaphone’s LINE OUT port. Using a connector cable (not included) connect the LINE OUT port on the gigaphone to the MIC terminal on your stereo.
- Page 18 QUALITY GUARANTEED We guarantee that the product has no manufacturing or material defects for up to one year after purchase for the Main Body and 6 months from purchase for microphone and other items. Cutomer complaints or inquiries may be directed to Junsuntech, we follow consumer protection and fair trade laws.
- Page 19 Product Name GIGA MS Junsungtech issues and registers the product warranty on our website (www.jsgiga.com) Product warranty much be registered online to receive customer service This product was manufactured in accordance to our strict quality assurance guidelines and our thorough testing.
- Page 20 Caution Failure to follow the following instructions may result in physical damage. Please read carefully and use properly. To prevent damage to the product only charge with the designated charger The ability of the battery to hold charge may diminish depending on the age of the battery and the environment in which it is used.
