GREEN HOBBY
Building Instructions

Technical Information:

Wingspan:
Length:
Wing Airfoil Design:
Total Area:
Flight Weight:
Electric Version: 1
Nimh Battery:
Propeller:
Before opening the glue, oil the threads on all bolts with "After-Run" oil (available from Green Hobby),
this prevents all kind of problems later! Wherever instructions suggest gluing to the epoxy fuselage, pre-
roughen up the smooth epoxy with fine sandpaper to give the glue a better "key" to adhere onto.

USEFUL TOOLS:

Needle or point nose pliers; "pin vise" modellers drill, drill bits from 2mm to 4mm, needle files, small wire
cutters, scalpel set, a little oil, epoxy glue, matchsticks for introducing epoxy into difficult to reach places,
soldering iron with electronic grade solder & flux paste, connecting plugs for nimh battery connections to
speed controller. All modelling tools are available from Green Hobby, and once purchased, will last you
for many years.
SAFETY: All electric aircraft have self start capability, this is absent in glow engined models. Because
of this both new modellers and modellers new to electric flight should always bear in mind the possibility
of the prop beginning to spin unexpectedly, if there is a nimh battery connected up. We call plugging in
the nimh "arming the plane", if your plane is armed, the transmitter should be "ON" to shout down
background interference that might switch the motor on. Ensure throttle stick is at down-throttle off.
The plane should be on a stand, so the prop is free to spin, and the motor will not burn out due to a
stalled prop. The modeller should also never stand to the side of a spinning prop - in front OK (if the
plane is stationery!), behind OK (recommended), but never to the side, a prop blade (or stone) could fly
out at high speed without warning, injuring anybody present there.
Remember: this is a REAL aircraft, it will be dangerous if not used carefully. Keep away from
bystanders. Even when being used properly, mishaps will occasionally happen, so due caution should
be exercised. Give respect to the propeller which is extremely sharp, the batteries which if shorted can
cause fire, the aircraft which needs maintenance before flights, your piloting skills which will improve but
never achieve perfection, and radio interference. In short - allow for problems and fly safely.

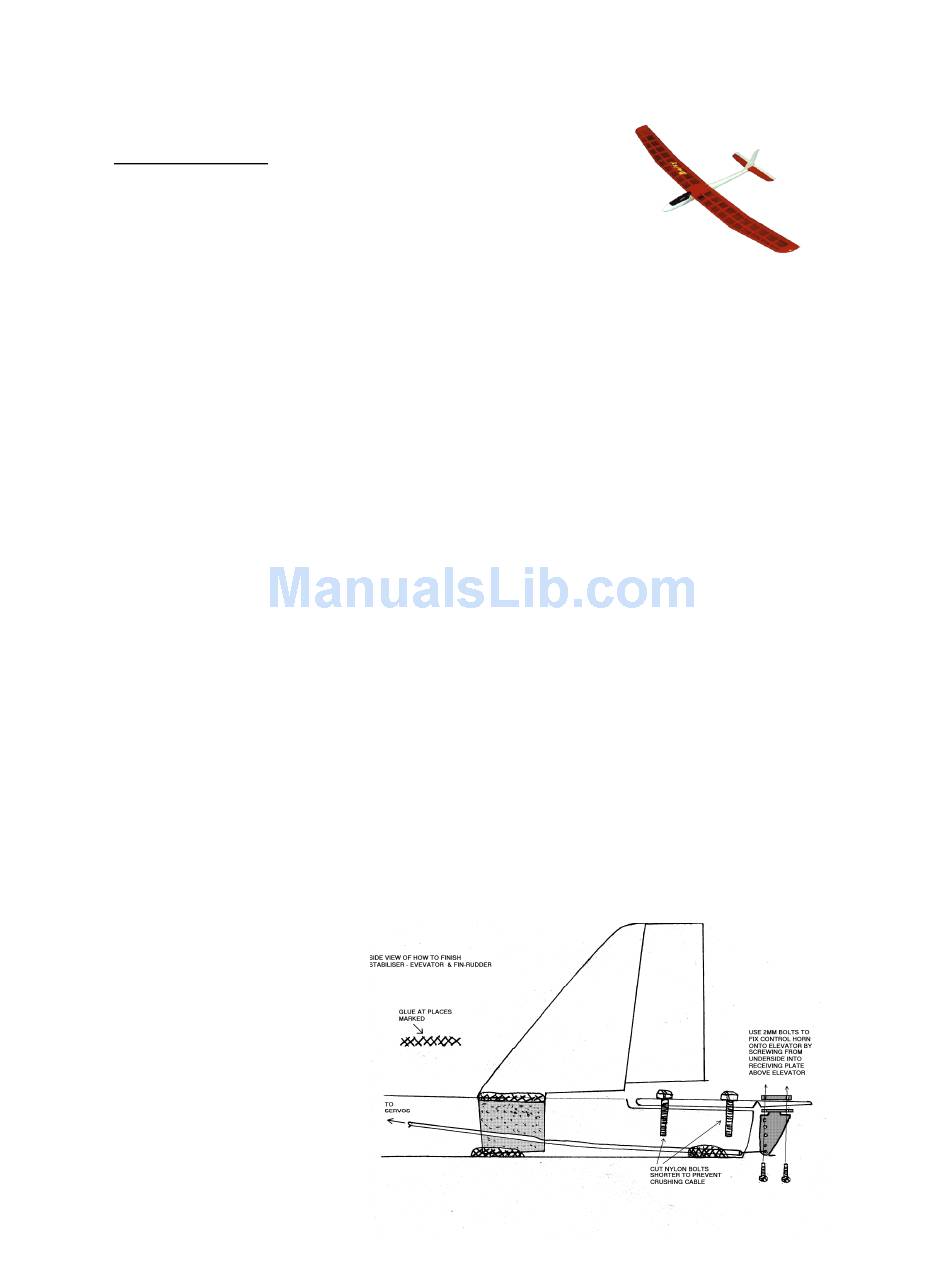

TAIL: Locate the two pairs of
holes in the top of the epoxy
fuselage, near the tail. The
rearward pair are tapped with a
thread to accept bolts holding the
stabiliser-elevator on later. The
forward pair of holes, not tapped
give you correct location of the
vertical stabiliser fin-rudder.
Using a Stanley knife or scalpel,
make two cuts joining the forward
pair of holes, and remove the thin
strip of epoxy, making a slot. Now
you can trial fit your fin, sanding
the slot with a fine file, or scraping
with the scalpel for best fit.
RC- Electric Aircraft
Motor or Glider Version
1480 mm
850 mm
S 7055
2
24.1 dm
450 g Glider
800 g Electric
AeroNaut Race 400 6.0V Motor
2
AeroNaut Race 480 7.2V Black Power
3
Mega Motor Brushless
8 cells choice of three -
Folding 6x3" Glass + Integral Middlepiece
Or
6x3" Carbon + Integral Middlepiece
Or.... brushless option 7 x 4.5 blades + 3.2mm integral spinner
Assembly Notes for "DAISY"
Part No. Daisy G/E/Q
"DAISY"
Mega 16.15.4 or Mega 400.12.
Part Nos KAN1050/GP1100/GP2000
Part No 7000/42
Part No 7000/48
Part No 7235/05
Part No 7236/05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Daisy G and is the answer not in the manual?

Questions and answers

Summary of Contents for Green Hobby Daisy G

  • Page 1 Or…. brushless option 7 x 4.5 blades + 3.2mm integral spinner Assembly Notes for "DAISY" Before opening the glue, oil the threads on all bolts with "After-Run" oil (available from Green Hobby), this prevents all kind of problems later! Wherever instructions suggest gluing to the epoxy fuselage, pre- roughen up the smooth epoxy with fine sandpaper to give the glue a better "key"...
  • Page 2 After pegs harden into wing, remove the wings for convenience during the rest of the assembly. MOTOR: This is pre-fitted in some versions of the kit. If not ask the Green Hobby team for an AeroNaut 6.0V Race 400 direct drive motor. The motor is fitted using two steel 2.5x8mm machine bolts. A downward tilt, or downthrust is noticeable, this is intentional, and indeed is necessary for the excellent flying characteristics of the aircraft on full power.
  • Page 3 You will get surprisingly long flights with the recommended nimh battery from your DAISY, it's height retention is very good, even when turning. At Green Hobby we have tried many batteries for balance and performance while testing prototypes. We found that, of the many batteries available, three nimh packs give equally nice flying but give different duration.
  • Page 4 The nicest way by far of connecting up the steel inner to the servo arms is using AeroNaut "Anschluss" adjustable servo connectors Part No 7490/07, we recommend these highly. They project about 6mm up from the servo top, so make sure your bearers & servos are fitted low enough or the wing might, when put on later, foul (touch) and stop the servo from turning! Fit the "anschluss"...
  • Page 5 We wish you many enjoyable flights with your DAISY. Green Hobby Flight Team Green Hobby, Greene Marine House., 38 Clareville Road, Harolds Cross, Dublin 6W, Ireland Tel: 4928776 Fax 4922946...
  • Page 6 Glue in fin Note location of cable drilling Cable & fin finished Another view … Elevator cable installed Elevator linkage from below Servo bearers glued in Bearer location from above Servo & cable connectors Propeller downthrust Wing pin ready to glue Wings finished Canopy with epoxied-in wire Bend the wire like this, to clip on canopy...
