Summary of Contents for BUTCHER BOY 250 MIXER

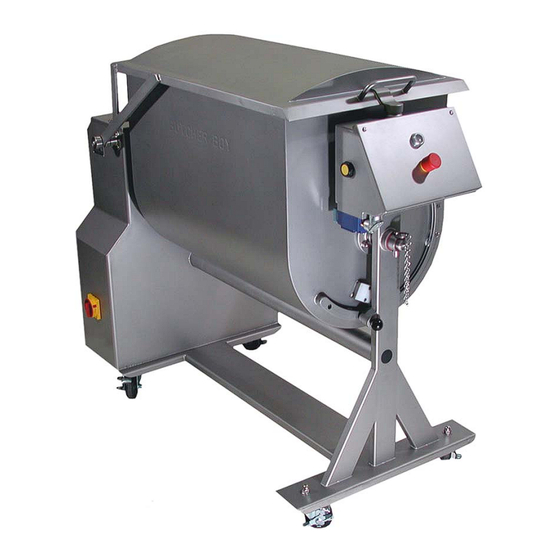

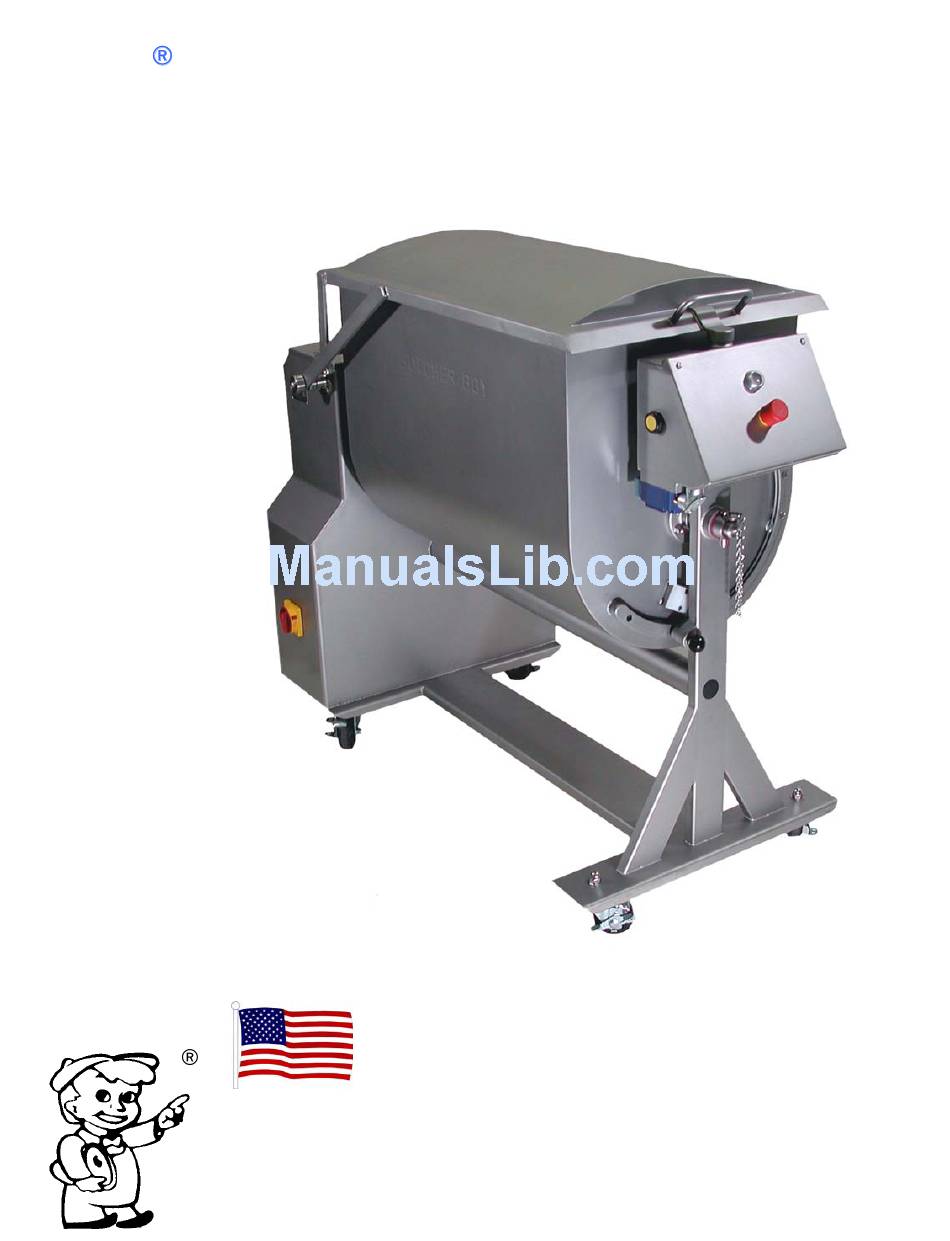

- Page 1 250 MIXER OPERATING INSTRUCTIONS AND PARTS LIST BUTCHER BOY = QUALITY DEPENDABILITY MADE IN USA SERVICE...
- Page 2 Daily: On a daily basis before using the 250 Mixer check the function of all the controls. If a malfunction does occur DO NOT OPERATE THE MIXER! Failure to follow the above instructions may place personnel in danger of severe...
- Page 3 START E-STOP TWO HAND DISCHARGE BUTTONS ELECTRICAL LOCKOUT OPPOSITE SIDE...
- Page 4 BUTCHER BOY 250 MIXER STAINLESS STEEL 250 MIXER BASE, TUB & LID ITEM # PART # DESCRIPTION QTY. 0025890 LID ASSEMBLY 0025935 TUB ASSEMBLY THSS-19-04-SS SCREW 0025929 TOP COVER 0025924 BACK COVER 0095773 0095772 LOCK NA-27-SS ACORN NUT 0095034 LOCKING CASTOR WHEEL...
- Page 5 BUTCHER BOY 250 MIXER STAINLESS STEEL 250 MIXER FRONT OF TUB FRONT SUPPORT ASSEMBLY ITEM# PART# DESCRIPTION QTY. 0025910 BUSHING 0090638 KNOB 0095695 PLUG 0026367S TENSION PIN GP-02-12-SS 0095789 SPRING 0025867 SPACER 0025911 INNER BUSHING 0025915 FRONT HUB RHSN-2120-SS CARRIAGE BOLT...
- Page 6 BUTCHER BOY 250 MIXER STAINLESS STEEL 250 MIXER DRIVE COMPONENTS PAGE 3...
- Page 7 BUTCHER BOY 250 MIXER STAINLESS STEEL ITEM# PART# DESCRIPTION QTY. 0095803 GEARBOX REDUCER 0025947 END WASHER HHCS-2314-SS HEX HEAD SCREW HHCS-2316-SS HEX HEAD SCREW 0025918 GEAR BOX SHAFT 0090486 SEAL 0025950 GEARBOX PLATE 0093999-160 ENCLOSURE 0093999-239 ENCLOSURE HNNI-21-SS NYLOCK NUT...
- Page 8 BUTCHER BOY 250 MIXER STAINLESS STEEL REAR OF TUB ITEM# PART# DESCRIPTION QTY. 0026693 BUSHING PADDLE ASSEMBLY 0025820 PADDLE W/BUSHING R/H TILT 0045048 DRIVE PIN SHSS-21-08-S SET SCREW 0025945 SPLINE SHAFT 0025976 O-RING BUSHING 0050653 O-RING RHSN-2120-S CARRIAGE BOLT FW-05-SS...
- Page 9 BUTCHER BOY 250 MIXER STAINLESS STEEL 250 MIXER CONTROL BOX COMPONENTS A1 + X1 2 A1 + 13 23 31 13 23 31 110/ 230VAC AC/DC POWER SIPHA 2 2 HAND POWER CONTROL UNIT CONTROL CONTROL UNIT OUTPUT AC/DC 110/...
- Page 10 BUTCHER BOY 250 MIXER STAINLESS STEEL PAGE 7...
- Page 11 BUTCHER BOY 250 MIXER STAINLESS STEEL 250 MIXER ELECTICAL COMPONTENS T1 T2 DISCONNECT DISCONNECT SWITCH SWITCH L1 L2 CONTACTOR CABINET 98 97 H1 H2 H3 H4 ELECTRICAL ENCLOSURE TRANSFORMER ITEM # PART # DESCRIPTION QTY. 0093999-110 STARTER (460-575V) 0093999-095 TRANSFORMER (208-460/24V) 0093999-025 F1 .30A FUSE (230V)
