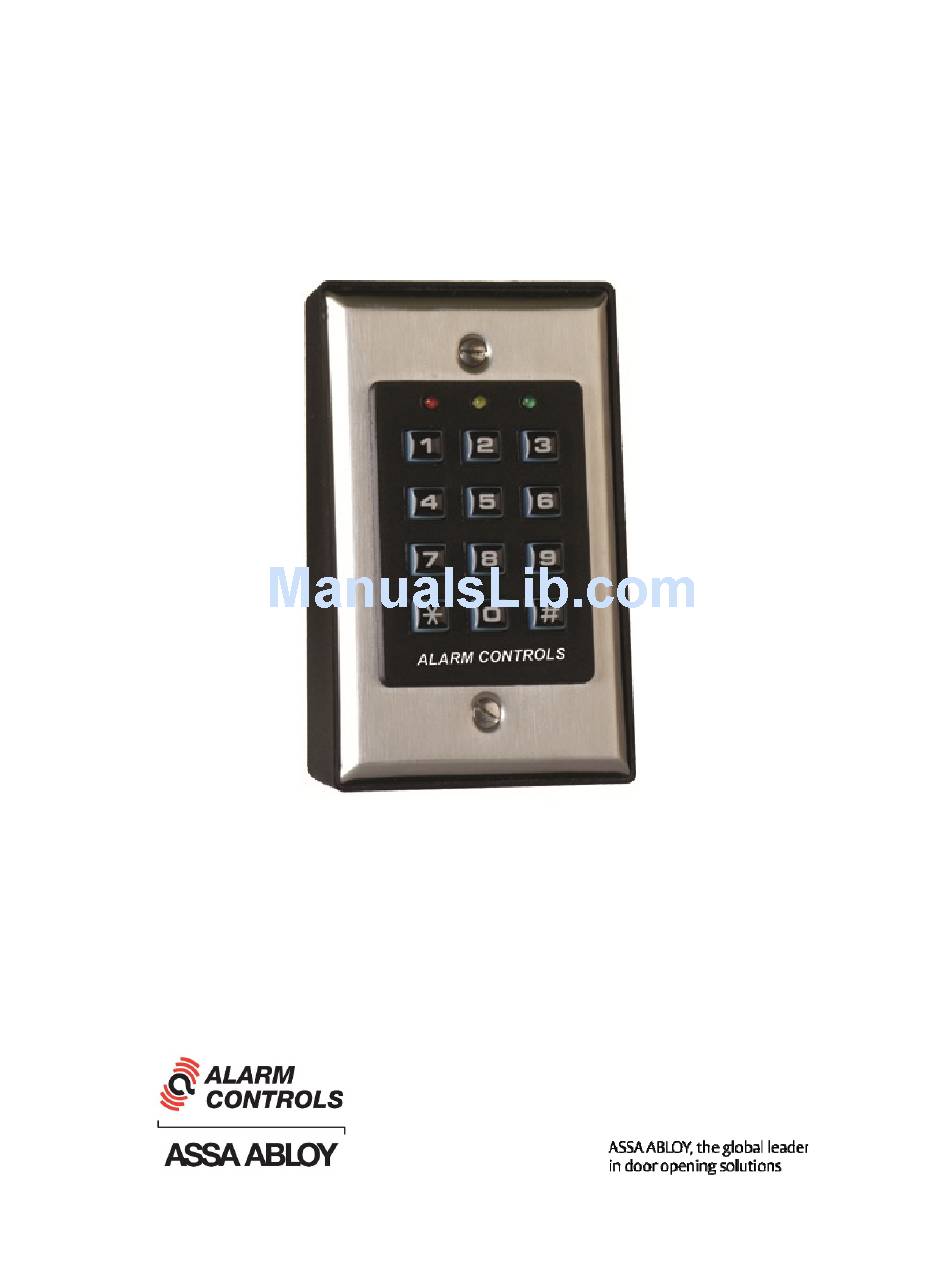

ACCESS CONTROL DIGITAL KEYPAD
OPERATING INSTRUCTIONS
Model KP-100 is a self-contained digital keypad. This
keypad is suitable for residential, industrial, and commercial
installations. It is compatible with all electric locking devices.
MODEL KP-100
Alarm Controls
19 Brandywine Drive
Deer Park, New York 11729
(800) 645-5538
www.alarmcontrols.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KP-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alarm Controls Corporation KP-100

Summary of Contents for Alarm Controls Corporation KP-100

  • Page 1 MODEL KP-100 ACCESS CONTROL DIGITAL KEYPAD OPERATING INSTRUCTIONS Model KP-100 is a self-contained digital keypad. This keypad is suitable for residential, industrial, and commercial installations. It is compatible with all electric locking devices. Alarm Controls 19 Brandywine Drive Deer Park, New York 11729 (800) 645-5538 www.alarmcontrols.com...

  • Page 2: Installation

    INSTALLATION 1. Pass the wire harness through the opening in the back box. 2. Mount the back box to the door frame or wall. 3. Make all required wiring connections to the terminal blocks. 4. Place the keypad faceplate on the back box and secure with the screws provided.

  • Page 3: Programming Mode

    KEYPAD INITIATION Keypad initiation must be done at the initial turn-on of the keypad. 1. Connect power to the keypad. 2. Put the keypad in Program Mode by entering “0 0 0 0 ”. The keypad will beep twice and the yellow LED will be on and not blinking. 3.

  • Page 4: Operation

    OPERATION Enter a valid User Code to activate the Output Relay. The keypad must be in standby mode (yellow LED blinking). 1. Enter “(User Code) #”. For example, if the User Code is “1234” you would enter “1 2 3 4 #”. DELETING USER CODES 1.
  • Page 5 AUTO OR MANUAL CODE ENTRY MODE When the keypad is programmed for Auto Entry Mode it is not necessary to terminate User Codes with the “#” during operation. However, in Auto Entry Mode the User Code must be the same length (4 to 8 digits) as the Installer Code.

  • Page 6: Keypad Lockout

    KEYPAD LOCKOUT The keypad can be temporarily disabled to prevent unauthorized access by entering a user specified 4 to 8 digit Lockout Code. The red LED will light when the keypad is in Lockout Mode. The keypad can be taken out of Lockout Mode by entering the Lockout Code again.

  • Page 7: Basic Wiring Diagram

    BASIC WIRING DIAGRAM Use N/C contact for magnetic locks and fail-safe electric strikes. Use N/O contact for fail-secure electric strikes. The 1N4004 Diode must be used for DC powered electric strike applications. TAMPER SWITCH The Tamper Switch is Normally-closed when the keypad face plate is securely attached to the back box.

  • Page 8: Specifications

    Active Current Draw 65 mA maximum @24VDC 9 mA maximum @12VDC Idle Current Draw 17 mA maximum @24VDC Output Relay Contact Rating 10A@28VDC Output Contact Arrangement Single Pole Double Throw Dimensions 2.875”W x 4.5”L x 1.375”D KP-100 Rev. B 5/14...
