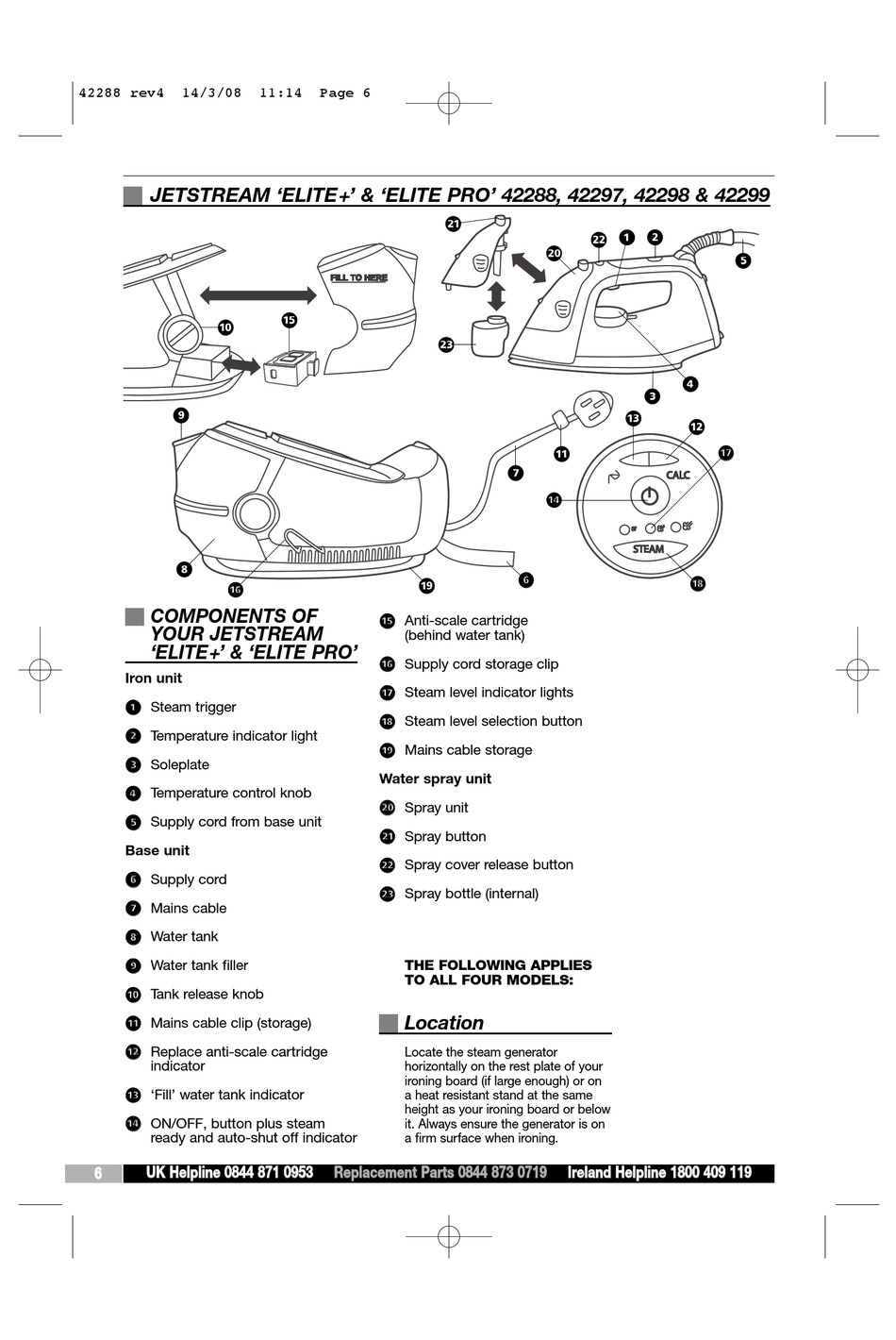

JETSTREAM 'ELITE + ' & 'ELITE PRO' 42288, 42297, 42298 & 42299
·
È
È
COMPONENTS OF
YOUR JETSTREAM
'ELITE + ' & 'ELITE PRO'
Iron unit
⁄ Steam trigger
¤ Temperature indicator light
¤
‹ Soleplate
› Temperature control knob
fi Supply cord from base unit
Base unit
fl Supply cord
‡ Mains cable
· Water tank
·
‚ Water tank filler
„ Tank release knob
‰ Mains cable clip (storage)
 Replace anti-scale cartridge
Â
indicator
Ê 'Fill' water tank indicator
Ê
Á ON/OFF, button plus steam
Á
ready and auto-shut off indicator
U U K K H H e e l l p p l l i i n n e e 0 0 8 8 4 4 4 4 8 8 7 7 1 1 0 0 9 9 5 5 3 3
6 6
11:14
Page 6
Ë
Ï
Ë Anti-scale cartridge
Ë
(behind water tank)
È Supply cord storage clip
È
Í Steam level indicator lights
Í
Î Steam level selection button
Î
Ï Mains cable storage
Ï
Water spray unit
Ì Spray unit
Ì
Ó Spray button
Ó
Ô Spray cover release button
Ô
Spray bottle (internal)
THE FOLLOWING APPLIES
TO ALL FOUR MODELS:
Location
Locate the steam generator
horizontally on the rest plate of your
ironing board (if large enough) or on
a heat resistant stand at the same
height as your ironing board or below
it. Always ensure the generator is on
a firm surface when ironing.
