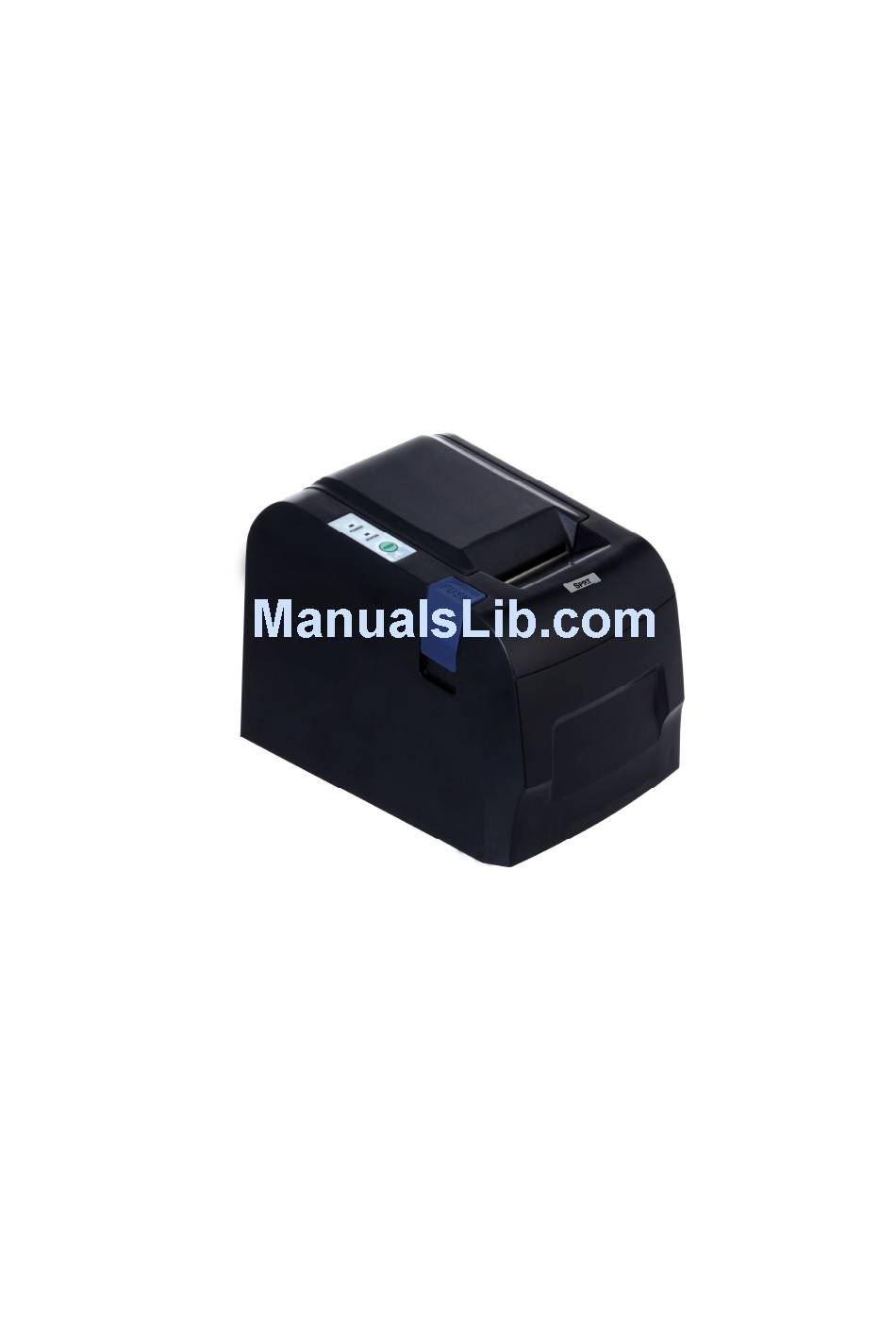

- Page 1 OSCAR POS58 Line Thermal Printer User’s Manual （ （ （ （ VER1.03） ） ） ）...
-
Page 2: Table Of Contents
SPRT Content Introduction ..................... ２ Chapter 1 Characteristic and Specification ..........３ 1.1 Printing specification ................３ 1.2 Printing Paper ..................３ 1.3 Printing Font..................... ３ 1.4 Interface ....................３ 1.5 Printing Control Command ..............４ 1.6 Power Supply................... ４ 1.7 Operation Environment ................ -
Page 3: Introduction
SPRT Introduction POS58 printer is a new type line thermal printer, it features in fast speed print, low print noise, high reliability, perfect print quality and ribbon needless avoiding the vexation of regular maintenance. POS58 printer: small in outline dimension, simple operation, and extensive application, especially suitable for commercial cash register, PC-POS, bank POS and all kinds of receipts print. -
Page 4: Chapter 1 Characteristic And Specification
SPRT Chapter 1 Characteristic and Specification 1.1 Printing specification ● Printing method: direct thermal ● Printing paper width: 57.5±0.5mm ● Printing density: 8 dots/mm, 384 dots/line ● Printing speed: approx. 75mm/s (valid content of each line isn’t over 25%) ● Reliability: Printing head life: 100km MCBF: 5 million lines Using condition:... -
Page 5: Printing Control Command
SPRT ● USB interface： Standard B type USB interface. ● Bluetooth interface: Support Bluetooth2.0/Bluetooth4.0 (Single mode BLE) ● Cash drawer control DC12V，1A，6-pin RJ-11 socket. 1.5 Printing Control Command ● Character print command: supports double width and double height printing of ANK characters, user-defined characters and Chinese characters, the character line spacing is adjustable. -
Page 6: Chapter 2 Installation And Operation
SPRT Chapter 2 Installation and Operation 2.1 Printer Appearance ５... -
Page 7: Paper Installation
2.3 Interface Connection 2.3.1 Parallel Interface Connection The Parallel interface of POS58 printer is compatible with CENTRONICS, supports BUSY and /ACK handshaking protocol, it uses DB25 socket (male), the pin order of parallel port is as below shows:... -
Page 8: Rs232 Interface Connection
Note: （1） “In” denotes inputting to the printer， “Out” denotes outputting from the printer. （2）Signal level is TTL standard. Fig. Pin Assignment of Parallel Interface 2.3.2 RS232 Interface Connection The RS232 interface of POS58 printer is compatible with RS232C standard, ７... - Page 9 The baud rate and data structure in RS232 interface mode are set to 9600bps, 8 data bits, no parity bit and 1 stop bit. The serial interface of POS58 can be connected with standard RS-232C interface. When connected to IBM PC or compatible machine, connection can accord to the below.
-
Page 10: Usb Interface
CLASS2, Valid distance is 10m. Device name is POS58IV, initial password is “1234”. Device name and password can also be set and changed by “Setting Tool”. Before printing, POS58 printer needs to pair with the host firstly. The pairing process is as below, 1. Turn on the printer 2. -
Page 11: Power Connection
Cash drawer on/off status signal +12V DC Cash drawer on/off status signal ground 2.3.6 Power Connection POS58 uses external power supply as 12VDC±10％, 2A, one core model, as below: 2.4 Buttons and Indicators 2.4.1 Power switch Control on/off status of power. -
Page 12: Self-Test
SPRT abnormal, the red indicator light will flicker to alarm error. Setting Buzzer can also alarm the abnormal working status. Light status Buzzer status Printer Working status Normal Flicker 1 time and stay Alarm 1 time Paper out and waiting for 1s off and stay 1s loading paper... -
Page 13: Chapter 3 Printing Driver Installation
1s on and 1s off status. At this time, the printer enters into Upgrade Mode. Chapter 3 Printing Driver Installation Printing driver for POS58 can be downloaded from the company of our website. After downloading, the name of driver software is DRV211. During installing driver software, choose printer model “58 thermal series”. About other operation, pls refer to the detailed installation manual. - Page 14 SPRT ·RS232 interface: DB25 socket (female), supports XON/XOFF and RTS/CTS protocol. Baud rate: 1200~115200bps optional. Data structure: 1 start bit + 8 data bits + 1 stop bit. Parity optional. ·Parallel interface: DB25 socket (male) or 36pins, 8-bit parallel interface, BUSY/ACK handshaking protocol, TTL signal level.
