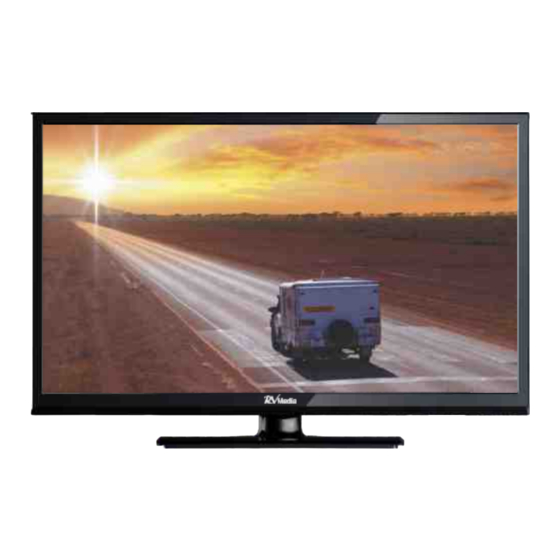

- Page 1 12/24/240V Full HD LED TV/DVD/USB Combo 043169 (22") Instruction Manual...
-
Page 2: Table Of Contents
Contents Important Safety Instructions What’s in the Box TV Controls Stand mount guide TV Inputs and Outputs SYSTEM CONNECTIONS AV Input PC Input HDMI Input YPbPr Component Input COAXIAL Output USB Input Antenna Connection Remote Control 12-14 OSD MENU OPERATION Source Selection Picture 16-17... -
Page 3: Important Safety Instructions
Important Safety Instructions Important Safety Instructions (cont) Usage conditions and restrictions reference, along with the warranty card, purchase receipt and carton. The safety • Follow the instructions in this manual when installing and adjusting the TV set. Only adjust those controls that are covered in this instruction manual; improper correctly adhered to. -
Page 4: What's In The Box
Important Safety Instructions (cont) What’s in the Box • When deciding where to put the TV set, make sure the location is: • Well ventilated. Leave at least a 20cm space all around the TV set for good ventilation. • Protected from overheating and away from direct sunlight. Column bracket •... -
Page 5: Tv Controls
TV Controls Stand mount guide Screw hole A Screws TV Controls 1. VOL(+) - This button increases the TV’s volume. If the OSD menu is active, pressing this button will Screw hole B move the selection to the right. 2. VOL(-) - This button decreases the TV’s volume. If the On Screen Display(OSD) menu is active, pressing this button will move the selection to the left. -
Page 6: System Connections
System Connection System Connection NOTE: Please, make sure the inputs and outputs have firm connections before 3. HDMI INPUT connecting power. HDMI input: Use the SOURCE button on the remote control to select HDMI. 1. COMPOSITE A/V INPUT Audio/video input: Use the SOURCE button to select AV on the remote control. Source eg. -
Page 7: Coaxial Output
System Connection System Connection 5. COAXIAL OUTPUT 7. Antenna connection Allows connection of Digital audio systems and Surround Sound. Antenna input impedance of this unit is 75ohm. VHF/UHF 75ohm coaxial cable can be connected to the antenna jack directly Antenna lead with 75 ohm male PAL Connector 75ohm coaxial cable COAXIAL Antenna cable... - Page 8 Remote-Control Unit Button Description POWER Turns the TV on or off to standby mode. Press to mute the sound. Press again to regain sound. POWER MUTE MUTE Press 0‐9 to select a TV channel directly. The cannel will 0‐9 change after 2 seconds. SLEEP Set the delay time for the TV to turn off automatically.
-
Page 9: Osd Menu Operation
OSD Menu Operation Button Description Switches the Teletext window to the background; only the Source Selection CANCEL current page no is visible. Input Press SOURCE button to display the input source list. Sets the transparency of Teletext window. Press the ▼/▲ buttons to select the input source you want DVD: Repeat mode selection. -
Page 10: Picture
OSD Menu Operation OSD Menu Operation ▲/▼ Picture Menu Press buttons to select the option that you want to adjust in the Picture menu, and then press ENTER button or ► button to select.. Press TV MENU button to display the main menu. Press ▼/▲... -
Page 11: Sound
OSD Menu Operation OSD Menu Operation Sound Menu Surround Press MENU button to display the main menu.. Press ▲/▼ button to select Surround, then press ENTER or ► button to enter and press Press ▲/▼ buttons to select Sound in the main menu, then press ENTER button ▲/▼button to select ON or OFF. -
Page 12: Channel
OSD Menu Operation OSD Menu Operation Channel Menu Press the RED button to set the current channel to lock, if the current channel already Press MENU button to display the main menu. locked, press the RED button again cancel the lock. Press ▲/▼... - Page 13 OSD Menu Operation OSD Menu Operation Favorites Manager Press ▲/▼ buttons to select the channel, then press ENTER to open the rename channel menu. Press ▲/▼ buttons to select Favorite Manager, then press ENTER or ► button to enter. Press ▲/▼ buttons to select Channel, press the RED button to set to Fav1. Press ▲/▼...
-
Page 14: Feature
OSD Menu Operation OSD Menu Operation Auto Search - cont’d Feature Menu Press ▲/▼ buttons to select All, Digital or Analogue, then press ENTER or ► button to select. Press MENU button to display the main menu. Press ▲/▼ button to select Feature in the main menu, then press ENTER or ► to enter. Press ENTER to Auto Search the selected channels, otherwise select CANCEL. - Page 15 OSD Menu Operation OSD Menu Operation Lock Channel OSD Language This enables Parental Guidance to be activated and the TV’s Password to be changed. Press ▲/▼ buttons to select OSD Language, then press ENTER or ► button to enter the Press ▲/▼...
-
Page 16: Setup
Press ▲/▼ buttons to select. Caution - this function is only to be used with Software supplied for use with this RV Media TV by Camec. Load the supplied software on to the root directory of an empty USB drive and Recorder Start plug it into the TV ‘s USB interface then press the ENTER key to upgrade. -
Page 17: Epg
OSD Menu Operation OSD Menu Operation Channel List Subtitle Press the LIST button on the remote control to display the channel list menu. Press the subtitle button on the remote control and subtitle menu will appear as follows: Press ◄/► buttons to turn OFF, then press the ENTER button to turn off subtitles. Press ▲/▼... -
Page 18: Pvr
OSD Menu Operation OSD Menu Operation Press ◄/► buttons to select the audio language format - (available audio format: right, 1. The display shows the current channel No. and channel name. 2. The display shows the program’s start and finish time plus program name. stereo, left). -
Page 19: Auto Installation
OSD Menu Operation OSD Menu Operation Auto Installation Step 3: Set the Language Note: Australia is set as the default country If you are turning on the TV for the first time and there are no TV stations stored on the TV, the “Auto Installation”... - Page 20 OSD Menu Operation OSD Menu Operation Step 5: Set up the TV Connection Step 6: Set up the Auto Search The default connection for this TV is “Air”. Only DTV is required for most applications in Australia.
-
Page 21: Media Operation
Media Operation Media Operation Press the “MEDIA” button on the remote control to access this menu. You can also access Thumbnails this menu by selecting “MEDIA” as a Source on the remote Control. Thumbnails mode can be only be used in photo mode and is highlighted in file browser by Press the ◄... -
Page 22: Music
Media Operation Media Operation Music Movie Formats Supported Formats Supported LPCM Type Container Video Decoder MUSIC WAVE ADPCM MPEG-4 ASP WMA STD H.264 WMA Prof MOVIE DivX AAC-LC / HE-AAC Xvid E-AC3 WMV 9 / VC - 1 MPEG-4 SP MPEG AAC-LC MJPEG... -
Page 23: E-Book
Media Operation Media Operation Movie Press ▼/▲ button to select the folder that you want to view on the USB drive. MPEG-4 ASP Press the ENTER button to select a sub folder if required. QuickTime H.264 MJPEG WMV3 / WVC1 MP4S / M4S2 MPEG-2 Video MPEG-4 ASP... -
Page 24: Built-In Dvd Player Operation
Built-in DVD Player Operation Built-in DVD Player Operation (Cont.) - Page 25 Built-in DVD Player Operation Built-in DVD Player Operation (Cont.) (Cont.) INITIAL SETTINGS (DVD) - - Preference Page - - - - Preference Page - - TV Type TV Type NTSC NTSC - - General Setup Page - - - - General Setup Page - - Audio Audio Subtitle...
- Page 26 Built-in DVD Player Operation(Cont.) Built-in DVD Player Operation(Cont.) Title Search [DVD] Subtitle language [DVD] Press [GOTO], then press the number buttons to enter the desired title number. If the DVD you are watching has subtitles, press [SUBTITLE] repeatedly during playback until the desired subtitle language appears on the TV screen. Repeat Playback Press [REPEAT] during playback to activate repeat mode: Example: SUBTITLE 01/03 ENG...
-
Page 27: Cleaning And Maintenance
Troubleshooting Cleaning and Maintenance WARNING! For your personal safety, be sure to disconnect the power adaptor before proceeding with any maintenance or cleaning. Cleaning the TV screen • Do not touch the TV screen with sharp objects. • Use a clean, soft cloth to wipe off any dust and fingerprints from the TV screen surface. -
Page 28: Troubleshooting
Troubleshooting Specifications (Cont.) *As RV Media continually strives to improve its products, Specifications may be subject to change without notice. Warranty This product is backed up with a Nationwide 2-Year Warranty. Camec Warranty Helpline: 1300 654 936 V1.0...
