Beverage Technology
Friedhelm Selbach GmbH
Heisenbergstraße 5
42477 Radevormwald
Phone
+ 49 (0) 21 95 / 68 01-0
Fax
+ 49 (0) 21 95 / 68 01-188
Email
info@selbach.com
Internet http://www.selbach.com
The appliance described here may only be used by properly trained operators and maintenance staff who
have closely studied the instructions for use.

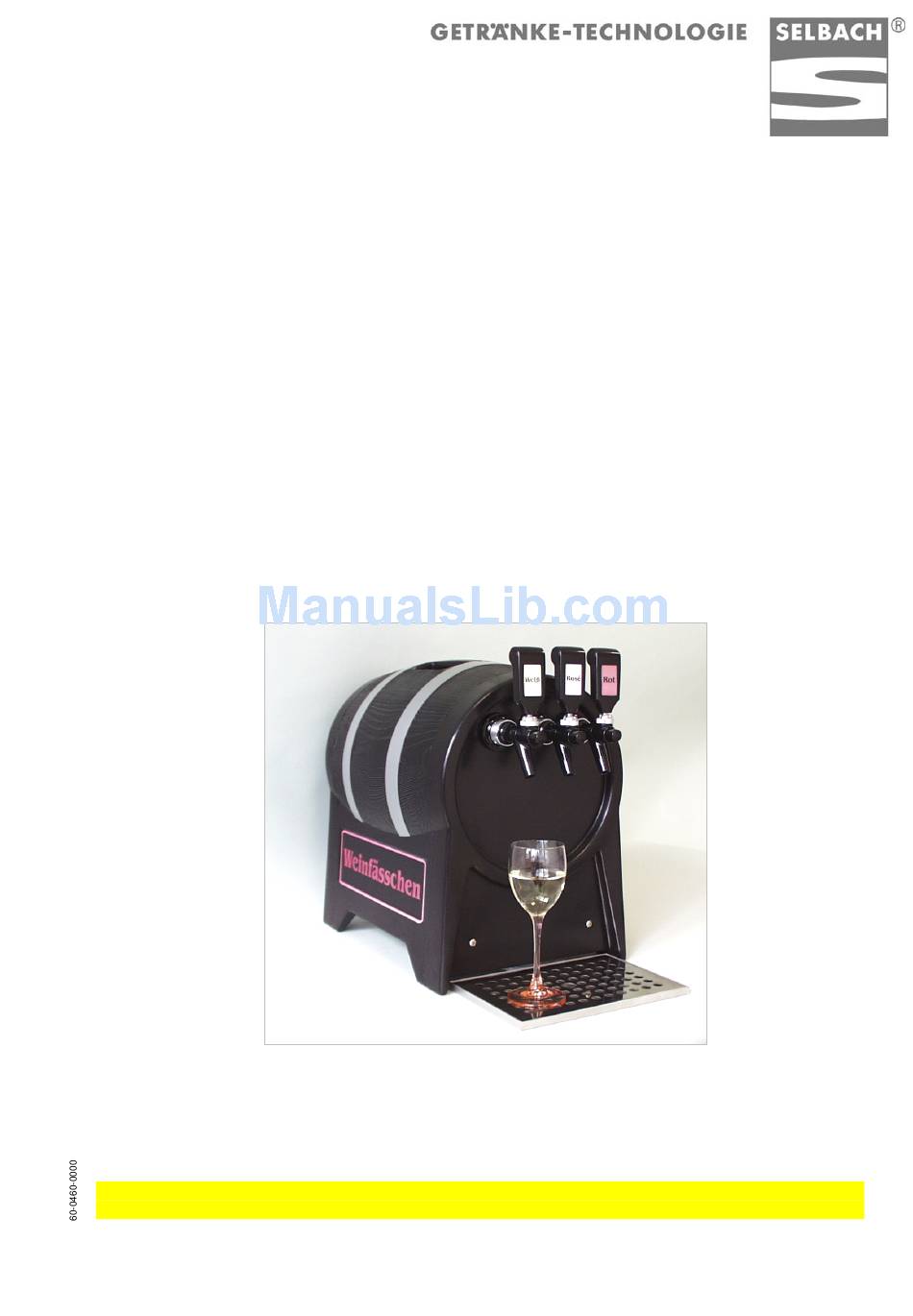

Instructions for use
WT 40 Wine Cooler
Advertisement
Summary of Contents for Selbach WT 40
-
Page 1: Instructions For Use
+ 49 (0) 21 95 / 68 01-188 Email info@selbach.com Internet http://www.selbach.com Instructions for use WT 40 Wine Cooler The appliance described here may only be used by properly trained operators and maintenance staff who have closely studied the instructions for use. -
Page 2: Table Of Contents
Contents PAGE 1.00 SAFETY INSTRUCTIONS .........................3 1.10 A ......................3 SSEMBLY BRINGING INTO SERVICE 1.00 S ..........................3 AFETY INSTRUCTIONS 1.21 Unsafe operation ..........................3 1.22 Safety instructions ..........................3 1.30 S ............................3 PARE PARTS 1.40 T ..........................4 RANSPORT STORAGE 1.50 E .........................4 LECTRICAL CONNECTION 1.51 Wine connection..........................4 1.52 Operation.............................4 1.60 S... -
Page 3: Safety Instructions
1.00 Safety instructions 1.10 Assembly / bringing into service Place the appliance in a level, dry and clean area. Make sure that the connecting cables are correctly inserted into the power points. The connecting cables should not be kinked or squashed. Only original hoses or permitted drinks hoses should be used for wine supply. -
Page 4: T Ransport / Storage
The areas of application for these units are in the restaurant and leisure industries, among others. Selbach cooling appliances are only permitted for the above mentioned areas of application and are therefore not suited to cooling hot fluids, chemicals or similar. -
Page 5: Bringing Into Service
3.00 Bringing into service • Ensure that nitrogen bottle does not fall over by using a bottle holder. • Screw bottle pressure regulator on to the nitrogen bottle. • Connect the reservoir connection component to the beverage holder. • Open the nitrogen pressure container. •... -
Page 6: Maintenance
6.00 Maintenance 6.10 Opening the appliance The four fastening screws on the sides must be removed to open the appliance. The appliance is opened by lifting the plastic cover. Never operate the appliance with the case removed! 6.20 Cleaning the dispensing equipment In parts where the dispensing equipment comes into contact with wine and air alternately, germs that occur in the ambient air may develop. -
Page 7: Error Search
7.00 Error search Error Possible cause Error correction • • • No network connection Create network connection appliance • • Thermostat switched off Switch on thermostat will not • • start Thermostat not switched on Change thermostat* • • Starting device on compressor faulty Change starting device* (relay and condenser) •... -
Page 8: Spare Parts List
8.00 Spare parts list Part Part no. Premix tap chrome 23-0628-0000 Premix tap gilded 23-0628-0008 Drip tray VA 245/170/11 41-0124-0000 Thermostat 50-0133-0000 Thermostat button 50-0103-0000 Please use only original spare parts 9.00 Data on noise emission 70 dB (A) specification from EN 292 Part 2 A1 With gauges that are 70 dB (A) or lower, specification "70 dB (A)"...
