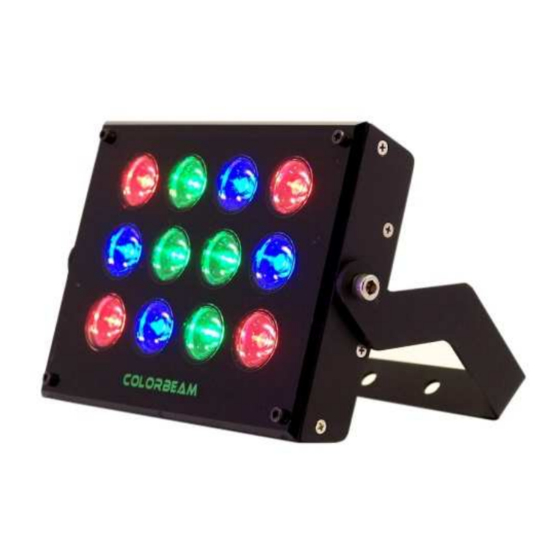

Optima Lighting Coloray Spot 12 User Manual
  1. Manuals
  2. Brands
  3. Optima Lighting Manuals
  4. Projector
  5. Coloray Wash 12
  6. User manual

Optima Lighting Coloray Spot 12 User Manual

Hide thumbs
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual
ORDER DIRECTLY TODAY AT:
USER MANUAL FOR COLORAY SPOT/WASH 12

SAFETY INSTRUCTIONS

Read the instructions in this manual befor
xture.
•
The xture must only be used indoor.
•
Protect the unit from dripping and splashing.
•
Protect data cable from bei ng walked on or pinched.
•
Do not block any of ventilation openings.
•
The xture must be installed by experienced quali ed sta .
•
Do not open the xture and try to repair the xture personally.
•
Please immediately contact the distri butors as the xture is in fault
operation or damage.

Contents/Accessories

One set of colorwash/spot12 includes:
1) 4 x xtures
2) 1 x driver
3) 1 x AC power cord
4) 4 x brackets
5) 8 x tightened screws, washers
6) User manual
INSTILLATION AND OPERATION
www.BulbAmerica.com
or CALL TOLL FREE 888-505-2111
e attempting to install or operate this
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Coloray Spot 12 and is the answer not in the manual?

Questions and answers

Summary of Contents for Optima Lighting Coloray Spot 12

  • Page 1 ORDER DIRECTLY TODAY AT: www.BulbAmerica.com or CALL TOLL FREE 888-505-2111 USER MANUAL FOR COLORAY SPOT/WASH 12 SAFETY INSTRUCTIONS Read the instructions in this manual befor e attempting to install or operate this xture. • The xture must only be used indoor. •...
  • Page 2 1) Unpack the box and fix the fixture with bracket. 2) Connect the cable of the fixture to the driver. 3) Connect the AC power cord to the socket. Note: Make sure the fixtures is properly positioned and securely installed before use.
  • Page 3 Add.4 (DMX value 13-16%) Yellow Add.5 (DMX value 17-20%) Purple Add.6 (DMX value 21-24%) Sky blue Add.7 (DMX value 25-28%) Amber Add.8 (DMX value 29-32%) Lavender Add.9 (DMX value 33-36%) Pink Add.10 (DMX value 37-40%) White Add.11 (DMX value 41-44%) Red, Blue, Pink. Yellow color cycle Add.12 (DMX value 45-48%) Lavender, Sky blue, Green, Purple color cycle Add.13 (DMX value 49-52%) All fixed color cycle.
  • Page 4 Add.21 (DMX value 81-84%) White, Pink, Sky blue, Yellow cover-fade Add.22 (DMX value 85-88%) Green, Purple, Blue, Red cover-fade Add.23 (DMX value 89-92%) All fixed color cover-fade Add.24 (DMX value 93-96%) All fixed color cove-fade Add.25 (DMX value 97-100%) Red, Green, Blue, Yellow wave-fade SIGNAL INDICATORS: Receive DMX LED: The green light emitting diode shows when DMX data is reaching the Coloray 65 driver.

  • Page 5: Wiring Diagrams

    Power requirement: 15 DC Compatible driver: Coloray Driver 65 Optical: Dominant wavelength: R 615nm.G 510nm.B460nm Total output (Lumens): R70. G125. B57 Beam Angle: 25 degree Lenses: Clear tempered glass. Soft-focus tempered glass Mechanical: Housing: Aluminum body in silver and black Data connector: 5-pin XLR with 20AWG cable Weight: 0.85 Kg Dimensions: L157mm×W123mm×H36mm...
  • Page 6 Coloray Spot 12 Model No# CS-12) (mm) Coloray Drive 65 (Model No# CD-65) (mm) ORDER DIRECTLY TODAY AT: www.BulbAmerica.com or CALL TOLL FREE 888-505-2111...

This manual is also suitable for:

Coloray wash 12
