- Page 1 GARDINER TECHNOLOGY LCD User Instructions & LED User Instructions...
-
Page 2: Table Of Contents
User Manual GARDTEC 800 Series Contents User Information ............Using LCD Keypads Introduction ..............User Code Types ............3 - 4 Setting The System ............Unsetting The System ..........Part Setting The System ..........6 - 7 Area Setting .............. -
Page 3: User Information
User Manual GARDTEC 800 Series User Information Customer Name:- Customer Address:- Tick Tick Tick Control Panel Model No of Keypads Keypad 1 Location Type Keypad 2 Location Type Keypad 4 Location Type Keypad 5 Location (840) Type Keypad 6 Location (840) -
Page 4: Introduction
GARDTEC 800 Series Introduction The Gardtec 800 Series of control panels consists of 3 models, the Gardtec 800 , the Gardtec 816 and the Gardtec 840 . Two types of display variation are also available, LCD giving two rows of 16 character English text and LED giving two 7 segment LED digits.Throughout this manual references will be made to the specific model of... -
Page 5: User Code Types
User Manual GARDTEC 800 Series User Code Types Ten types of User Codes are available on the Gardtec 840, and each type allows for different levels of access. In total 47 User codes may be programmed by a Master Level User Code to any of the ten types. -
Page 6: Setting The System
EXIT Now ! 1 2 3 C and a continuous exit tone will sound All Zones ON (1 2 3 C may not show on Gardtec 800 & 816) Exit the premises via the authorised exit route (the exit tone will change if any detectors... -
Page 7: Unsetting The System
Set , STUART ? Press 1, 2 or 3 (for Part 1, 2 or 3), the display will show for example:- (1 2 3 may not show on Gardtec 800 & 816) EXIT Now! 1 2 3 C Part 1... - Page 8 User Manual GARDTEC 800 Series The exit tone may or may not be heard dependant on the system settings. Exit the premises or retire to an unprotected part of the system. At the end of the exit time either the exit sounder will stop or a single beep will be emitted (dependant on system settings).
-
Page 9: Area Setting
User Manual GARDTEC 800 Series Area Setting (using Master or global Main codes) Areas will need to have been set up by the installation company. With the display showing:- < < < < UN-SET > > > > 01 JAN 18 : 58 : 01... -
Page 10: Removing Zones
User Manual GARDTEC 800 Series Removing Zones (Master & Main codes only) If programmed by the installation company individual zones may be removed, this may only be done by a Master or Main level of code. It should be noted that if an Area Main code is being used, only zones associated with that area may be removed. -
Page 11: Testing The System
User Manual GARDTEC 800 Series Testing The System (Master & Main codes only) With the display showing:- < < < < UN-SET > > > > 01 JAN 18 : 58 : 01 Enter a Master or Main level code, Do you want to . -
Page 12: Viewing The Event Log
User Manual GARDTEC 800 Series Whilst in Test mode any zones violated will sound the internal sounder (if it has not been silenced) and show on the display. When you have finished testing the system press 0 twice, the display will show:- <... -
Page 13: Changing The Chime Status
User Manual GARDTEC 800 Series This is the most recent event in the log. Whilst viewing the Log, Pressing NO will move back to the previous event. Pressing YES will move forward to the next event. Pressing 7 will take you to back to the last event of the previous day. - Page 14 User Manual GARDTEC 800 Series Press YES the display will show for example:- Chime is Off ok ? Or:- Chime is On ok ? Press NO to change the status of the Chime, then press YES, the display will show:- Do you want to .
-
Page 15: Programming User Codes
User Manual GARDTEC 800 Series Programming User Codes (Master code only) The charts on pages 2 & 34 should be completed by the engineer/user for future reference of what codes have been allocated on your system. Under no circumstances should the actual user code be written down. - Page 16 User Manual GARDTEC 800 Series Enter the code you require (codes may be 4, 5 or 6 digits) followed by YES. (Entering 000000 will delete an existing code) Note: If the code already exists or is a duress of another code an error will be shown,...
- Page 17 User Manual GARDTEC 800 Series Referring to the character map enter the required character (pressing the 3 key will display 'G', pressing it again will show 'H' and again will show 'I '), once the correct character is displayed press YES and the display will move on to the next position.
-
Page 18: Programming Time & Date
User Manual GARDTEC 800 Series Programming Time & Date With the display showing:- < < < < UN-SET > > > > 01 JAN 18 : 58 : 01 Enter a Master Code, the display will show:- Do you want to . . -
Page 19: User Initiating Remote Access
User Manual GARDTEC 800 Series User Initiating Remote Access (Optional) Access Remote allows your installation company to examine your system and re- program system settings as you need the changes without the need for an engineer to visit your premises. -
Page 20: Resetting After An Alarm
EXIT Now ! 1 2 3 C (1 2 3 may not show on Gardtec 800 & 816) All Zones ON Enter the code again to abort the setting... - Page 21 User Manual GARDTEC 800 Series To reset the system with an anti-Code, contact the central station or engineer (as instructed by the installation company) and quote the source given by the display. The central station or engineer will give a return Anti-Code ( this may contain the YES &...
-
Page 22: Using Led Keypads
User Manual GARDTEC 800 Series Using LED Keypads This section is dedicated to using LED keypads (Twin Seven Segment). Setting The System With the display showing ' Un ' Enter the User Code (followed by YES if Master or Main type code has been used). -
Page 23: Part Setting The System
User Manual GARDTEC 800 Series Part Setting The System (using Master & Main type codes) With the display showing ' Un ' Enter a Master or Main type code The display will show ' SE ' (flashing). Press 1, 2 or 3 (for Part 1, 2 or 3) the... -
Page 24: Area Setting
User Manual GARDTEC 800 Series Area Setting (using Master or Global Main codes) With the display showing ' Un ' Enter a Master or global Main code. The display will show 'SE' (flashing) Press YES to start setting the system, the exit tone will sound. -
Page 25: Testing The System
User Manual GARDTEC 800 Series r- ' The display will show ' If you wish to remove other zones return to step 5 To escape press 0 the display will show ' SE ' (flashing). Press YES to start setting the system. -
Page 26: Viewing The Event Log
User Manual GARDTEC 800 Series Viewing The Event Log (Master code only) With the display showing ' Un ' enter a Master code. The display will show 'SE ' (flashing), press NO three times. The display will show ' L o ' (flashing). -
Page 27: Changing The Chime Status
User Manual GARDTEC 800 Series Changing The Chime Status (Master code only) The Chime zones will have previously been programmed by your installation company. A Master level code may change the status of the chime between On and Off. To do... -
Page 28: User Initiating Remote Access
User Manual GARDTEC 800 Series If you wish to program other User codes return to step 4 To return to the Unset condition press 0 Programming Date & Time Note: When using LED keypads the Date & time will only be displayed when the 3 key is pressed whilst viewing the Log. -
Page 29: Resetting After An Alarm
User Manual GARDTEC 800 Series Resetting After An Alarm Your installation company will have programmed the reset modes for your system so that it complies to your insurance company and legislation requirements. Your installation company will have informed you as to the type of reset that your system is set for. -
Page 30: Led Display Glossary
User Manual GARDTEC 800 Series LED Display Glossary Displays During Normal Use 'Er' Reset is required by a higher level code or an error has 'Un' System Unset. occurred whilst programming. 'E=' The system is full setting. 'Ac' Reset by Anti-Code is required. - Page 31 User Manual GARDTEC 800 Series Displays Whilst Viewing Log '04' Alarm occurred because of zone 4 was activated. '04' Alarm occurred because of tamper on zone 4. '04' (flashing) zone 4 was removed. 'Lr ' Telephone Line restored. 'Pr ' Power restored.
-
Page 32: System Attributes
User Manual GARDTEC 800 Series System Attributes Zone No. Zone Type Descriptor(816/840) Areas(840) Part Info Example Front Door 1&2 A1 Pt2 Page... - Page 33 User Manual GARDTEC 800 Series Zone No. Zone Type Descriptor(816/840) Areas(840) Part Info Page...
-
Page 34: Service Record
User Manual GARDTEC 800 Series Zone No. Zone Type Descriptor(816/840) Areas(840) Part Info Service Record Date Comments Signature Alarm Reset Type:- Tamper Reset Type:- Service Company:- Tel:- Fax:- Page... -
Page 35: User Chart
User Manual GARDTEC 800 Series User Chart Please use this chart to indicate what user names have been programmed onto your system and those that are in use. In Use Name In Use Name User 1 User 25 User 2... -
Page 36: Ace Instructions

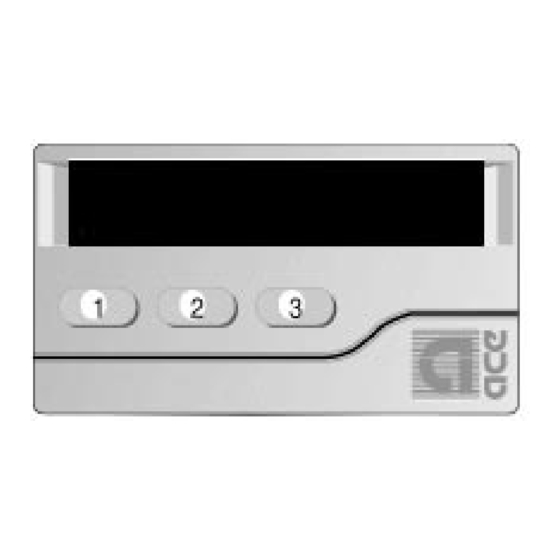

GARDTEC 800 Series ACE User Instructions ACE (Advanced Control Equipment) allows control of your Gardtec 800 Series system via Infra-Red Remote control. Ace is available built in to a range of keypads or as a stand alone unit, control is via neat remote keyfob(s). -
Page 37: Programming Ace Keyfobs Onto Your System
User Manual GARDTEC 800 Series Programming ACE Keyfobs onto your System Two modes are available for ACE, these are ‘Normal’ & ‘High’ Security. Please check the User Information Chart on page 2 noting the mode of your ACE control. Normal Security... - Page 38 GARDINER TECHNOLOGY Gardiner Technology Ltd Queensway, Rochdale, Lancashire, OL11 1TQ United Kingdom Internet: http://www.gardiner-technology.com e-mail: sales@gardiner-technology.com PR4345 Rev1.1...
