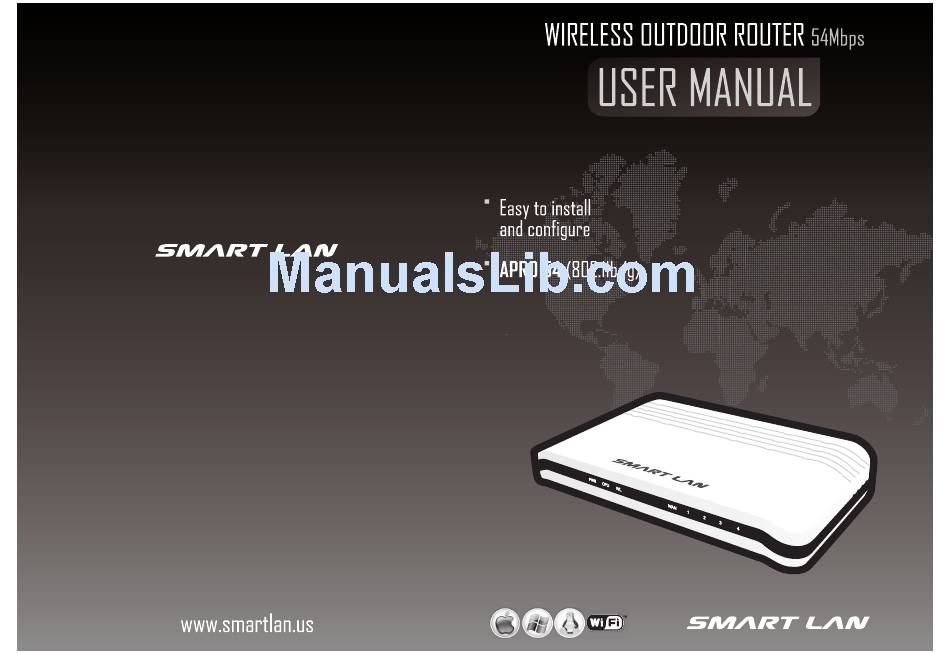

Smart Lan APR0 54 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APR0 54 and is the answer not in the manual?

Questions and answers

Summary of Contents for Smart Lan APR0 54

  • Page 2 54M Wireless Router User Manual IP0489 Ver1.0.0.c...

  • Page 3: Table Of Contents

    Sectionone:introduction ………………………………… ………… ……………1 1.1. About 54M Wirele Router……….………………….. …………………..1 1.2. Package contents……….………………….. …………………....1 1.3. Features ………………………………………………………………………1 Section two:Hardware installation………………………………………………..2 2.1.Panel Layout…………………………………………………………………..2 2.11.The Front Panel………………………………………........2 2.12.The Rear Panel………………………………………………………………3 2.2. The System Requirement…………………………..……………………….4 2.3. Installation Environment Requirement……………….......4 2.4. Connectting The Router……………………………………………………..4 Section Three: Quick Installation Guide………………………………………….5 3.1.
  • Page 4 4.2 7.WPS Setting……………………………………………………....17 4.3 .TCP/IP settings………………………………………….......18 4.3.1. LAN Interface…………………………………....………………18 4.3.2. WAN Interface……………………………………………………………..19 4.4 .Firewall………..………………………………………………………………..20 4.4.1. Port Filtering………………………………..…........20 4.4.2. IP Filtering………………………………………........20 4.4.3.MAC Filtering……………………………………....………………..21 4.4.4. Port Forwarding ……………………………………........21 4.4.5. URL Filtering …………………………………….…….......22 4.4.6. DMZ………………………………………..........22 4.4.7.AntiARP Cheating…………………………………………………………..23 4.5. Management……………………………………………………………………23 4.5.1 Status……………………………………..………………………………..23 4.5.2. Statistics…………………………...………………….………………………24 4.5.3.

  • Page 5: Sectionone:introduction

    Thank you for purchasing 54M Wireless Broadband Router. This user guide will assist you with the installation procedure. .1 About the 54M Wireless Router 54M Wireless Router is a hybrid design prod uct which combines Ethernet technology and wireless access into a single stand-alone unit. The device allows you take advantages of both mobility and fast connection.

  • Page 6: Section Two:hardware Installation

    Complies with IEEE802.11g, IEEE802.11b, IEEE802.3, IEEE802.3u standards 1 10/100M Auto-Negotiation WAN RJ45 port, 4 10/100M Auto-Negotiation LAN RJ45 ports Supports Auto MDI/MDIX Supports Wireless Roaming, can move among different AP and no break Supports 54/48/36/24/18/12/9/6/11/5.5/3/2/1Mbps wireless LAN data transfer rates Provides 64/128 bit WEP encryption security Supports wireless Relay/Bridging/WDS/WDS+AP mode...

  • Page 7: The Rear Panel

    Name Action Description No Power Power Power on The router is initialising Flashing The router is working properly The router has a hardware error The Wireless Radio function is disabled Flashing The Wireless Radio function is enabled There is no device linked to the corresponding port There is a device linked to the corresponding port but 1/2/3/4 activity...

  • Page 8: The System Requirement

    1.Use the Factory Default Reset button: First, turn on the router's power. Second, press and hold the default reset button, until the system LED lights up(about 5 seconds). Last, release the reset button and wait for the router to reboot. Notice: Ensure the router is powered on before it restarts completely.

  • Page 9: Section Three: Quick Installation Guide

    er connecting the 54M Wireless Router into your network, you should con figure it. This chapter describes how to configure the basic functions of your 54M Wireless Router. These procedures only take you a few minutes. You can access the Internet via the router immediately after successfully configured.

  • Page 10: Quick Setup Wizard

    Open a command prompt, and type ping 192.168.1.254, then press Enter. If the result displayed is similar to that shown in the top of figure, the connection between your PC and the router has been established. If the result displayed is similar to that shown in the top of figure, it means that your PC has not connected to the router.
  • Page 11 Windows, Macintosh or UNIX OS with a web browser. Connect to the router by typing http://192.168.1.25 in the address field of web browser. After a moment, a login window will appear similar to that shown in Figure. Enter admin for the User Name and Password, both in lower case le tters.
  • Page 12 Click SetupWizard, the SetupWizard will appear. The router supports three modes: gateway, bridge, wireless ISP. You can setup different odes to LAN and WLAN interface for NAT and bridging function. Click next, Time Zone Setting will appear. You can select the time zone what you need. - 8 -...
  • Page 13 Click next, LAN Interface setup will appear. In this page, you can set IP address, Subnet Mask. IP Address - Enter the IP address of your router in dotted-decimal notation (factory default: 192.168.1.254). Subnet Mask - An address code that determines the size of the network. Normally use 255.255.255.0 as the subnet mask.
  • Page 14 If you choose " DHCP Client", the router will automatically receive the IP parameters from your ISP without needing to enter any parameters. If you Choose "PPTP", the Static IP settings page will appear, shown in the figure. You can get IP Address Subnet Mask, server IP Address, User Name and Password from your ISP you Choose "Static IP", the Static IP settings page will appear, shown in figure.
  • Page 15 Note: The IP parameters should have been provided by your ISP. dress - This is the WAN IP address as seen by external users on the Internet IP Ad (including your ISP). Enter the IP address into the field. Subnet Mask - The Subnet Mask is used for the WAN IP address, it is usually 255.255.255.0 efault Gateway - Enter the gateway into the box if required.
  • Page 16 【This p age is used to confi gure these parameters】 - Indicates the current mode (2.4GHz(G)-54Mbps (802.11g), 2.4GHz(B)11Mbps B nd (802.1 1b)). 2.4GHz(G+B), which allows both 802.1 1g and 802.11b wireless stations to conne ct to the router. Mode-Default is AP,you can select Client,WDS,AP+WDS Network Type-Default is Infrastructure,when mode is client,Network Type may be AD-HOC SSID - Enter a value of up to 32 characters.

  • Page 17: Operation Mode

    3.3 Operation mode Gateway ： (default) In this mode, the device is supposed to connect to internet via DSL/Cable Modem. The NAT is enabled and PCs in LAN ports share the same IP to ISP thro ugh WAN port. The connection type can be setup in WAN page by using PPPOE, DHCP client, PPTP client or static IP.

  • Page 18: Wireless Basic Settings

    4.2 Wireless Setting it contains Wireless Basic settings, Advance Settings, security, Access Control, WDS Settings, Site Survey. 4.2.1 Wireless Basic settings Band: Indicates the current mode (2.4GHz(G)-54Mbps (802.11g), 2.4GHz(B)11Mbps (802.11b)). 2.4GHz(G+B), which allows both 802.11g 802.11b wireless stations to connect to the router. Mode: Default is AP,you can select Client,WDS,AP+WDS Network Type: Default is Infrastructure,when mode is client,Network Type should be setting AD-HOC...

  • Page 19: Wireless Security Setup

    These settings are only for mo re technically advanced users who have a sufficient knowledge about wireless LAN. These settings should not be changed unless you know what effect the changes will have on your Access Point. 4.2.3 Wireless security setup This page allows you setup the wireless security.

  • Page 20: Wireless Access Control

    can either use an external authentication server (e.g., RADIUS) and EAP just like IEEE 802.1X is using or pre-shared keys without need for additional servers. Wi-Fi calls these "WPA-Enterprise" and "WPA-Personal", respectively. Both mechanisms will generate a master session key for the Authenticator (AP) and Supplicant (client station). 802.1X: The original security mechanism of IEEE 802.11 standard was not designed to be strong and has proven to be insufficient for most networks that require some kind of security.

  • Page 21: Wireless Site Survey

    4.2.6 Wireless Site Survey This page provides tool to scan the wireless network. If any Access Point or IBSS is found, you could choose to connect it manually when client mode is enabled. 4.2.7 WPS Setting This page allows you to change the setting for WPS (Wi-Fi Protected Setup). Using this feature could let your wireless client automically syncronize its setting and connect to the Access Point in a minute without any hassle.

  • Page 22: Tcp/Ip Settings

    4.3 TCP/IP Setting 4.3.1 LAN Setting Lan Interface setup This page is used to configure the parameters for local area network which connects to the port of your Access Point. Here you may chang e the setting for IP addresss, subnet mask, DHCP, etc..

  • Page 23: Wan Interface

    4.3.2WAN Interface This page is used to configure the parameters for Internet network which connects to the WAN port of your Access Point. Here you may change the access method to static IP, DHCP, PPPoE or PPTP by click the item value of WAN Access type. AN Access Type,User name, password, Service: you can refer to 3.2 Quick Installation Guide.

  • Page 24: Firewall

    Internet computers, to access the local host resources or devices as needed. UPnP devices can be automatically discovered by the UPnP service application on the LAN. Enable L2TP pass through on VPN connection: Enable IPsec pass through on VPN connection: Enable PPTP pass through on VPN connection: 4.4 Firewal 4.4.1 Port Filtering...

  • Page 25: Mac Filtering

    4.4.3 MAC Filtering Entries in this table are used to restrict certain types of data packets from your local network to Internet through the Gateway. Use of such filters can be helpful in securing or restricting your local network Enable MAC Filtering: select it,you can modify MAC filter. MACAddress:type the MACAddress,for example:00:e0:4e:3f:2d:c5.

  • Page 26: Url Filtering

    machine behind the NAT firewall. These settings are only necessary if you wish to host some sort of server like a web server or mail server on the private local network behind your Gateway's NAT firewall. Enable MAC Address:select it,you can modify MAC Address Filtering.. IP Address: The IP Address of the PC running the service application Protocol - The protocol used for this application, either TCP, UDP, or both (all protocols supported by the router).

  • Page 27: Antiarp Cheating

    Click apply changes,complete set DMZ. .4.7 AntiARP Cheating This page can set the device to send packets to other hosts to refresh their ARP cache, and can add static IP-MAC address entry to local ARP cache. Use of this function can be helpful in preventing ARP virus or fake MAC address 4.5 Management 4.5.1 Status...

  • Page 28: Statistics

    4.5.2 Statistics his page shows the packet counters for transmission and reception regarding to wireless and Ethernet networks. 4.5.3 Dynamic DNS Setting - 24 -...

  • Page 29: Time Zone Setting

    Dynamic DNS is a service, that provides you with a valid, unchanging, internet domain name (an URL) to go with that (possibly everchanging) IP-address. DDNS lets you assign a fixed host and domain name to a dynamic Internet IP Address. It is useful when you are hosting your own website, FTP server, or other server behind the router.

  • Page 30: Log

    Click apply changes,DOS take effect. 4.5.6 Log This page can be used to set remote log server and show the system log. 4.5.7 Upgrade Firmware This page allows you upgrade the Access Point firmware to new version. Please note, do not power off the device during the upload because it may crash the system - 26 -...

  • Page 31: Save/Reload Settings

    4.5.8 Save/Reload settings This page allows you save current settings to a file or reload the settings from the file which was saved previously. Besides, you could reset the current configuration to factory default. 4.5.9 Password setup This page is used to set the account to access the web server of Access Point. Empty user name and password will disable the - 27 -...

  • Page 32: Appendix 1 Faq

    1. How do I configure the router to access Internet by ADSL users? (1) First, configure the ADSL modem configured in RFC1483 bridge model. (2) Connect the Ethernet cable from your ADSL modem to the WAN port on the router. The telephone cord plugs into the Line port of the ADSL modem.

  • Page 33: Appendix 2 Specification

    (1) Make sure the "Disable Wireless LAN Interface " is not select. Make sure that the wireless stations' SSID accord with the router's SSID. Make sure the wireless stations ha ve right KEY for encryption when the router is encrypted. If the wireless connection is ready, but you can’t access the router, check the IP Address of your wireless stations.

  • Page 34: Appendix 3 Glossary

    endix 3 : Glo ssary 802.11b - The 802.11 b standard specifies a wireless networking at 11 Mbps u sing irect-s equence sp read- spectrum (DSSS) technolog and operating in the unli censed radio spectrum a t 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to as Wi-Fi networks.
  • Page 35 D - A Service Set Identification is a thirty-two character (maximum) alphanumeric key identifying a wireless local area network. For the wireless devices in a network to communicate with each other, all devices must be configured with the same SSID. This s typically the configuration parameter for a wireless PC card.
