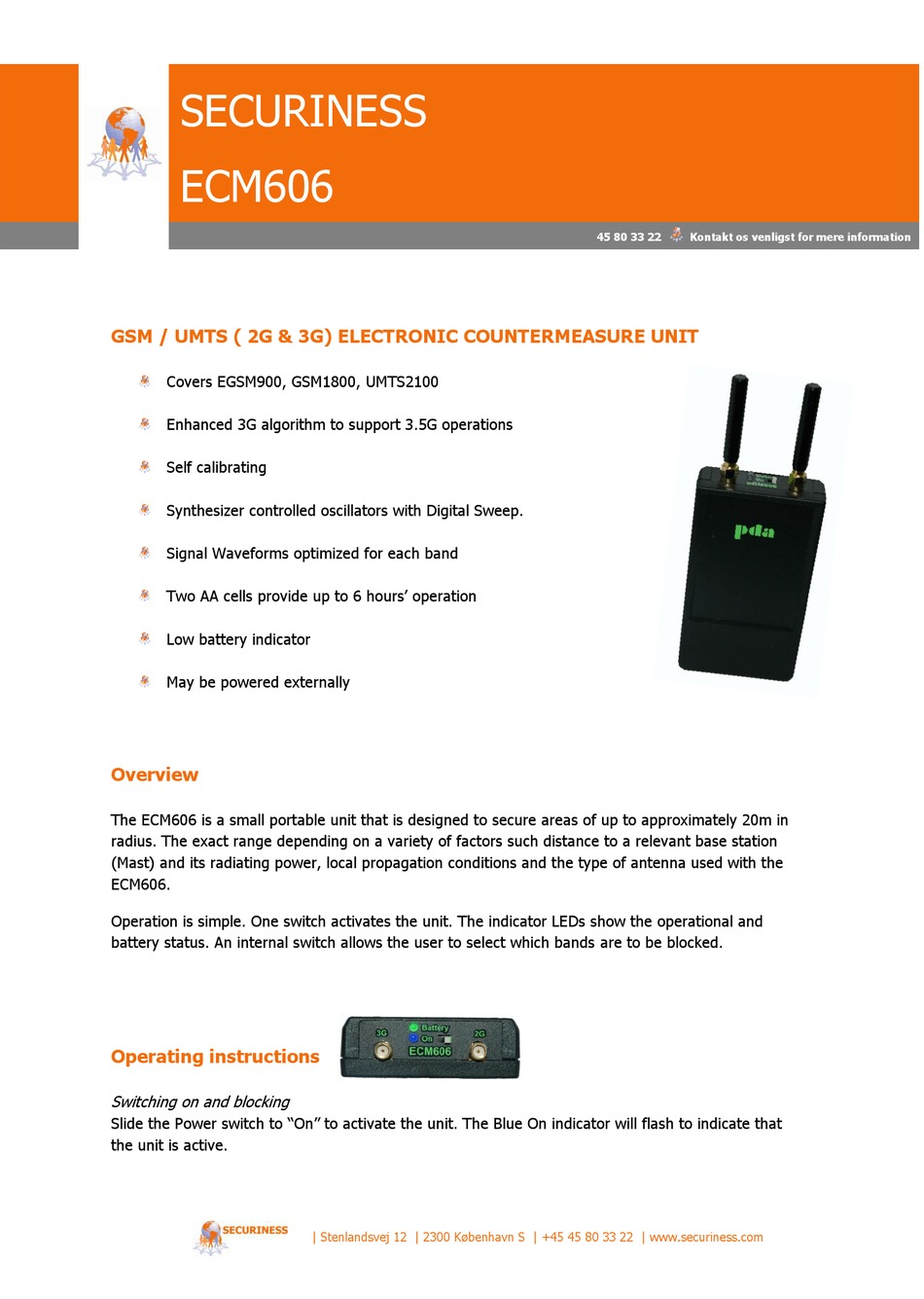

SECURINESS

ECM606

GSM / UMTS ( 2G & 3G) ELECTRONIC COUNTERMEASURE UNIT

Covers EGSM900, GSM1800, UMTS2100

Enhanced 3G algorithm to support 3.5G operations

Self calibrating

Synthesizer controlled oscillators with Digital Sweep.

Signal Waveforms optimized for each band

Two AA cells provide up to 6 hours' operation

Low battery indicator

May be powered externally

The ECM606 is a small portable unit that is designed to secure areas of up to approximately 20m in

radius. The exact range depending on a variety of factors such distance to a relevant base station

(Mast) and its radiating power, local propagation conditions and the type of antenna used with the

ECM606.

Operation is simple. One switch activates the unit. The indicator LEDs show the operational and

battery status. An internal switch allows the user to select which bands are to be blocked.

Operating instructions

Switching on and blocking

Slide the Power switch to "On" to activate the unit. The Blue On indicator will flash to indicate that

the unit is active.

Stenlandsvej 12 2300 København S +45 45 80 33 22 www.securiness.com

45 80 33 22

Kontakt os venligst for mere information

Table of Contents

Do you have a question about the ECM606 and is the answer not in the manual?

Page 1: Operating Instructions
May be powered externally Overview The ECM606 is a small portable unit that is designed to secure areas of up to approximately 20m in radius. The exact range depending on a variety of factors such distance to a relevant base station (Mast) and its radiating power, local propagation conditions and the type of antenna used with the ECM606.
Page 2: Specifications
The unit comes as standard with 2 x omni-directional stubby antenna. This antenna gives good around coverage and is the most convenient for most mobile applications. Other types of antennas are available; please consult with SECURINESS for the most appropriate product from its growing range of purpose designed antennas.
Page 3 This combination allows the units to function as a responsive/reactive jammer. External Amplifiers The output of the ECM606 may be fed into a power amplifier if several watts of jamming power is needed. The in-band(s) return loss should be better than 2:1 at 50 ohms.
