    Welcome, and thank you for purchasing Teleste’s video networking products Contents Optical switch introduction ............................. 1 General ................................1 Frame installation ............................... 1 Stand-alone installation ............................1 Fibre connection ..............................1 Operation ................................... 2 Link Source Alarm (LSA) ............................ 2 LSA commands ..............................
  • Page 3: Optical Switch Introduction

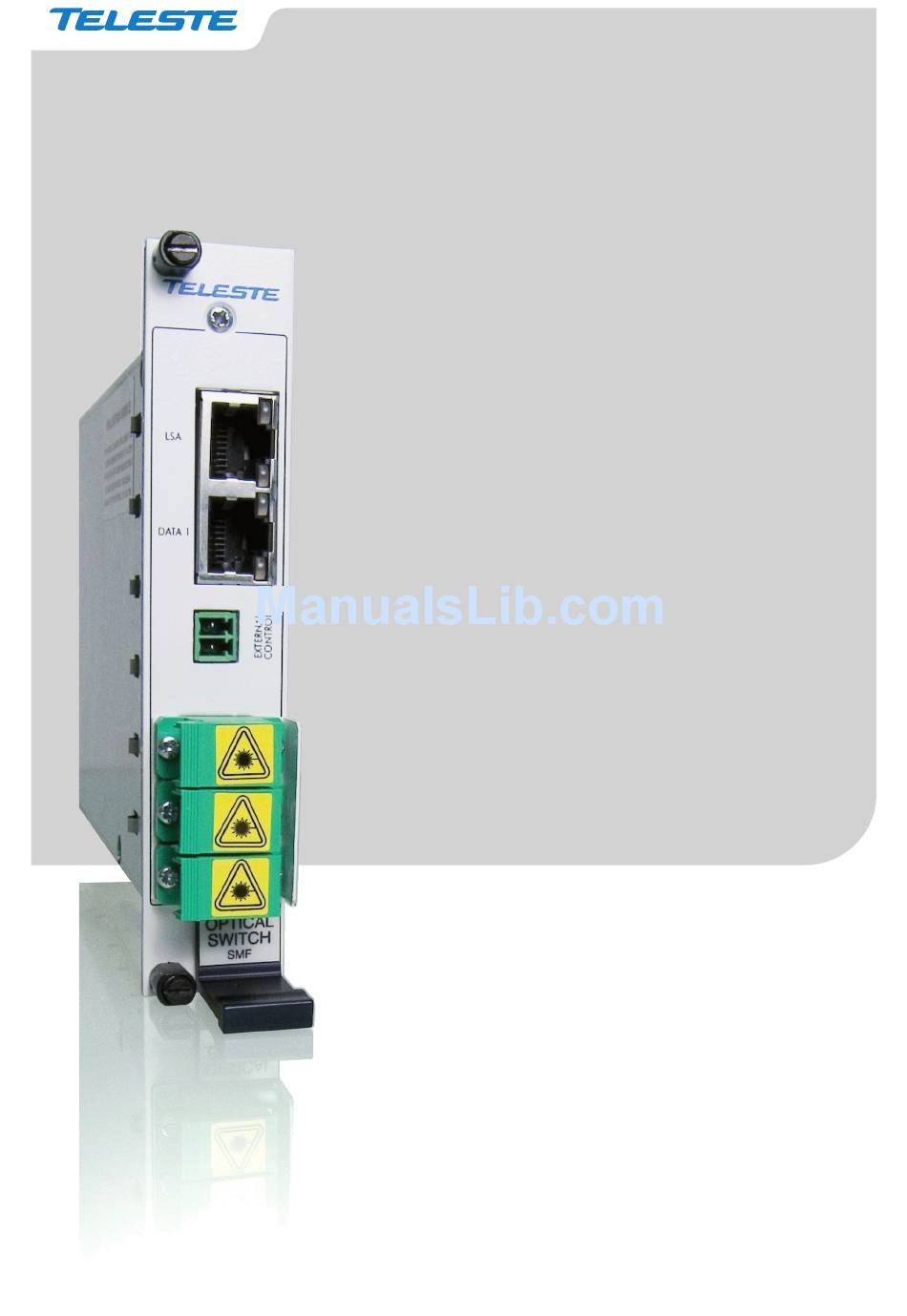

    Optical switch introduction Optical switch for CEV and CFOx61/x71 series video modems. General Optical switch is compatible with CEV / CFOx61/x71 series video modems and is used to achieve the fi bre path redundancy. The optical bandpass covers CWDM wavelenghts 1460...1620 nm and standard 1310 nm window.
  • Page 4: Operation

    DATA 1 (loopthru) connector when using a connection cable between CEV / CFOx61/x71 series video modem and optical switch. The recommended connection cable is Teleste CIC702 (RJ-45/RJ-45). LSA commands CEV / CFO16x/17x series video modem includes a command line interface (CLI) for confi...
  • Page 5: Settings

    Settings Wiring example When the connection cable is connected between video modem and optical switch, the video modem’s DATA 1 and contact closure connections are available via the optical switch’s DATA 1 (loopthru) connector. OPTICAL TRANSMITTER Connection cable (direct connected e.g.
  • Page 6: Lsa Switching Logic

    LSA switching logic Initial Normal state (Switch position: Com - port A) state Link fails User definable time (Waiting time in seconds before LSA delay time the switch operates after first detected Link Loss Alarm) Link gets up Link doesn't LSA control activated (Switch position: Com - port B) get up...
  • Page 7: Application Example

    Application example ch11 ch12 ch13 Optical splitters Optical Switches ch11 Add/drops Combiner Primary link ch12 Combiner Secondary link ch13 Technical specifi cations Optical General Wavelenght range 1310 ±50 and 1460...1620 nm Supply voltage 12 V / 30 mA Insertion loss 1.0 dB Power consumption (max) 400 mW...
  • Page 8: Weee Directive

    This obligation applies to the equipment put on the market in EU after 13 August 2005. Teleste devices which belong to the scope of the directive have been marked with the separate collection symbol shown below. The marking is according to the standard EN 50419.
