CPS DC-UPS SERIES User Manual

INTRODUCTION

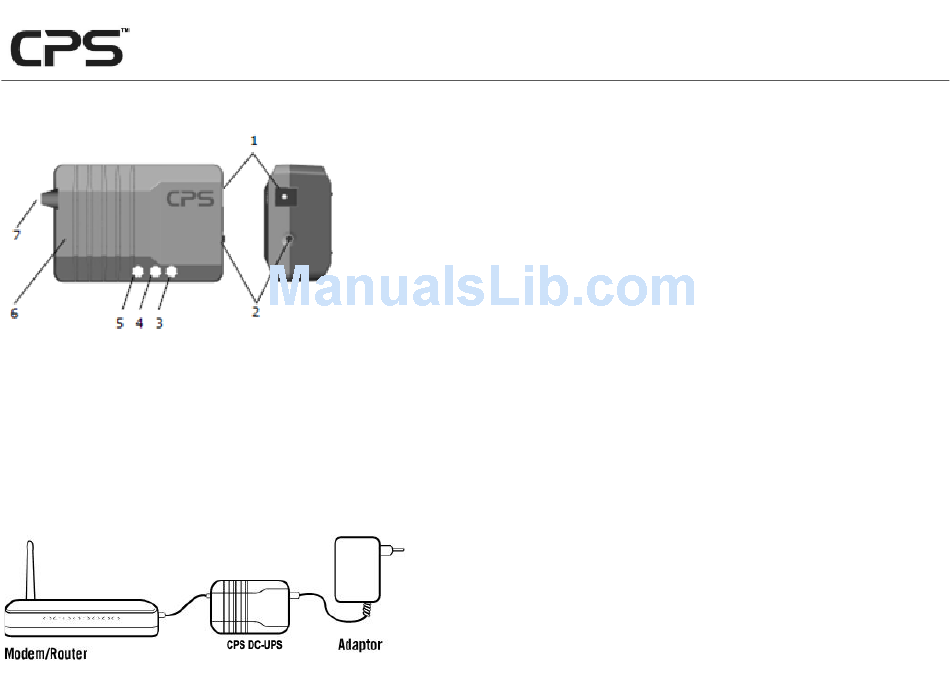

Dimensions L x W x H (mm): 84 x 58 x 35
. Input connector (5.5/2.1mm DC socket)
1
2. Backup mode shutdown button
3. Orange LED - Battery backup or adaptor power failure
4. Red LED - Flashing: Battery low; Still: Protection alarm
5. Blue LED - Protection mode ON
6. Green LED - Battery charging (off When Fully Charged)
7. Output cable
Below shows a typical Router application.
ROUTER DC-UPS SERIES USER MANUAL
INSTALLATION & START UP
1. Firstly, unplug the adaptor from the power source. Disconnect the
adaptor from the equipment.
2. Connect the DC-UPS between AC/DC adaptor and the device (shown as
diagram on the left).
3. Switch on the adaptor power, check if the blue & green LED‟s are
illuminated.
4. Turn the adaptor power off, and check if UPS works in normal backup
mode.
5. Turn the Adaptor power on again, and check if UPS restores to Line
Mode (Blue LED light remain On, Yellow LED Off).
SHUT DOWN UPS
1. Switch off or unplug the adaptor power source.
2. Press and hold the shutdown button for 2 seconds and then release, the
status LED‟s will turn off.
IMPORTANT NOTES
1. Always turn the adaptor power on after the device/s are connected to
the UPS to prevent current over range protection mode shutdown.
2. If UPS shows protecting alarm (Red LED), turn off adaptor power first,
and turn the power back on after the UPS resets.
3. If the UPS repeats the protecting mode, recheck the starting sequence
and the equipment loading power rating. (Max 10 Watts)
