Mykey 2300 Installation Instructions
(NOTE : Please read the instructions before commencing installation)

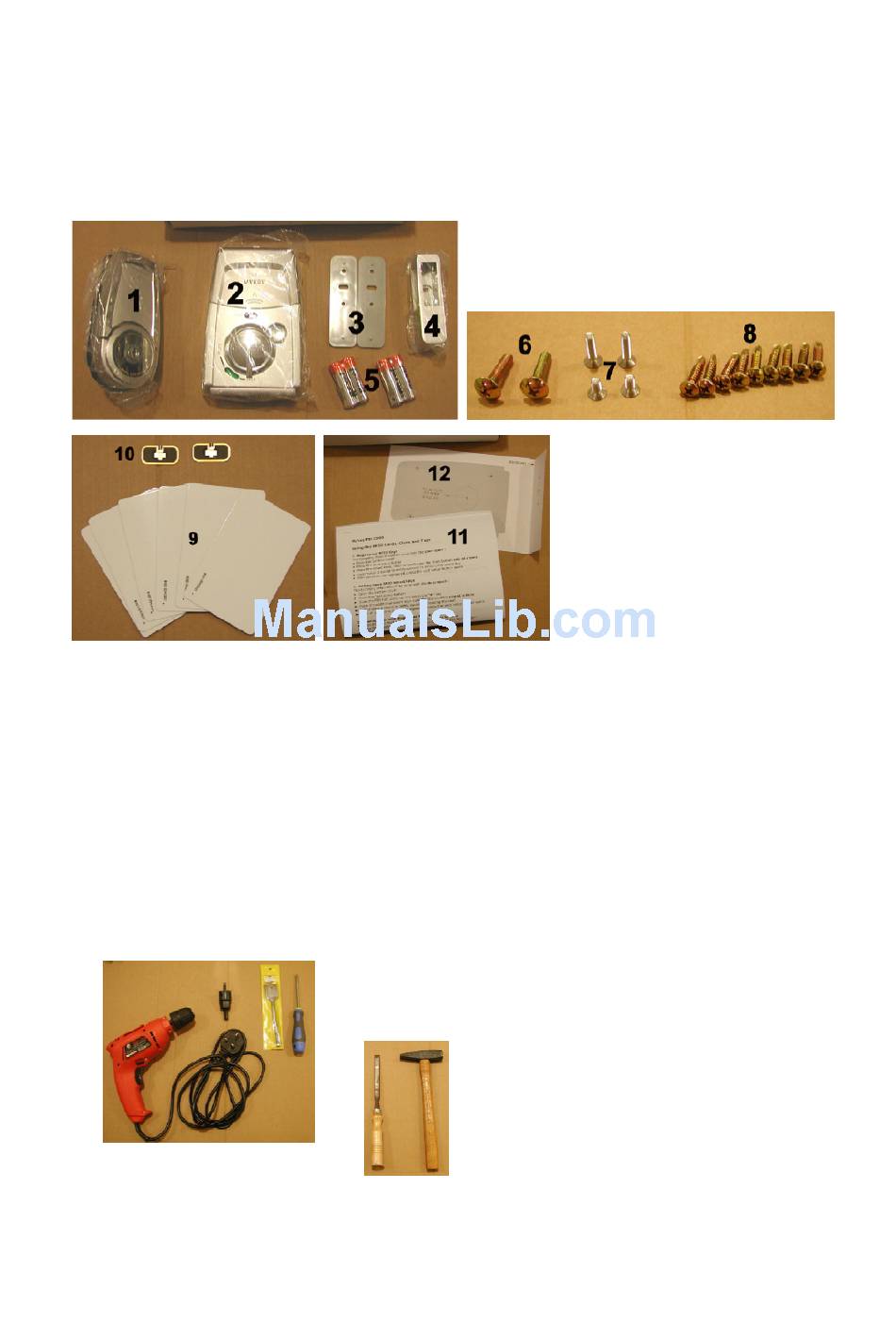

When you receive your box, please check that you have all the following components.
1. Outer Front Body
2. Inner Back Body
3. 2 Plastic Pads (1 Thin & 1 Thick)
4. Latch Housing
5. 4 AA Batteries
6. 2 pc Front Body Mounting Screws
7. 4 Back Body Screws (2 Long & 2 Short)
8. 9 pcs Mounting Screws
9. 6 RFID Cards
10. 2 RFID Chips
11. English Instructions, and
12. Installation Template
Additional Tools required (not supplied) :
1. Electric Drill
2. 30mm or 32mm Coring Drill Bit
3. Cross-Head Screwdriver
Hammer and Chisel may be required if any door
trimming has to be removed.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for MyKey 2300
- Page 1 Mykey 2300 Installation Instructions (NOTE : Please read the instructions before commencing installation) When you receive your box, please check that you have all the following components. 1. Outer Front Body 2. Inner Back Body 3. 2 Plastic Pads (1 Thin & 1 Thick) 4.
- Page 2 Installation for doors where door frame is even with the door Front Body Location On the outside, place the Front Body mounts touching the door to locate the position of the lock hole. Mark the position with a pencil. Measure the distance from the edge of the door. It should be between 35mm to 90mm.
- Page 3 Secure the Base Plate to the door with at least 4 screws at the four corners. Connect the 2 wires (from the Front Body) to the connectors on the Back Body.
- Page 4 With the Back Body Screws, secure the Back Body to the Base Plate. Remove the Battery Cover to see where the long screws are screwed through. The short screws are located at the top and bottom of the Back Body. There are 4 Screws in total. Rotate the Mortise Lever to put the latch in the Locked position.
- Page 5 From the inside and the outside, this is what it should look like. Put the batteries in place and check that the Latch locks properly when the door is closed. Follow the instructions for the registration and usage of your new lock. Installation for doors where door frame is NOT even with the door Use the given template to locate the position of the lock hole.
- Page 6 The finished installation will look like this on the inside. Congratulations on installing your brand new Mykey 2300 Digital Door Lock.
