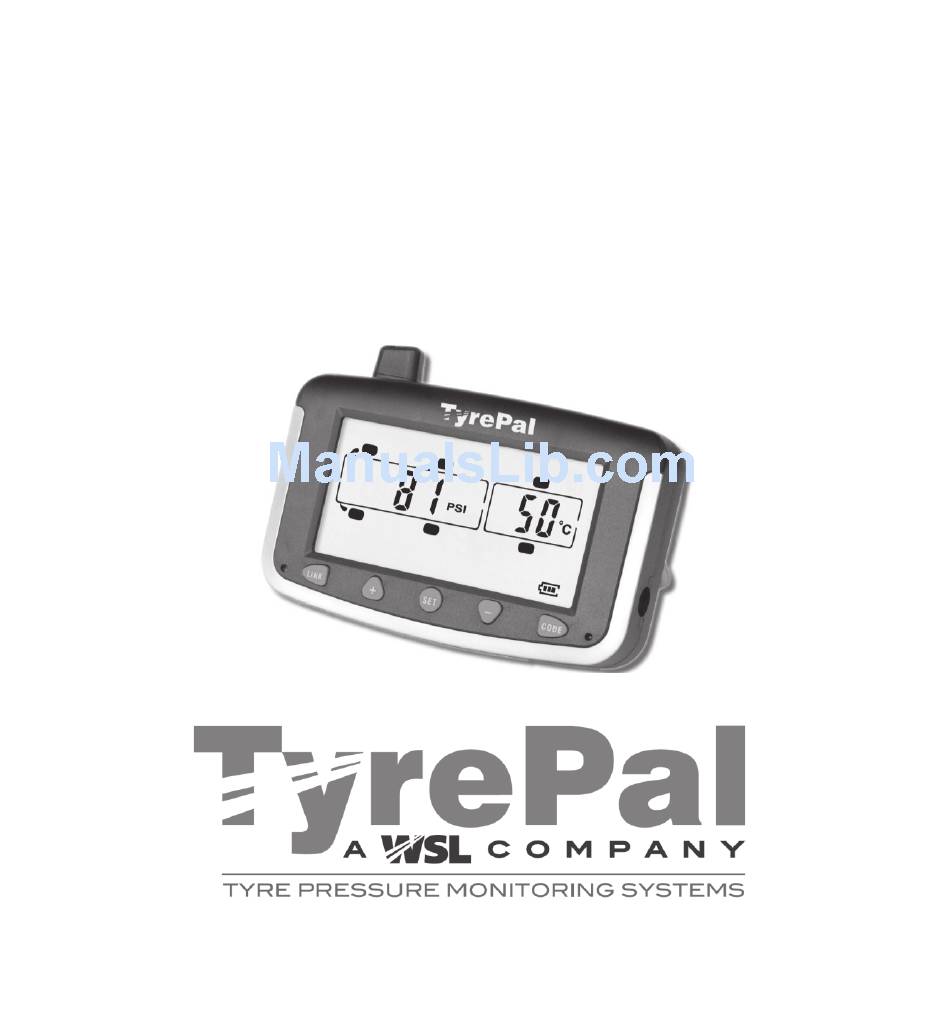

- Page 1 TyrePal TPMS OE Monitor Kit TC215/OEK User manual Innovative safety solutions for your peace of mind...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ............4 IMPORTANT SAFETY NOTE ........4 MONITOR LAYOUT AND CONTROLS ......5 SETTING UP .............. 5 4.1 Switch on the monitor .......... 6 4.2 Register the sensors ........... 6 4.3 Set units of pressure and alert levels....7 4.4 Install the monitor .......... -
Page 4: Introduction
1. INTRODUCTION This system is designed to monitor the pressure and temperature of wheels and tyres that have been fitted with TyrePal TPMS internal sensors. Additional sensors can be purchased to monitor spare wheels, or the tyres on the towing car. -
Page 5: Monitor Layout And Controls
Tyre sensors must be registered to the monitor before use. If the caravan or trailer has been supplied as ‘TyrePal TPMS ready’, internal sensors are pre-fitted inside the tyres. The system can also monitor the caravan spare tyre or the tyres on the towing vehicle, if additional sensors are purchased. -
Page 6: Switch On The Monitor
(12V to 24V) to charge the battery. It is not harmed by a partial charge. 4.2 Register the sensors These instructions refer to pre-fitted internal sensors (TyrePal TPMS Ready wheels). If you have additional external sensors for the tow car or for spare wheels, please see the separate instructions for registering them. -
Page 7: Set Units Of Pressure And Alert Levels
4.3 Set units of pressure and alert levels Pressure units can be set to display in psi or bar, and temperature in °C or ˚F. Pressure alert levels are set individually for each of the three axles on the towing vehicle while the trailer settings apply to all axles on the trailer. -
Page 8: Install The Monitor

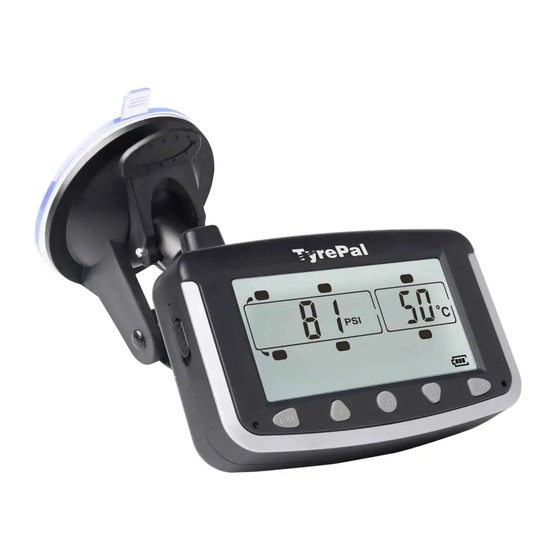

4.4 Install the monitor Clip the monitor to the holder, moisten the suction pad and press it to the windscreen. Lower the lever to secure the pad to the windscreen. To remove it, lift the lever to break the suction. 4.5 Connect the power Connect the monitor to the vehicle power supply (12V or 24V) via the power connector to charge the internal battery. -
Page 9: Alerts
caused by temporary interference from surrounding radio signals and will normally correct itself within a few minutes of driving. If a signal is not received from a sensor for a period of 60 minutes, the display remains blank for that position and the monitor chirps briefly to warn you that the tyre is not being monitored. -
Page 10: Connecting And Disconnecting A Trailer
6.1 Sensors for tow car and spare tyre The system is compatible with different types of TyrePal sensors, so additional sensors can be fitted to the car wheels if required. These can either be internal sensors fitted inside the tyres, similar to the ones on the trailer, or external sensors that screw onto the tyre valves without removing the tyres. -
Page 11: Troubleshooting & Additional Information
TyrePal web site, www.tyrepal.co.uk, where it is regularly updated. 8. SPARES AND WARRANTY Spare parts including replacement sensors are available to purchase from the TyrePal web site. Please register your guarantee by completing details on our web site. - Page 12 Unit 2 Upper Keys Business Park, Keys Park Road, Hednesford, Cannock, Staffs WS12 2GE Wheel Solutions Limited, e-mail: enquiries@tyrepal.co.uk www.tyrepal.co.uk TC215OEK20140901 © TyrePal Ltd 2014...
