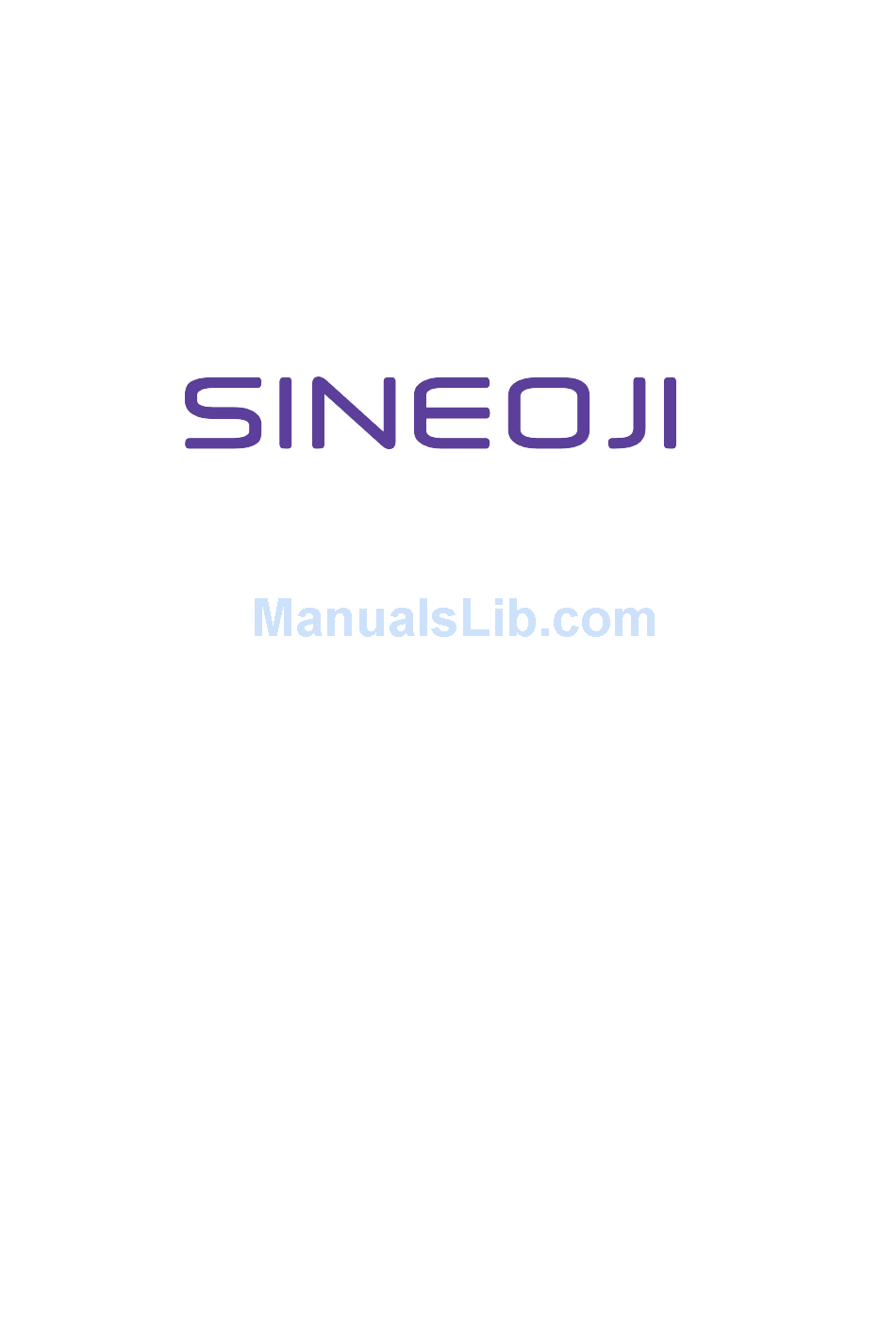

    User Manual 1800Mbps Gigabit HomePlug AV2 MIMO Pass Through PL1800EP...
  • Page 2 Safety This equipment has been tested and found to comply with Part 15 Class B of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment is in compliance with the requirements of the following regulations: CE Mark, 89/336/EEC RoHS This product is RoHS compliant.

  • Page 3: Table Of Contents

    Table of Contents HomePlug Powerline ........................... 4 Introduction..............................4 System Diagram ............................. 4 Casing Details ..............................5 Front Casing ......................................5 Status Lights ......................................5 Bottom Casing ......................................6 Right Casing ......................................6 Initial Setup ..............................7 Connect the HomePlug AV2 1.8Gbps Pass Thru to a Computer or Modem/Router ................7 Individual HomePlug AV2 Network Setup (Optional) ................

  • Page 4: Homeplug Powerline

    1 HomePlug Powerline HomePlug Powerline is an excellent solution that can be used to extend your network. In the home or small office building, use HomePlug Ethernet Bridges to link multiple locations without the need to run long Ethernet cables. Combined with a broadband DSL/Cable connection, every room with electrical power outlets will have easy access to high-speed Internet connection.

  • Page 5: Casing Details

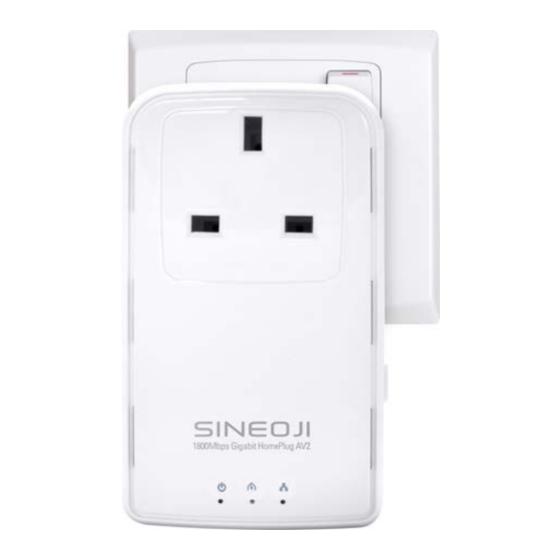

    1.3 Casing Details Front Casing The front casing contains 3 status lights: Power, PLC Link, and Ethernet Link. Power Ethernet PLC Link Light Status Lights Power On: This HomePlug AV2 1.8Gbps Pass Thru is receiving electrical power Off: Power off Flashing Green (1 second ON, 4 second OFF ) : Device in standby mode PLC Link The PLC (Powerline) Link light will indicate the overall speed of your network with 3 colors:...

  • Page 6: Bottom Casing

    Bottom Casing The bottom casing contains an Ethernet Port. Ethernet Port Right Casing The right casing contains a Security/Reset Button (dual function) Security / Reset Button Security This function is designed to generate an individual HomePlug AV2 network group under multiple nodes environ- ment.

  • Page 7: Initial Setup

    1.4 Initial Setup HomePlug is a plug and play device; user is able to plug and play without any complex configuration and settings. You can use HomePlug AV2 1.8Gbps Pass Thru to connect networkable devices like computers and game con-soles directly to each other. You can also connect devices like a computer or Blu-ray Disc™ player to a router or modem for Internet access.

  • Page 8: Adding Bridge C To Existing Network Ab (Network Abc)

    The procedure is as follows: 1. Press and hold the Security button on Bridge A for 1~3 seconds then release. 2. The Power light on Bridge A starts to flash. 3. Within 120 seconds after the Power light on Bridge A starts to flash, press and hold the Security button on Bridge B for 1~3 seconds then release.

  • Page 9: Removing Bridge B From Bridge A & C Network And Join With Bridge D & E (Network Bde)

    2.3 Removing Bridge B from Bridge A & C Network and join with Bridge D & E (Network BDE) The procedure is as follows: 1. Press and hold the Security button on Bridge B for 10 seconds, then release. Once released, Bridge B pass- word has been erased and back to factory default password.
  • Page 10 • This HomePlug AV2 1.8Gbps Pass Thru should not be used in areas with excessive heat. • Certain florescent or incandescent lights are noise sources on the electrical and can degrade performance. • If your building has more than one circuit breaker box, your HomePlug AV2 1.8Gbps Pass Thru may not be able to connect between the different circuit breaker boxes.

  • Page 11: Specification

    FCC Class B / CE Mark Product carried a warranty of 3 years from the date of purchase. Warranty registration can be done via online at http://www.sineoji.com/support/product-registration. Ensure a copy of the proof of purchase is submitted online during the registration process.
