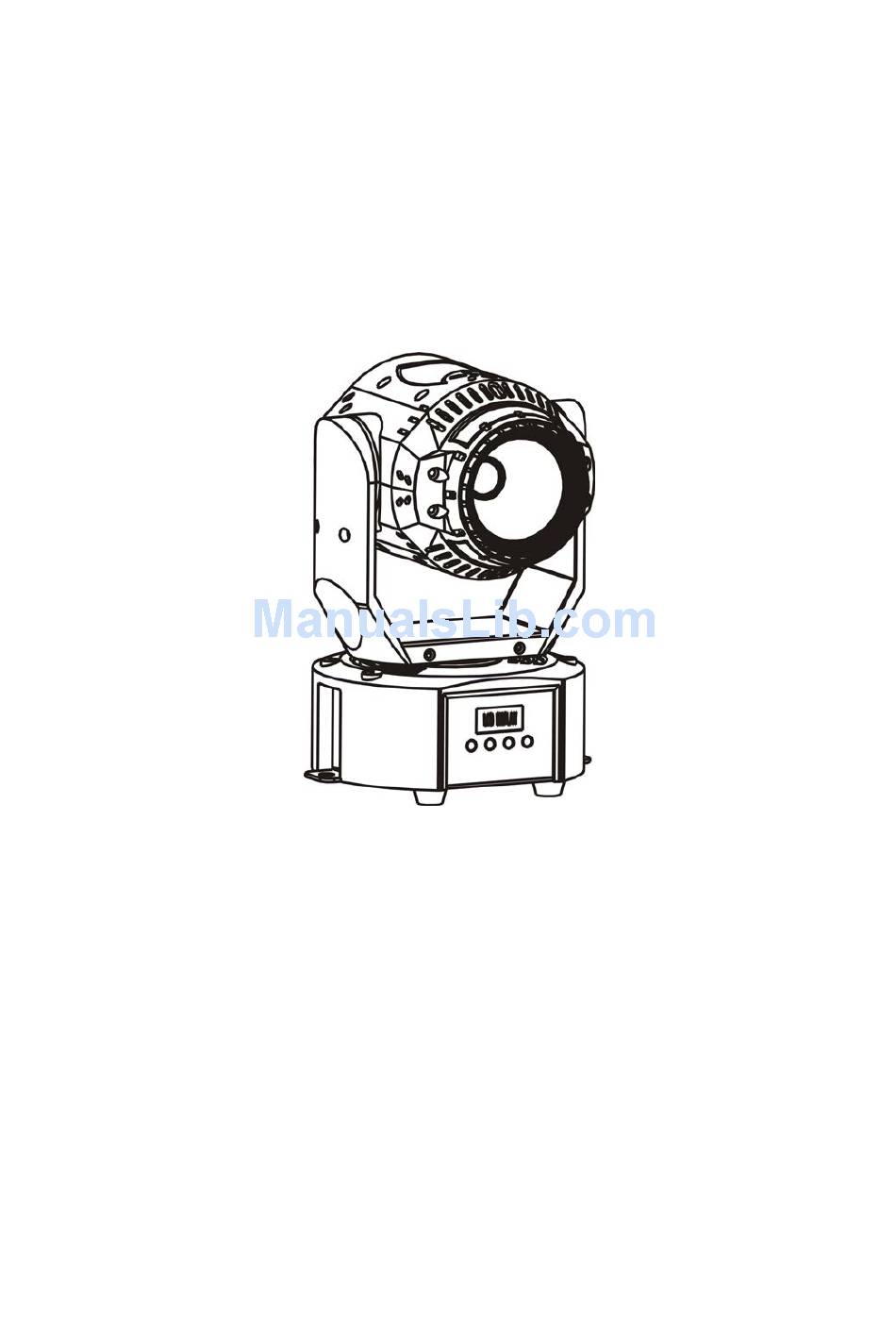

- Page 1 SIRIUS Bar Moving Head COB 60W RGB 4in1 USER MANUAL TS106 User Manual | Sirius Bar Moving Head COB 60W RGB 4in1| Rev.Jan. 2014 | www.triton-blue.com...
- Page 2 For your own safety, please read this user manual carefully before you initially start-up Every person involved with the installation, operation and maintenance of this device has to: -Be qualified. -Follow the instructions of this manual. -Consider this manual to be part of the total product. -Keep this manual for the entire service life of the product -Pass this manual on to every further owner or use of the product.
- Page 3 Features 3 PIN male XLR and 3 PIN female XLR Power Connection: Locking IEC 3 control models:DMX512、sound control 、master/slave Black plastic LED display Indoor operation temperature：-20°C～+40°C 2 DMX models： 8/13 DMX channels Dimmer:0-100% Pan:540 degree, Tilt:220degree Fan cooling (Fan will change speed with temperature) Temperature detection system（The machine doesn't work if the temperature detection error happened.）...
-
Page 4: Installation Requirement
INSTALLATION Installation requirement The equipment can be used in various situation, it can be hung and stand Choose suitable situation to place or hang the equipment for installation. Make sure to use professional clamp and screws as hanging the equipment. and be sure that weight of the equipment is within range which installation area bear Be sure this equipment is kept at least 0.5m away from any flammable material in installing Make sure the equipment is installed by qualified person. -
Page 5: Operation Step
OPERATION STEP Control Panel Function Button Function MODE Exits from the current menu or function Enables the currently displayed menu or sets the currently selected ENTER value in to the selected function Navigates upwards through the menu list and increases the number value when in a function Navigates downwards through the menu list and reduces the... - Page 6 Menu ： [DMX Address Setup] Press MENU，and then press UP or DOWN，until it shows the Address Menu,，press ENTER . Change the DMX address by pressing UP or DOWN，press “ENTER” to keep current setting DMX address。 [Setup Channel Modes] Press MENU，and then press UP or DOWN，press ENTER to exit when it shows Control Mode Menu. Press UP or DOWN to choose 8CH、...
- Page 7 [System Reset] ● Press MENU，and then press UP or DOWN until it shows the System Reset，press ENTER,the whole machine reset. DMX Channel Table 13 CH Function Value 0-255 PAN 0-540º 0-255 PAN 16 bit 0-255 Tilt 0-220º 0-255 Tilt 16 bit 0-255 Pan &Tilt Speed(from fast to slow ) 0-255...
- Page 8 0-255 Dimmer 0-100% 0-255 Red 0-100% 0-255 Green 0-100% 0-255 Blue 0-100% No function 10-140 Strobe in the line(from slow to fast ) 141-255 Strobe follow the equipment (from slow to fast ) 0-20HZ User Manual | Sirius Bar Moving Head COB 60W RGB 4in1| Rev.Jan. 2014 | www.triton-blue.com...
