Summary of Contents for AutoTeks BUILDEX
-

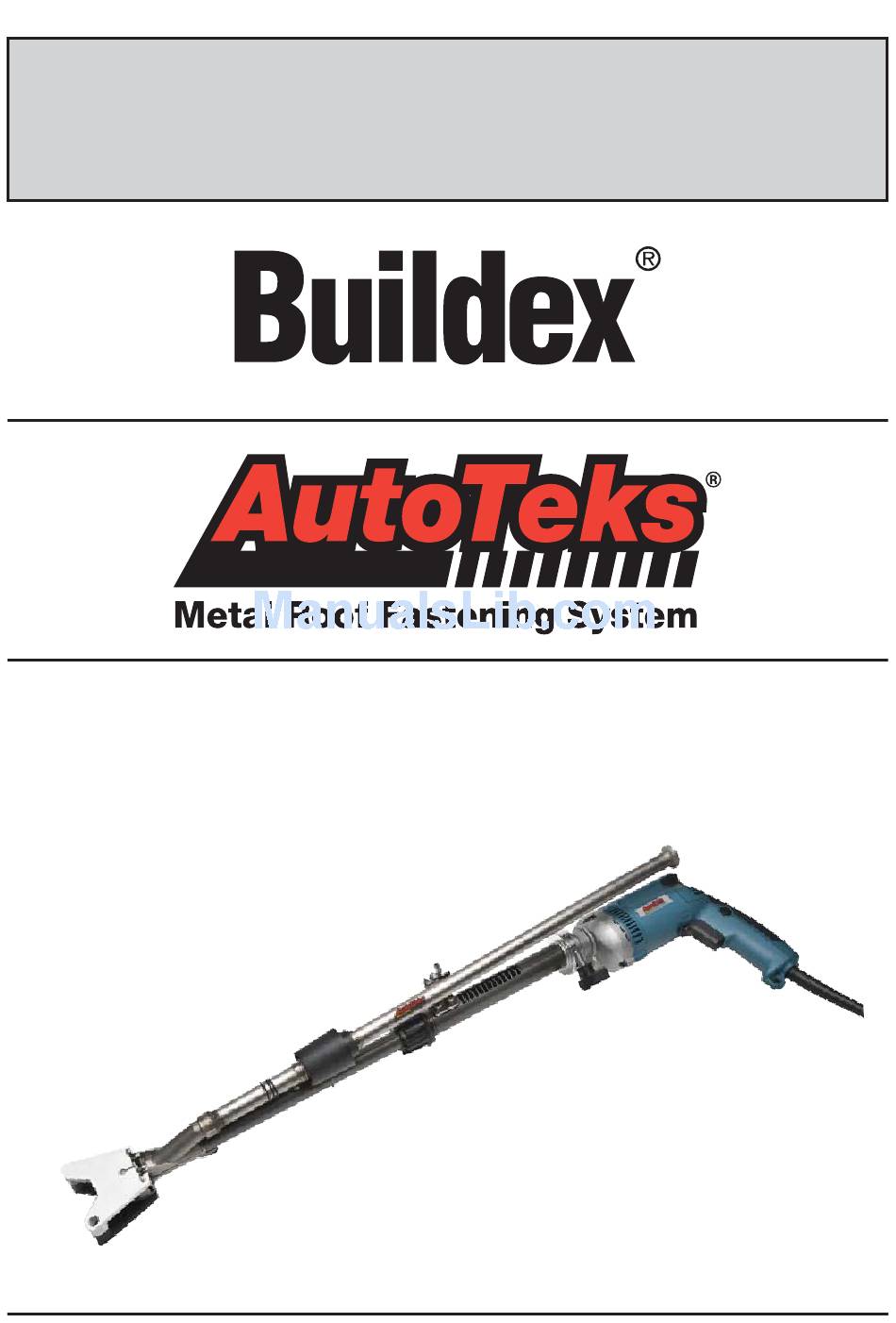

Page 1: Maintenance Instructions
WARNING!! READ THIS MANUAL BEFORE OPERATING TOOL MULTI FEED Operator’s Manual and Maintenance Instructions AutoTeks Multi Feed Tool Assembly ® Part Number: 6-991-0401-1... -
Page 2: Table Of Contents
CONTENTS Safety Precautions ...........3, 4 Operation ............5 Fastener Selection Guidelines ......6 Dismantling Front Section ........7 Reassembly of front section ......8 Parts Assembly ..........9 Troubleshooting Guidelines ......10 Warranty ............11 CONTENTS... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Warning!! When using electric tools, safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. Failure to follow these instructions can result in severe personal injury. READ ALL INSTRUCTIONS BEFORE OPERATING THE TOOL. General Safety Considerations 5. - Page 4 SAFETY PRECAUTIONS Safety Procedures for Electric Tools • To avoid unintentional starting of 1. Guard against electric shock. motor, never carry plugged-in tool 2. Consider work environment: with finger on switch and be sure • Never operate tool in damp or wet switch is off when plugging in the locations.
-
Page 5: Operation
OPERATION 1. Connect tool to power source. 2. Drop screws* point down into funnel, until tube is full with screws. * Use Buildex AutoTeks Fasteners ONLY ® 3. Push tool downward until it contacts the roof panel. 4. Engage trigger and continue to push tool downward until screw is fastened. -
Page 6: Fastener Selection Guidelines
FASTENER SELECTION GUIDELINES MULTI FEED Only the specially designed Buildex Autoteks Fasteners can be used with the ® Autoteks Multi Feed Tool Assembly. ® They can however, also be used with standard drill guns. M5.5 x 50mm For fastening square-rib roofing profiles to steel purlins up to 4.5mm thick. -
Page 7: Dismantling Front Section
DISMANTLING FRONT SECTION DANGER: Springs are under extreme pressure. Use care during dismantling and reassembly of the tool. REMOVING FEED TUBE 1. Loosen wing nut. (Do not remove) 2. Swing Feed Tube away from body of tool. Lower Catch will disengage and tube will separate from nosepiece. -
Page 8: Reassembly Of Front Section
REASSEMBLY OF FRONT SECTION DANGER: Springs are under extreme pressure. Use care during dismantling and reassembly of the tool. CLEARING JAMMED FASTENERS 1. Pull back lower tube assembly until fastener is pushed through lower tube. While holding the lower tube assembly slowly release the pressure until the tool springs back to position. -
Page 9: Parts Assembly
PARTS ASSEMBLY 1. Makita 6820 Heavy Duty Screw Gun 2. Feed tube 3. Clamp collar 4. Nosepiece assembly 5. Wing nut 6. Nosepiece retaining pin 7. Lower tube assembly 8. Upper tube assembly 9. Height adjustment nut PARTS ASSEMBLY... -
Page 10: Troubleshooting Guidelines
TROUBLESHOOTING GUIDELINES REMEDY PROBABLE CAUSE DIFFICULTY Cock lower tube Screw jammed in tool. Ratcheting noise and Open and clear feed screws won’t drill or tube. screws kicking out during installation. Drop screw point first in Screw in upside down. feed tube. Apply even pressure Tool pushed down too during installation. -
Page 11: Warranty
Buildex product. The obligation of Buildex under this warranty is limited to the circumstances set out above and is subject to: •... - Page 12 Teks, HiGrip, ShankGuard, and Climaseal are registered Buildex Trademarks. ® Whilst every care was taken in preparation of this guide, Buildex accepts no responsibility for the accuracy of the information supplied. ® Copyright © 2010. The contents of this brochure are the exclusive copyright of Buildex and may not be reproduced without written permission.
