SPECIFICATIONS

Power Source:
220-240V a.c., 50Hz
Power Consumption: 198W
Stand-by Power
Consumption:
1,9W
Aerial Impedance:
75Ω unbalanced, Coaxial Type
Receiving System:
PAL B/G, H, D/K, PAL-525/60
SECAM B/G, D/K
M.NTSC
NTSC (AV only)
Receiving Channels:
VHF E2-E12
VHF H1-H2 (ITALY)
VHF A-H (ITALY)
VHF R1-R2
VHF R3-R5
VHF R6-R12
UHF E21-E69
CATV S1-S10 (M1-M10)
CATV (S01-S05)
CATV S11-S20 (U1-U10)
CATV S21-S41 (HYPERBAND)
Intermediate Frequency:
Video/Audio
Video
38,9MHz
Audio
32,9MHz, 33,16MHz, 33,4MHz
40,4MHz, 32,4MHz (A2 STEREO)
33,05MHz (NICAM)
32,66MHz, 32,4MHz (CZECH STEREO)
Colour
34,47MHz (PAL)
34,5MHz, 34,65MHz (SECAM)
Terminals:
AUDIO MONITOR OUTAudio (RCAx2) 500mV rms 1kΩ
AV1 IN
Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
RGB (21 pin)
AV1 OUT
Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 1kΩ
AV2 IN
Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
S-Video IN
(21-pin)
AV2 OUT
Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 1kΩ
Selectable output (21 pin)
Y: 1V p-p 75Ω
C:0,3V p-p 75Ω

Colour Television

TX-29AK10P
EURO-5 Chassis
AV3 IN
S-Video IN
(4-pin)
Audio (RCAx2) 500mV rms 10kΩ
Video (RCAx1) 1V p-p 75Ω
AV4 IN
Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
S-Video IN
(21-pin)
AV4 OUT
Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 1kΩ
30,5kV ± 1kV
High Voltage:
Picture Tube:
M68LQL185X05
Audio Output:
2 x 20W (Music Power)
8Ω Impedance
Headphones:
8Ω Impedance
3,5mm
Accessories
supplied :
Remote Control
2 x R6 (UM3) Batteries
Dimensions:
Height:
568mm
Width:
688mm
Depth:
492mm
Net weight:
48kg
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
NOTE: This Service Manual should be used in conjunction with
the EURO-5 Technical guide.
ORDER No. SM-99055
Y: 1V p-p 75Ω
C: 0,3V p-p 75Ω
Y: 1V p-p 75Ω
C:0,3V p-p 75Ω
68cm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX-29AK10P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic TX-29AK10P

Summary of Contents for Panasonic TX-29AK10P

  • Page 1: Colour Television

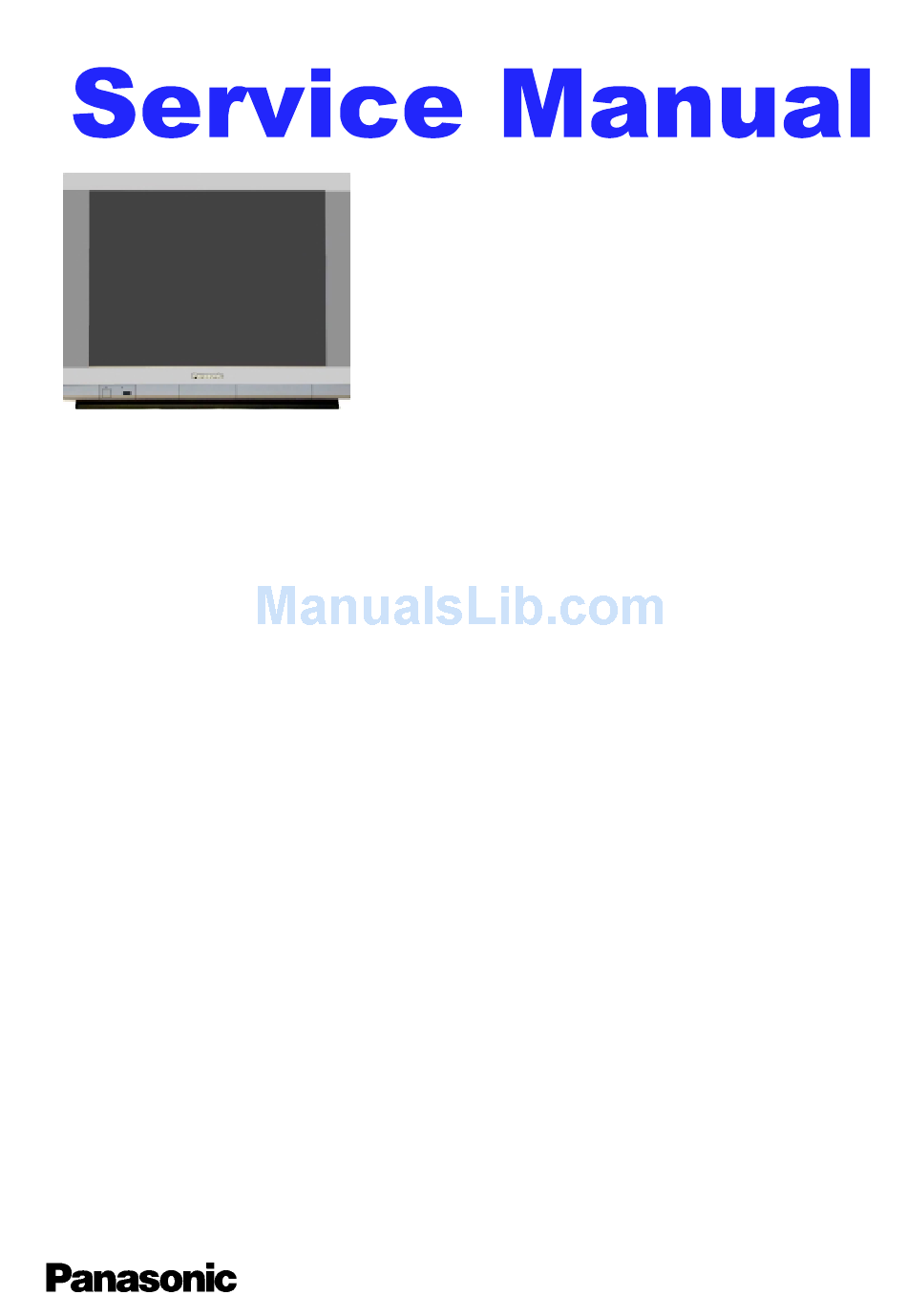

    ORDER No. SM-99055 Colour Television TX-29AK10P EURO-5 Chassis SPECIFICATIONS Power Source: 220-240V a.c., 50Hz AV3 IN S-Video IN Y: 1V p-p 75Ω (4-pin) C: 0,3V p-p 75Ω Power Consumption: 198W Audio (RCAx2) 500mV rms 10kΩ Video (RCAx1) 1V p-p 75Ω...
