D.I.Y frequency settings on
set-top box for IS701 to IS18
migration
Instructional Manual for Subscribers
Prepared by: SKY Pacific Technical Team
11/11/2011
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N6760B and is the answer not in the manual?

Questions and answers

Summary of Contents for coship N6760B

  • Page 1 D.I.Y frequency settings on set-top box for IS701 to IS18 migration Instructional Manual for Subscribers Prepared by: SKY Pacific Technical Team 11/11/2011...
  • Page 2 Introduction On Thursday, November 17th, 2011 from 12am to 2am, Sky Pacific's downlink frequencies will be undergoing changes as we move from satellite Intelsat 701 to Intelsat 18. This manual is designed to provide simple, easy to follow instructions to Sky Pacific subscribers, who are unable to access the scheduled OTA (Over the Air) software upgrade.

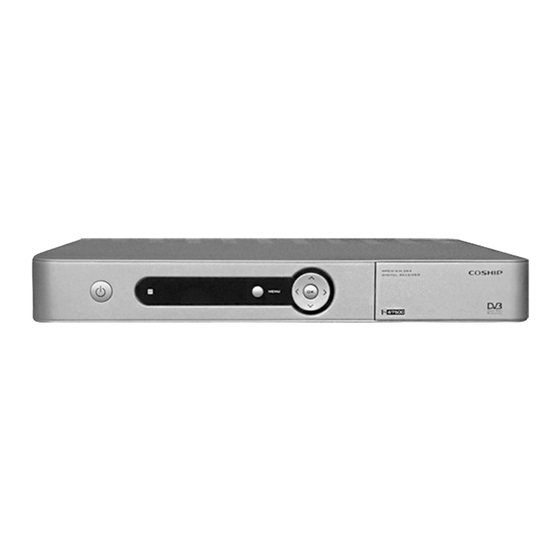

  • Page 3 COSHIP MODEL SET-TOP BOX Coship STB has an electronic display panel on the front left LEFT BUTTON RIGHT BUTTON RED BUTTON DOWN BUTTON YELLOW BUTTON...
  • Page 4: Advanced Installation

    (A) How to manually change the frequency settings on your Coship decoder 1. Press MENU on the remote, select INSTALLATION, select ADVANCED INSTALLATION, press OK. 2. Press the Yellow Button on the remote for TP EDIT 3. Press the Right Button...
  • Page 5 03905 Tick Sign 43404 Reboot your decoder - switch it off, turn off the main power source or power point, remove the decoder plug from the power point, insert it in again, switch on the main power then switch on your decoder.
  • Page 6: System Information

    How to confirm that your Coship decoder has saved the new frequency software: 1. Press MENU on your remote - MAIN MENU will appear. 2. Go to INFORMATION, select SYSTEM INFORMATION . The IRD Version will change to Press COSHIP N6760B V121 if the software upgrade is successful.
  • Page 7 DMT MODEL - SET TOP BOXES Note: DMT model 1551 has buttons on the front panel and DMT model 1550 has no buttons on the front panel. Both models do not have any electronic display panel.
  • Page 8: Symbol Rate

    How to manually change the frequency settings on your DMT decoder 1. Press MENU on the remote. 2580 2. Enter the numbers ONFIGURATION 1 will appear on the TV screen. Press OK, then enter the 003905, in the field numbers under the FREQUENCY tab.
  • Page 9 4. Press OK on DONE to save the new settings and the decoder will reboot automatically. How to confirm that your DMT decoder has saved the new frequency software: 1. Press MENU on the remote 2. Select MAIN MENU, go to SYSTEM MENU, press OK.
  • Page 10: Time And Date

    4. Select SYSTEM INFO, press OK. 5. Check the Software Version No. It should change from 2.5.2.16, 2.5.2.20 or 2.5.2.24 to 2.5.2.28. 6. Also check the the LAST SYSTEM UPDATE – it should be any date after Nov 8 2011. Time and Date Version 2.5.2.28...
