Summary of Contents for Telsyco Sirius 2

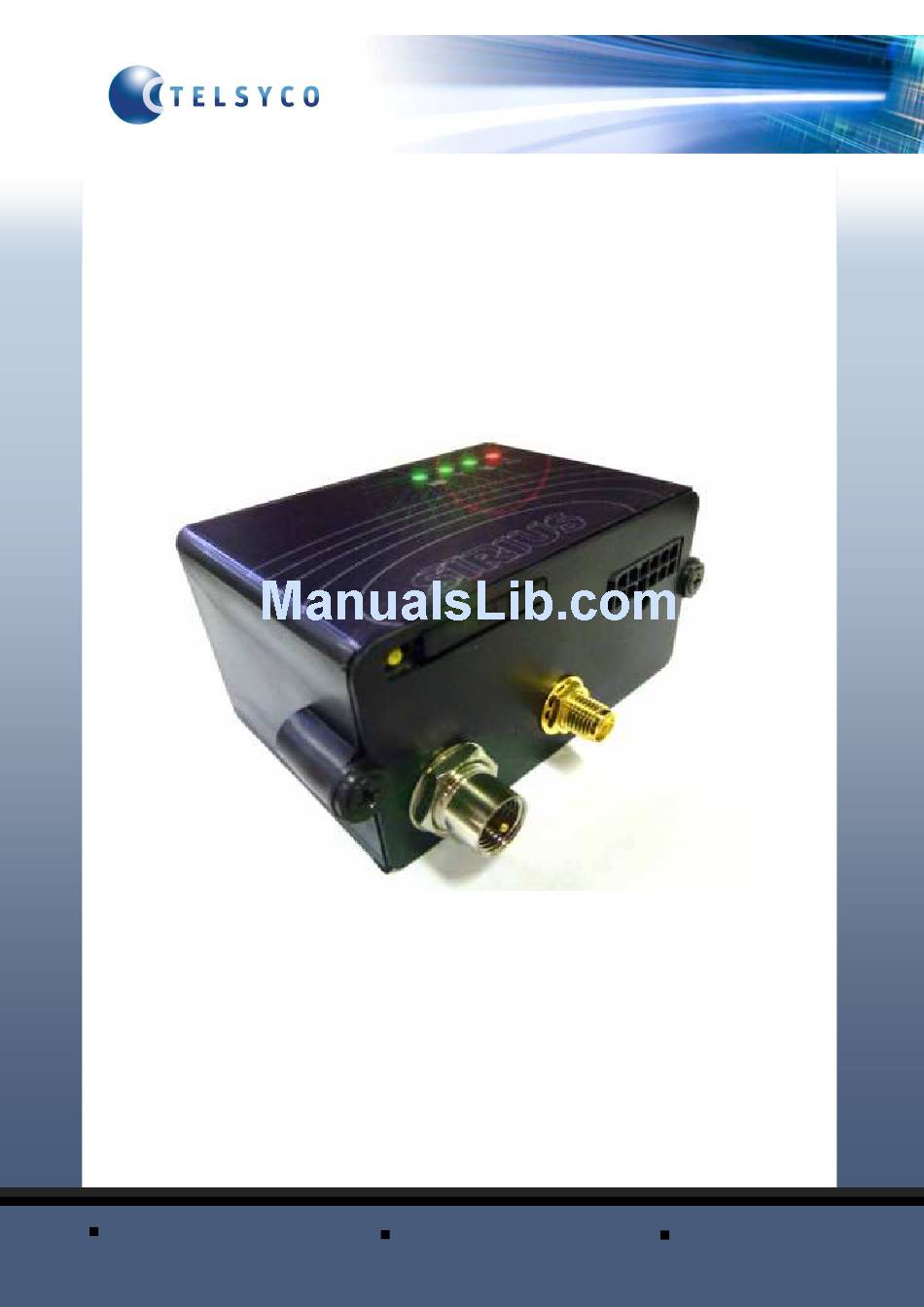

- Page 1 GSM / GPS Unit SIRIUS II SIRIUS II SIRIUS II SIRIUS II USER GUIDE V 2.0 TELSYCO s.r.o. www.telsyco.com e-mail: info@telsyco.com Prostřední 627/14 tel./fax: +420 241 765 832 141 00 Praha 4 - CZ...
- Page 2 Features: o Car position (GPS locating) with memory of last position (GPS signal failure) o During driving automatical position record every minute into memory includes date and time ( time is adjustable) –In memory is saved last 4000 positions (cca 66 hours of driving ( 1 record per minute)) o Detection of position whenever you want by SMS o During Alarm is generating a call up to 8 phone numbers o During Alarm or power supply disconnection is sending SMS includes status and...
- Page 3 Red LED Alarm It lights up when some alarm input is activated. After fulfilment of inquiries (SMS, calls) lights off. Green LED GPS lighting – GPS is ON, position valid flashing – GPS is ON, position invalid not lighting – GPS is OFF Green LED GSM Lighting of flashing –...
- Page 4 BASIC CONNECTION SCHEMATIC - MUST BE ALWAYS USED ! might be supplemented by other combination of connection white brown yellow/black green yellow Red/white orange purple black +12V Connection of „Dallas“ (key) yellow and grey white green brown white brown Yellow/black green yellow Red/white...
-
Page 5: Alarm Connection
Connection of wireless card receiver ED 060 624 red-brown +12V Red- black Black- brown ED 060 624 white brown Yellow/black green yellow Red/white orange purple black Alarm connection white brown Yellow / black green yellow Red / white orange purple black Alarm+ +12V... - Page 6 Alarm connection „bypass” white brown Yellow/black green yellow Red/white orange purple black +12V +12V Blocking connection white brown Yellow/black green yellow Red/white orange purple black...
- Page 7 Connection of sound signalling for Key +12V white brown Yellow/black green yellow Red / white orange purple black Bell, beeper on12V (with own tone) Unit operation start 1. Connect cables from connector up selected connection schematics Do not connect the connector into the unit! 2.
- Page 8 LED Signalling symbol Light of LED functionality Connection of feeding from car - battery ¤¤¤¤¤¤¤¤¤¤ > 8V Connection of feeding from car - battery ¤¤ƒƒƒ¤¤ƒƒƒ < 8V ƒƒƒƒƒƒƒƒƒƒ The unit is switched OFF (back up ACU is discharged) ¤¤¤¤¤¤¤¤¤¤ GSM operation (registration, SMS etc.) Stand by ¤ƒƒƒ¤ƒƒƒ¤ƒ...
- Page 9 Telephone numbers saved on the SIM card Name Example of number function Highest priority. It can SMS „CAR,ON“ and ADMIN +420123456789 „CAR,OF“ deactivate and activate unit. It can sends also further SMS. this number sends 'ALARM(AKU) + Credit' + position after activation signal Alarm...
- Page 10 Table of SMS commands identif. par. command body example description SMS reply Note ALARM 1 to 8 , phone number ) ALARM1,+42060212311 adding or change of phone number at positioni par. "OK" ALARM 1 to 8 ALARM2, erasing phone number on position par "OK"...
- Page 11 Registered company address: TELSYCO, s.r.o. Prostřední 627/14 141 00 Praha 4 Czech Republic VAT: CZ28548302 Company is registered in the Commercial Register administered by the Municipal Court in Prague, Section C, Record 149478 TELSYCO s.r.o. Office: Kyjovská 1983/1 142 00 Praha 4...
