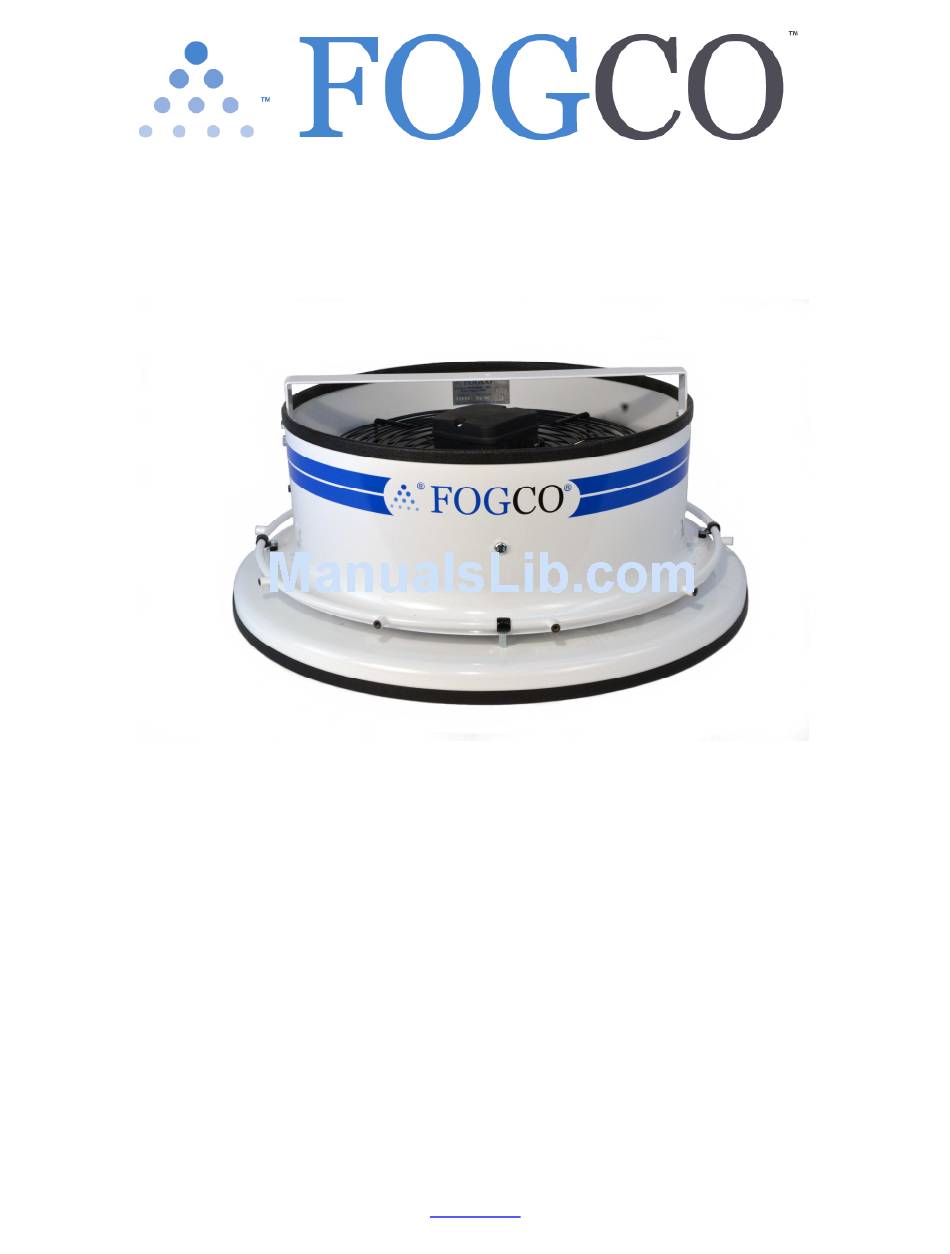

Desert Fog® Climate Control System
Revolution® Series Model 93800, 93820
(1)
FLUSH NOZZLE RING BEFORE INSTALLING NOZZLES
(2)
MAKE SURE FAN HANGS LEVEL
(3)
MAKE SURE FAN IS FREE OF DEBRIS
(4)
USE PROPER ELECTRICAL SOURCE – 115V OR 230V
DEPENDING ON MODEL NUMBER
©2008 Fogco Systems, Inc. Mistscaping®, Desert Fog®, FogDeck®, Fogco® and Encircled Spray Pattern are registered trademarks of Fogco Systems, Inc.
Users Manual
Safety, Installation,
And Wiring Instructions
Fogco Systems, Inc.
th
600 S. 56
Chandler, AZ 85226
480-507-6478
www.fogco.com
Street #9
