Summary of Contents for JetStar JR4

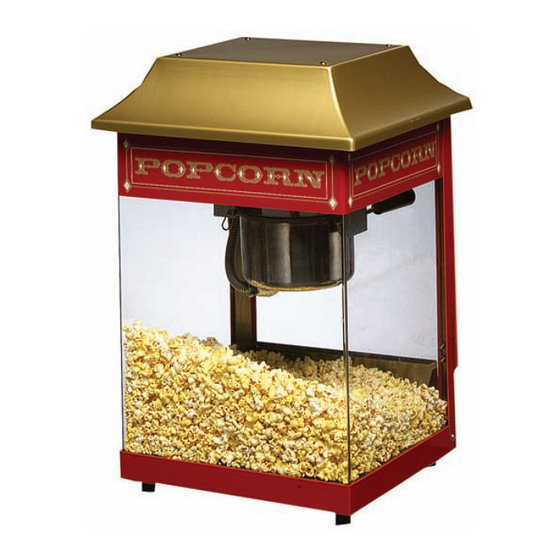

- Page 1 JetStar ® POPCORN MACHINE MODELS Installation and Operation Instructions 2M-Z4430 Rev. G 5/14/09...
-
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. - Page 3 SPECIFICATIONS: J4R SERIES Capacity: 115 one ounce servings per hour Electrical: 120 volt, 60 hertz, single phase, 1130 watts, 9.4 amps 230 volt, 50/60 hertz, single phase, 1130 watts, 4.9 amps Cord Length - 6 ft. Plug NEMA Spec - NEMA 5-15P (120V Models) CEE7-7 (230V Models) Dimensions: 15-7/8" W x 14-7/8" D x 23-3/4" H (40.3 cm W x 37.8 cm D x 60 cm H) CAUTION B efore using your new equipment, read and understand all the instructions & labels associated with the unit prior to putting it into operation. Make sure all people associated with its use understand the units operation & safety before they use the unit. A ll shipping containers should be checked for freight damage both visible and concealed. This unit has been tested and carefully packaged to insure delivery of your unit in perfect condition. If equipment is received in damaged condition, either apparent or concealed, a claim must be made with the delivering carrier. C oncealed damage or loss - if damage or loss is not apparent until after equipment is unpacked, a request for inspection of concealed damage must be made with carrier within 15 days. Be certain to retain all contents plus external and internal packaging materials for inspection. The carrier will make an inspection and will supply necessary claim forms.
-
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read and follow all instructions. 2. Do not touch hot surfaces. Use handles or knobs. 3. To protect against electric shock do not immerse cord, plugs, or any part of the machine in water or other liquid. 4. Close supervision is necessary when any appliance is used by or near children. 5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance. 6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Contact the nearest Star authorized service center for repair or the delivering carrier for damages (visible or concealed). 7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries. 8. Do not use outdoors. 9. Do not let cord hang over edge of table or counter, or touch hot surfaces. 10. Do not place on or near a hot gas or electric burner, or in a heated oven. 11. DO NOT move an appliance containing hot oil or other hot liquids. 12. To disconnect, turn all controls to "off," (I) = on, (O) = off, then remove plug from wall outlet. 13. Do not use appliance for other than intended use. 14. "A popper that is plugged into an outlet should not be left unattended." 15. "This popper will not shut off automatically. To avoid overheating, add corn and oil before operating." - See General Operating Instructions for more information. 16. "Extreme caution must be used when unloading popcorn as the popcorn and the machine will be extremely hot."... -
Page 5: Installation
INSTALLATION Each machine has been properly wired and inspected at the factory for operation on the voltage and type of current specified on the nameplate. CAUTION: DO NOT CONNECT TO ANY OTHER TYPE OF CURRENT OR THE MACHINE WILL BE SERIOUSLY DAMAGED. 120 VOLT MACHINES Machines with a nameplate stamped 120V, are equipped for operation on 120 volt 60 hertz AC single phase service and must be connected to a 3 wire grounded, polarized receptacle. 230 VOLT MACHINES Machines with a nameplate stamped 230V, are equipped for operation on 230 volt 50 hertz AC single phase service and must be connected to a 3 wire grounded receptacle. Customer must supply own light bulb rated 230V and 50W maximum. GENERAL OPERATING INSTRUCTIONS With all switches in the "OFF" (0) position, proceed in the following sequence to pop corn: 1. Turn "ON" (1) the light switch. - Page 6 > The warranty period for the JetStar six (6) ounce & Super JetStar eight (8) ounce series popcorn machines is two (2) years. The warranty period for the Chrome-Max Griddles is five (5) years on the griddle surface. See detailed warranty provided with unit.
-
Page 10: Parts List
PARTS LIST May 14, 2009, Rev. G J4R 4 OZ. POPCORN POPPER MODELS Number Part Key Description Number Number Unit 2L-Z4372 2M-Z4368 Sign Display C3-Z4940 Top Enclosure 2R-Y4810 Fan 3" Plastic PS-4P1012 2U-Y6914 J4R 120V MTR KIT 2U-Y6926 Motor-240V C3-Z4964 Wire Housing 2I-Y6709 Motor Cushion C3-4P1008 Topliner 2C-9788 Magnetic Catch 2R-Y7229 Magnet C3-Y7230 Cup-Magnet 12, 43 2K-Z4317 Bushing SB-375 2D-4P1000 Kettle Cover Assembly 2B-Z4383 Blade Agitator... - Page 11 PARTS LIST May 14, 2009, Rev. G J4R 4 OZ. POPCORN POPPER MODELS Number Key Part Number Description Number Unit C3-Z4852 Front Panel 2M-Z2718 Star Emblem C3-Z4431 Nameplate C3-Z4992 Nameplate 230V 2E-Z0091 Switch C3-Z4459 Bottom Wrap C3-Z4375 Bottom Panel 2I-Z0057 Foot Rubber 2P-Z4619 Spring Handle 2A-Y6142 Sleeve Handle C3-Y5378 2B-Y6139 Clip-Handle 2A-Z4525 Rod-Handle 2R-Y7381 Handle-Kettle 2F-Z4386 Kettle, Aluminum 2N-Z4418...
- Page 12 STAR MANUFACTURING GROUP Star - Holman - Lang - Wells - Bloomfield 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
