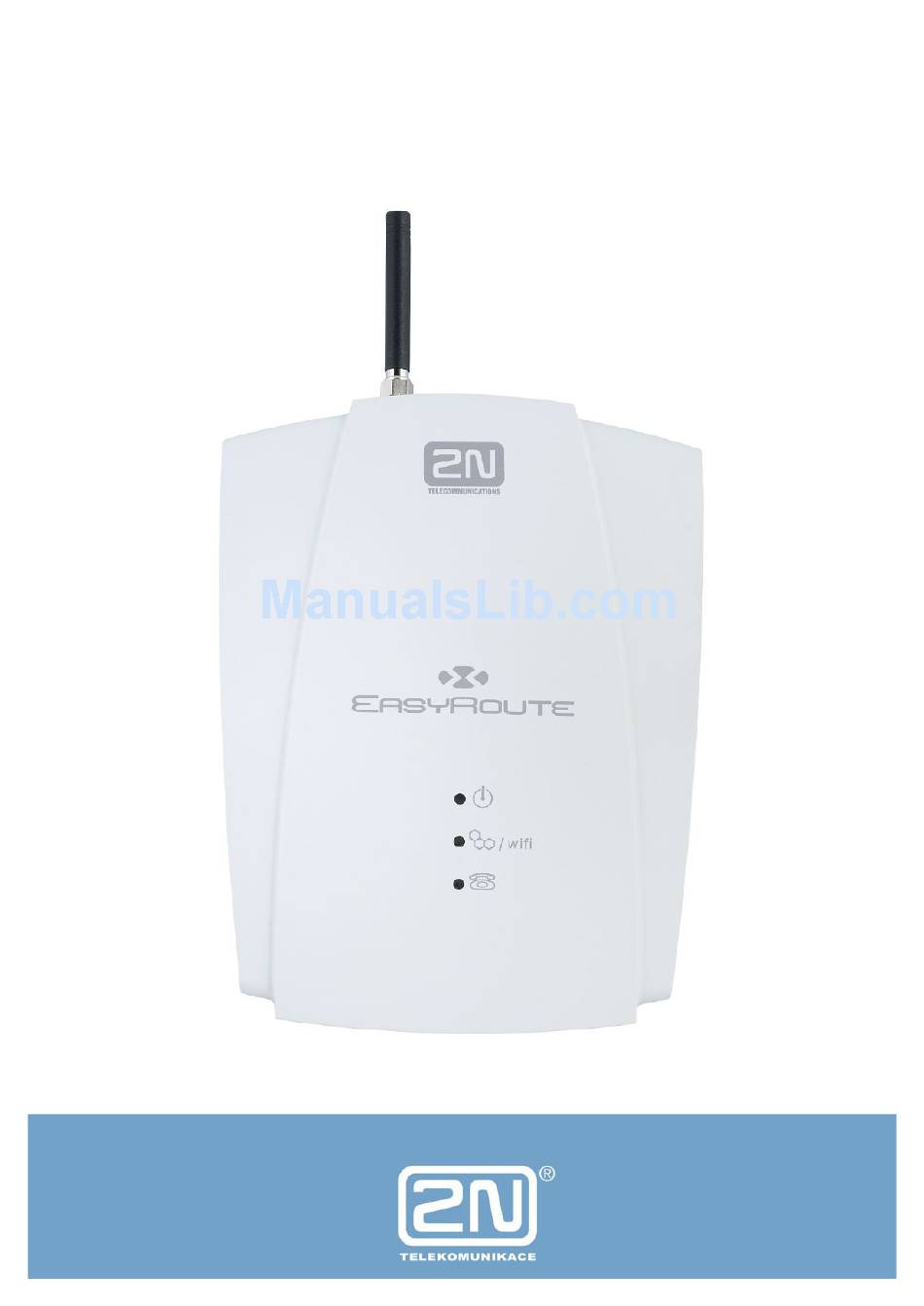

  • Page 1 2N E OUTE VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
  • Page 2 We hope you will be fully satisfied with this GSM/UMTS gateway for a long time. Therefore, use your EasyRoute for purposes it has been designed and manufactured for, in accordance herewith.

  • Page 3: Table Of Contents

    Telephone Set (Answering Machine, Coin Telephone Station) Connection ..9 Power Supply Connection ..................9 PC Connection...................... 10 EasyRoute parameters configuration ................11 EasyRoute Status Indication by LED diodes ............11 Parameter tables ....................11 3.2.1 SMS ........................12 3.2.2 Setup ........................

  • Page 4: Easyroute Purpose

    Fast Data connection – EasyRoute transmits data using the high speed HSDPA connection (max 7,2Mbit/s) • Call cost cutting – by forwarding GSM calls to EasyRoute you save a lot on PSTN – GSM calls. • Easy installation – EasyRoute is designed for immediate use without programming.

  • Page 5: System Components And 2N Related Accessory

    The manufacturer continuously meets customer requirements by improving the firmware. For the latest EasyRoute processor firmware and User Manual see www.2n.cz. For a detailed description of the EasyRoute firmware upgrade refer to the section devoted to the EasyRoute’s options setting.

  • Page 6: Installation

    It is impossible to operate EasyRoute on sites exposed to direct solar radiation or near heat sources. • EasyRoute is designed for indoor use. It may not be exposed to rain, flowing water, condensed moisture, fog, etc. • EasyRoute may not be exposed to aggressive gas, acid vapours, solvents, etc.

  • Page 7: External Antenna Connection

    2.2 External Antenna Connection Screw the antenna enclosed into the SMA antenna connector. Tighten the antenna connector gently with your hand - never use wrenches! The antenna enclosed has a sufficient gain for trouble-free operation in normal conditions. If the GSM signal is poor or you want to place your antenna separately from VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 8: Sim Card Installation

    EasyRoute, you can use an antenna with an SMA-connector terminated cable (not included). The antenna should be mounted vertically. The Antenna shall be located within the same building as the main equipment. 2.3 SIM Card Installation Make sure that the GSM provider’s SIM card is compatible with the GSM network supported by your EasyRoute version.

  • Page 9: Connector Description

    Reset button takes place to the left of the power supply plug of EasyRoute. When pressed for short period of time it restarts the EasyRoute (power ON and OFF), when held down for longer time (minimum 10s) all EasyRoute settings are reset and set to default settings (defined from producer).

  • Page 10: Pc Connection

    Do not activate the power supply until the antenna is connected to EasyRoute to avoid the GSM/UMTS module damage. 2.8 PC Connection You received Fast Ethernet cable for PC connection. To enter web browser programming interface type 192.168.1.1 in web browser’s address field after connecting EasyRoute.

  • Page 11: Easyroute Parameters Configuration

    EasyRoute parameters con iguration EasyRoute is confugured via user friendly network web interface. Connect EasyRoute to PC using Ethernet cable and in Your web browser open the page 192.168.1.1. You enter the EasyRoute web interface, where You can change EasyRoute’s settings. The initial username is “admin”...

  • Page 12: Sms

    Maintenance The button Maintenance deletes the thrown SMS from EasyRoute’s memory. If the SMS memory is full, the new SMS messages are stored on EasyRoute’s SIM card. When the EasyRoute’s SIM card is full, no new SMS messages are received until old messages are deleted. In database information there is count of SMS messages, count of deleted SMS messages and full pard of EasyRoute’s...

  • Page 13: Setup

    EasyRoute saved in memory the PIN and fill it in automatically next start. If the inserted PIN is wrong, it will not be remembered. If the SIM card in EasyRoute is changed and the old PIN is remembered in EasyRoute, EasyRoute tries to insert the PIN and one PIN entering option is exhausted.
  • Page 14 Submit Button for confirmation of changes. If the PIN is filled correctly, EasyRoute login to the network. Mode Determine the way of connecting the user to the internet. Setting options: Manually – EasyRoute connects to Internet after pressing button Connect in menu Status On demand –...
  • Page 15 SMS messages are received. Setting options: 8-512kB 3.2.2.2 Telephony Dialling Time to dial Timeout during which EasyRoute waits for further digits to be dialled. It starts to establish connection when this timeout passes. Setting options 500-10000ms Setting step Default setting...
  • Page 16 Timeout Time between line Off-Hook and automatic call beginning (if enabled). During this timeout EasyRoute waits for dialling that cancels the automatic call. You can make standard call if the Baby Call function is enabled. Setting options: 500-10000 s...
  • Page 17 Tones Dial tone Frequency The frequency of dialing tone in [Hz]. It is possible to set up two frequencies for dual tone. Setting options: 100-3500Hz Setting step: Default setting: 425Hz the first tone, the second tone is disabled Dial tone Cadence Dial tone cadence setting.
  • Page 18 GSM network. The function can be enabled if you have a device on your telephone line that is capable of receiving FSK according to ETSI standards. Setting options: Disable - EasyRoute does not transmit the CLI. FSK during ringing - EasyRoute transmits the FSK- based CLI according to the ETSI EN 300 659 standard (transmission during ringing).
  • Page 19 Two-Wire Impedance Synthesis Telephone line interface FXS adjustment. Setting options: 600ohm 900ohm 600ohm + 2.16uF 900ohm + 2.16uF 270ohm + 750ohm || 150nF 220ohm + 820ohm || 120nF 220ohm + 820ohm || 115nF 370ohm + 620ohm || 310nF disabled Default setting: 600ohm Pulse Metering Hybrid Adjustment Setting options :...
  • Page 20 Tariff pulse when call starts Signalling of call start by tariff pulse. Setting options: ON/OFF Default setting: Tariff pulse when call ends Signalling of call end by tariff pulse. Setting options: ON/OFF Default setting: Defaults Button for renewing the default values (defined from producer). Save Button for saving the new settings.
  • Page 21 SSID (Service Set Identifier) of WiFi network. It is string of maximum 32 characters that represent unique identification of the network. Setting options: 1-32 characters Default setting: EasyRoute Channel Used channel in WiFi bandwidth (2,4/ 5GHz). Setting options: auto, accessible channels...
  • Page 22 Default setting: 2346 Defaults Button for renewing the default values (defined from producer). Save Button for saving the new settings. Security System Security system of the EasyRoute WiFi network. Setting options: None WPA2 WPA+WPA2 Default setting: None Key format The key format of WiFi network.
  • Page 23 IP address assigned to EasyRoute. Setting options: valid IP address Default setting: 192.168.1.1 Subnet Network mask of network connected to EasyRoute Setting options: valid network mask, depend on IP address Default setting: 255.255.255.0 Use custom DNS Enable to use own DNS server, not the one assigned by mobile operator.
  • Page 24 DHCP Enable Enable/Disable DHCP setting. Setting options: ON/OFF Default setting: Start IP The first address in block of addresses DHCP server can assigned to network devices. Setting options: valid IP address Default setting: 192.168.1.100 End IP The last address in block of addresses DHCP server can assigned to network devices.
  • Page 25 Enable Enable EasyRoute’s DNS server. Setting options: ON/OFF Default setting: DNS1/DNS2 Shows DNS servers of mobile operator, where EasyRoute’s DNS server send its requests. Enable Cache Enables EasyRoute’s cache memory for DNS entries. Setting options: ON/OFF Default setting: Cache Low Minimum number of DNS entries in cache memory.
  • Page 26 Button for setting the path to the firmware when updating EasyRoute. The ordered number next firmware 0 and firmware 1 is displayed – the last firmware with the highest ordered number is active – EasyRoute runs with this firmware. When You update the EasyRoute with another firmware it replaced the inactive firmware.

  • Page 27: Function And Usage

    If the Baby Call function is enabled, a pre-programmed period of time is counted down after off-hook. If you do not start dialling within this timeout, EasyRoute signals dialling end and starts establishing a call to the pre-programmed number automatically – from now on EasyRoute behaves as if a standard outgoing call had been established.

  • Page 28: Tariff Pulses 16 Or 12 Khz

    EasyRoute has tariff pulse transmitter. You can use tariff pulses for outgoing call pricing. EasyRoute offer pseudo tariff only – tariff metering doesn’t correspond to real price of call, tariff pulses are transmitted according to programmed parameters and call duration. You must program specific parameters in call table to set tariff metering for different prefixes of dialled numbers.

  • Page 29: Sim Card Pin Protection

    EasyRoute power up. 4.3.2 Automatic PIN Entering You don’t need to enter the PIN upon power up if it is stored in EasyRoute – it is entered automatically. This function is convenient in case of power failure; EasyRoute is operable in a short time after power recovery without any intervention by the operating staff.

  • Page 30: Technical Parameters

    5 Technical Parameters GSM: 850/1900/2100MHz UMTS WCDMA/HSDPA GSM module, GSM bandwidth MC8775v 850/900MHz GSM/GPRS/EDGE 1800/1900 MHz GSM/GPRS/EDGE EGSM 850 / 900 MHz, Maximal transmission power GSM 1800 / 1900 MHz 0,25W UMTS 850/1900/2100 MHz -110,5 dBm UMTS 2100/1900 MHz -111,5 dBm UMTS 850MHz Receiver sensitivity -107,5 dBm GSM 850/900 MHz -106,5 dBm GSM 1800/1900 MHz...
  • Page 31 WIFI: Band 2,5/5GHz Standard 802.11a/b/g OTHERS: Dimensions (w/o connectors) 170 x 130 x 45 mm Operating temperature 0°C to 45°C Operating status signaling 3 LEDs (on, network and WIFI status, line) VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 32: Additional Information

    No tone can be heard after line off-hook • Check the telephone line connection. • EasyRoute is not initialized properly upon start (approx. 10s after power up). • EasyRoute is not supplied with power. EasyRoute keeps transmitting a tone during dialing, not receiving the dialing •...
  • Page 33 • P(A)BX - Private (Automatic) Branch Exchange • - Personal Computer (based on the IBM PC standard) • - Personal Identification Number - a SIM card securing password • - Personal Unblocking Key - a password used to unblock a blocked SIM card after repeated wrong PIN entering •...
