Summary of Contents for Secap SI1000

  • Page 1 Operator Guide Desktop Inserting System SI1000...
  • Page 2 Cet appareil numérique de la classe A est conforme á la norme NMB-003 du Canada. CAUTION: Changes or modifi cations to this equipment not expressly approved by the party responsible for compliance (SECAP) could void the user’s authority to operate the equipment. SV62138 Rev. A April 2008 ©2008 SECAP Inc.

  • Page 3: Table Of Contents

    Insert Double Detect On/Off ............34 Safe Seal On/Off ...............34 5. Reference Error Messages .................35 General Troubleshooting ............39 Clearing Material Jams .............40 Getting Help ................41 Ordering Supplies ..............42 Material Specifi cations ..............43 Machine Specifi cations .............44 Index ..................45 SI1000 Operator Guide (SV62138 Rev. A)

  • Page 4: Introduction

    Always follow the specifi c occupational safety and health stan- dards prescribed for your workplace. CAUTION! If you relocate an SI1000 that has the optional Second Sheet Feeder A2 installed, re- move it from the Second Sheet Feeder fi rst—that is, as you lift it clear, make sure it fully disengages from the Second Sheet Feeder.

  • Page 5: About Your Machine

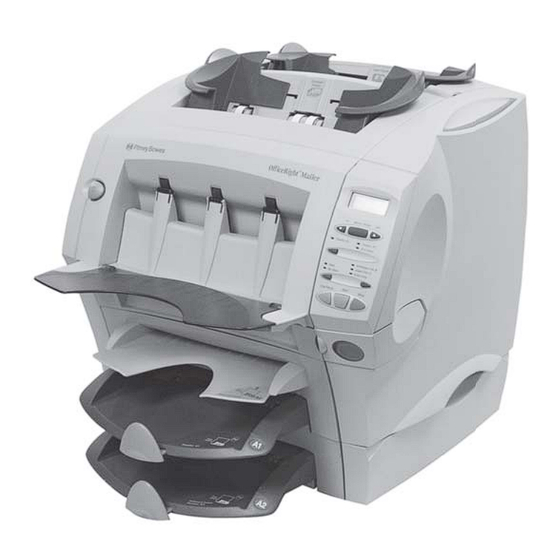

    Introduction About Your Machine Your new SI1000 is a compact folding and inserting machine de- signed to speed the process of mail creation. It has a minimal number of user adjustments and an intuitive, easy- to-use control panel. This greatly simplifi es machine operation and will enhance the productivity of your mailing operation.

  • Page 6: Machine Controls, Indicators And Features

    Control Panel This is where you enter commands and where the machine in- forms you of its status. See pages 8 and 9 for a full explanation of what each button does. SI1000 Operator Guide (SV62138 Rev. A)
  • Page 7 fl uid level. Lifting Handles (One Each Side) Always lift the SI1000 using the side handles. DO NOT lift the machine by any of the feeders or the stacker. Second Sheet Feeder A2 (Optional) You can add this feeder to the machine to enable folding and inserting of a second sheet into the envelope.

  • Page 8: The Controls

    No Seal Start Trial Piece Stop Display Shows the current status of your SI1000 and displays prompts or error messages which help you in operating the machine. Menu/Enter Press this button to enter the menu options. Options available are: • Reset Counter •...
  • Page 9 About the Sleep Mode After 10 minutes of inactivity, the system enters a power-saving “sleep mode” and displays Powersave On. Pressing any button will wake the machine up. The machine remembers the last job setup. SI1000 Operator Guide (SV62138 Rev. A)

  • Page 10: Preparing And Loading

    “Check Moistener’” appears on the display until any other button is pressed. This is only a reminder. As an additional reminder, this mes- sage appears every 1,000 cycles at the end of a batch or when the Stop button is pressed. SI1000 Operator Guide (SV62138 Rev. A)

  • Page 11: Filling The Moistener

    Slide the moistener back into the machine. From the dry state, the moistener will take about fi ve minutes to be- come fully wet and ready for use. SI1000 Operator Guide (SV62138 Rev. A)

  • Page 12: Loading The Sheet Feeders (Feeders A1 And A2)

    A2. If you load the address- bearing document into Sheet Feeder A1, the address won’t be visible in the envelope window. Slide the back stop in until it just touches the paper stack. SI1000 Operator Guide (SV62138 Rev. A)

  • Page 13: Loading The Envelope Feeder (Feeder B)

    (skew). IMPORTANT: If the guides are too tight, envelopes may not feed reliably; if the guides are too loose, envelopes may skew as they feed into the machine. SI1000 Operator Guide (SV62138 Rev. A)

  • Page 14: Loading The Insert Feeder (Feeder C)

    (skew). If the guides are too tight, inserts may not feed reliably; if they are too loose, inserts may skew as they feed into the machine. SI1000 Operator Guide (SV62138 Rev. A)

  • Page 15: Running Jobs

    (fold only) envelope JOB 1 Page 17 JOB 2 Page 18 MODELS with an INSERT FEEDER C 1 insert 1 insert 1 folded sheet envelope envelope JOB 3 Page 19 JOB 4 Page 21 SI1000 Operator Guide (SV62138 Rev. A)
  • Page 16 A2, in “2nd Page” mode to feed 2-sheet collated sets. You must load sheets into the feeder in their collated sequence: fi rst page, second page, fi rst page, second page, etc., just as they are printed by a typical offi ce laser printer. SI1000 Operator Guide (SV62138 Rev. A)

  • Page 17: Job 1: One Folded Sheet Into An Envelope

    Press Start button Stop button will stop Page 8, 9 to run job machine at end of cycle Problems? See Error Messages, page 35, and Troubleshooting, page 39 SI1000 Operator Guide (SV62138 Rev. A)

  • Page 18: Job 2: One Folded Sheet, No Envelope (Fold Only)

    Press Start button Stop button will stop Page 8, 9 to run job machine at end of cycle Problems? See Error Messages, page 35, and Troubleshooting, page 39 SI1000 Operator Guide (SV62138 Rev. A)

  • Page 19: Job 3: One Folded Sheet + One Insert Into An Envelope

    Job 3 One Folded Sheet + One Insert 1 insert into an Envelope 1 folded sheet Model Required: SI1000 must have an Insert Feeder C envelope Notes: Inserts are pre-folded sheets or unfolded items such as business reply envelopes, response cards and similar items. If your machine...
  • Page 20 Press Start button Stop button will stop Page 8, 9 to run job machine at end of cycle Problems? See Error Messages, page 35, and Troubleshooting, page 39 SI1000 Operator Guide (SV62138 Rev. A)

  • Page 21: Job 4: One Insert Into An Envelope

    Job 4 One Insert into an Envelope 1 insert Model Required: Your SI1000 must have an Insert Feeder C. Notes: Inserts are pre-folded sheets or envelope unfolded items such as business reply envelopes, response cards and similar materials. Step Action Tips For More Details…...

  • Page 22: Job 5: Two Folded Sheets Into An Envelope

    Job 5 Two Folded Sheets into an 2 folded sheets Envelope Model Required: Your SI1000 must have the optional Sheet Feeder A2. envelope Notes: Run the address-bearing document from Sheet Feeder A2 and a second sheet that needs folding from Sheet Feeder A1.

  • Page 23: Job 6: Two Collated, Folded Sheets Into An Envelope

    Job 6 Two Collated, Folded Sheets 2 folded sheets (collated) into an Envelope Model Required: Your SI1000 must have the optional Sheet Feeder A2. Notes: This job uses the second sheet envelope feeder A2 in 2nd Page mode to feed two- sheet, collated sets.

  • Page 24: Job 7: Two Folded Sheets, No Envelope (Fold Only)

    Job 7 Two Folded Sheets, No Envelope (Fold Only) Model Required: Your SI1000 must have 2 folded sheets an optional Sheet Feeder A2. no envelope (fold only) Notes: Run the address-bearing document from Sheet Feeder A2 and a second sheet that needs folding from Sheet Feeder A1.

  • Page 25: (Fold Only)

    Job 8 Two Collated, Folded Sheets, No Envelope (Fold Only) 2 folded sheets Model Required: Your SI1000 must have an (collated) optional Sheet Feeder A2. no envelope (fold only) Notes: This job uses the second sheet feeder A2 in 2nd Page mode to feed two- sheet collated sets.

  • Page 26: Job 9: Two Folded Sheets And An Insert Into An Envelope

    Job 9 Two Folded Sheets and an Insert 1 insert into an Envelope 2 folded sheets Model Required: Your SI1000 must have the optional Sheet Feeder A2 and an Insert Feeder C envelope Notes: Run the address-bearing document from Sheet Feeder A2 and a second sheet that needs folding from Sheet Feeder A1.
  • Page 27 Press Start button Stop button will stop Page 8, 9 to run job machine at end of cycle Problems? See Error Messages, page 35, and Troubleshooting, page 39 SI1000 Operator Guide (SV62138 Rev. A)

  • Page 28: Envelope

    Two Collated, Folded Sheets 1 insert and an Insert into an Envelope 2 folded sheets (collated) Model Required: Your SI1000 must have the optional Sheet Feeder A2 and an Insert Feeder C. envelope Notes: This job uses the second sheet feeder A2 in 2nd Page mode to feed two-sheet, collated sets.
  • Page 29 Press Start button Stop button will stop Page 8, 9 to run job machine at end of cycle Problems? See Error Messages, page 35, and Troubleshooting, page 39 SI1000 Operator Guide (SV62138 Rev. A)

  • Page 30: The Manual Feeder M

    Manual Feed The Manual Feeder M All SI1000 models have a Manual Feeder M that allows you to feed stapled sets of up to three sheets, one set at a time, for processing by the machine. Using the manual feeder automatically turns off both sheet feeders.

  • Page 31: Advanced Menu Options

    Menu/Enter button once. The screen Prompts: Reset Counter? Press yes ( ) to reset the counter and return to the ready screen. Press no ( ) to go to the next menu option. SI1000 Operator Guide (SV62138 Rev. A)

  • Page 32: Change Paper Size

    Change Size? Choose this menu option to select the paper (sheet) size you want Paper: 8-1/2 x 14 to run. You can set your SI1000 to Change Size? process letter-size sheets (8-1/2 x 11 inches) or legal-size sheets (8-1/2 x 14 inches).

  • Page 33: Sheet Double Detect On/Off

    DD status: Sheet DD is On (Off). Change? Press yes ( ) to change the sheet double detect status. The display will confi rm the change. Press no ( ) to go to the next menu option without changing this setting. SI1000 Operator Guide (SV62138 Rev. A)

  • Page 34: Insert Double Detect On/Off

    (Off). Change? Press yes ( ) to change the safe seal status. The display confi rms the change. Press no ( ) to exit from the menu options without changing the safe seal setting. SI1000 Operator Guide (SV62138 Rev. A)

  • Page 35: Reference

    CHECK SHEET Sheet feeder A1 out of paper, failed to feed or a jam FEEDER A1 was not cleared successfully from this area. Remove the paper in sheet feeder A1, reload and start run. SI1000 Operator Guide (SV62138 Rev. A)
  • Page 36 A1 or A2 (if applicable), have been SHEETS selected. In this state the indicators for sheet feeder A1 will be red, not green. Press the sheet feeder selection button until the required feeder is selected. SI1000 Operator Guide (SV62138 Rev. A)
  • Page 37 B are not too tight and that you have not overloaded the envelopes. Reload feeder B and start run. RELOAD Insert feeder C is empty. Reload inserts and start INSERTS run. SI1000 Operator Guide (SV62138 Rev. A)
  • Page 38 Press the sheet feeder selection button until the required feeder is selected. SYSTEM ERROR This is an unrecoverable system error. Please call your CALL SERVICE authorized Secap dealer for assistance. SI1000 Operator Guide (SV62138 Rev. A)

  • Page 39: General Troubleshooting

    Address position wrong or address doesn’t appear in envelope window • Is the addressed sheet loaded properly? See page 12. • Is the addressed sheet in Sheet feeder A2 (if installed)? • Try adjusting the address position. See page 32. SI1000 Operator Guide (SV62138 Rev. A)

  • Page 40: Clearing Material Jams

    fl aps down and facing you. Following installation of Sheet Feeder 2, the system doesn’t work • Check that the SI1000 is correctly located onto Sheet Feeder 2. • Turn the machine off, wait a few seconds and then turn it back •...

  • Page 41: Getting Help

    Button E Getting Help Should you experience a problem with your SI1000, please refer to the troubleshooting information starting on page 39. In many cases, it should help you resolve the problem. There may be times when you need additional help to solve a problem, or you may want more information about how to handle a particular SI1000 application.

  • Page 42: Ordering Supplies

    Reference Ordering Supplies Contact your local authorized Secap dealer for supplies. SI1000 Operator Guide (SV62138 Rev. A)

  • Page 43: Material Specifi Cations

    (1/2” overall). Take this measurement with all contents placed into the envelope. Depth Clearance The contents must allow a minimum clearance of 1/4” below the fl ap crease after insertion into the envelope. SI1000 Operator Guide (SV62138 Rev. A)

  • Page 44: Machine Specifi Cations

    115V, 60Hz, 1A Speed Up to a maximum of 900 cycles per hour Due to our continuing program of product improvement, equipment and material specifi cations are subject to change without notice. Physical dimensions are approximate. SI1000 Operator Guide (SV62138 Rev. A)

  • Page 45: Index

    Error Message 35 Close Cover E Error Message 35 Confi gurations, Machine 5 Control Panel Location and Function of 6 Controls, Front Panel Illustration and explanation of 8 Controls, Machine 6 Counter Resetting the Piece 31 SI1000 Operator Guide (SV62138 Rev. A)
  • Page 46 Help, Getting 41 Job Setups Illustrated Guide to 15, 16 Jobs, Running 15 Indicator Lights, Control Panel 9 Insert Cover E Release Button Location and Function of 6 Insert Double Feed Error Message 37 SI1000 Operator Guide (SV62138 Rev. A)
  • Page 47 Safe Seal Feature Error Message 38 Turning On and Off 34 Replace Fdr A1 Tray Menu/Enter Button 8 Error Message 38 Moistener Running Jobs 15 Filling the 11 Moistener Tank Location and Function of 7 SI1000 Operator Guide (SV62138 Rev. A)
  • Page 48 Standard Sheet Feeder A1 Location and Function of 7 Start Button, Control Panel 9 Stop Button, Control Panel 9 Supplies, Ordering 42 System Error Error Message 38 System Won’t Work with Sheet Feeder 2 40 SI1000 Operator Guide (SV62138 Rev. A)
  • Page 49 Operator Guide SECAP Canada 20-3397 American Drive Mississauga, ON L4V 1T8 Canada For service & supplies contact your authorized SECAP dealer: SV62138 Rev. A 4/08 *SV62138RevA*...
