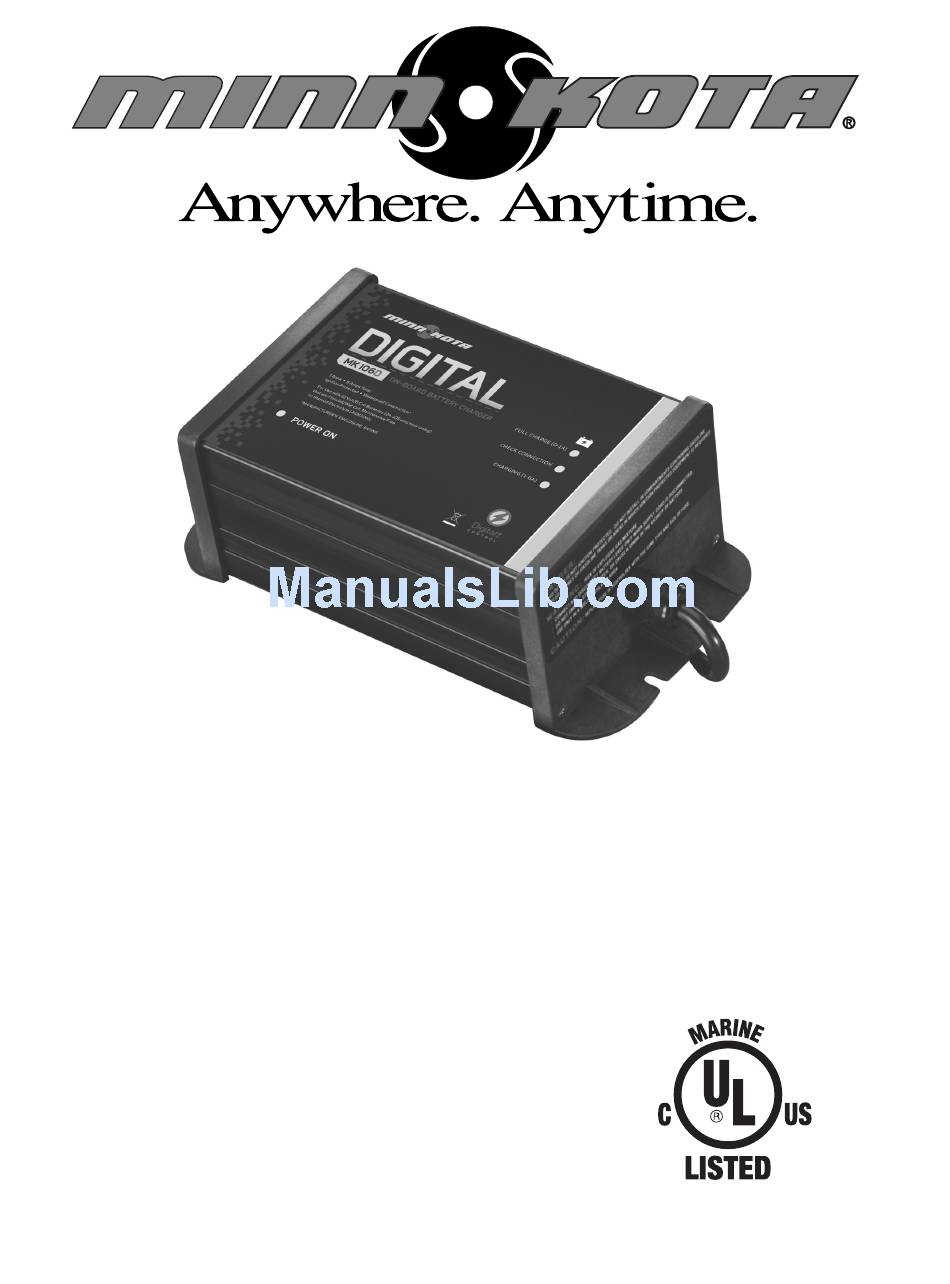

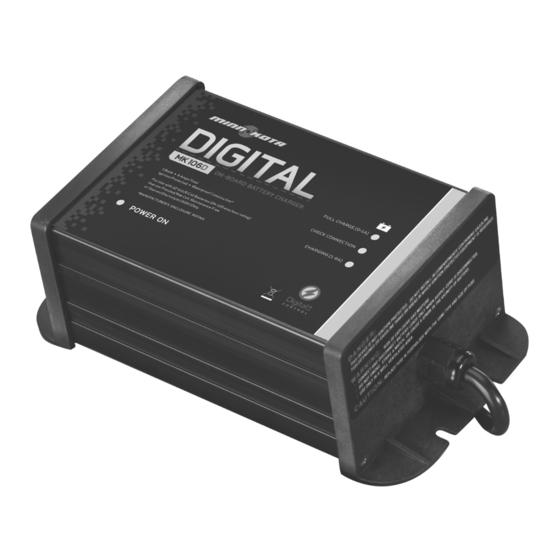

OWNER'S MANUAL FOR
MINN KOTA ONBOARD
BATTERY CHARGERS
Models: MK106D
Service Information:
Please call our service department
at 800-227-6433 if you have any
problems with your battery charger.
A technical support representative
will be happy to assist you.
Compliant with FCC
Part 15 Class B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINN KOTA MK106D and is the answer not in the manual?

Questions and answers

Summary of Contents for Johnson Outdoors MINN KOTA MK106D

  • Page 1 OWNER’S MANUAL FOR MINN KOTA ONBOARD BATTERY CHARGERS Models: MK106D Service Information: Please call our service department at 800-227-6433 if you have any problems with your battery charger. Compliant with FCC A technical support representative Part 15 Class B will be happy to assist you.

  • Page 2: Safety Information

    MARKINGS ON THESE PRODUCTS AND ON ENGINE, MOTOR OR OTHER EQUIPMENT REQUIRING BATTERY USAGE. Use of an attachment not recommended or sold by Johnson Outdoors Inc. may result in risk of fire, electric shock, or injury to persons or property.

  • Page 3: Preparing To Charge

    for at least 10 minutes and get medical attention immediately. Never smoke or allow a spark or flame in vicinity of battery, engine, motor or other flammable or explosive equipment. Be extra cautious to reduce risk of dropping a metal tool onto battery. It might spark or short circuit battery or other electrical part that may cause explosion.

  • Page 4: Installing The Battery Charger

    6. INSTALLING THE BATTERY CHARGER CHOOSING THE MOUNTING LOCATION: Do not mount the charger above batteries as lead-acid batteries give off corrosive gasses which will damage the charger over time. Never allow battery acid to drip on charger when reading electrolyte specific gravity or filling battery. Also, as with most electrical devices, do not mount the charger below the waterline of the boat or directly adjacent to fuel tanks.

  • Page 5: Indicator Lights

    ONE CHANNEL 1. Check polarity of battery posts. POSITIVE (POS, P, +) battery post is usually larger in diameter than BATTERY CHARGER NEGATIVE (NEG, N, -) post. 120 VAC INPUT 2. Connect POSITIVE (RED) output terminal to POSITIVE (POS, P, +) post of battery. 3.

  • Page 6: Inline Fuse

    Error Conditions: 1) A RED light for each bank is lit if any of the following apply: a) No battery is connected to an output cord. This may also indicate a blown fuse in the fuse holder. b) The battery is connected reverse polarity. c) A short circuit.

  • Page 7: Troubleshooting

    9. TROUBLESHOOTING PROBLEM: Check Connection (Red) light comes on. SOLUTION: -Check polarity of leads to battery. -Check connetions to battery and fuses in output cord. -Check voltage at battery. The bank will not charge a battery below 4 volts or above 18 volts. -If still not working, call the Minn Kota Service Department at 1-800-227-6433.
  • Page 8 This page provides Minn Kota® WEEE compliance disassembly instructions. For more information about where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased. Tools required but not limited to: Flat Head screw driver, Phillips screw driver, Socket set, Pliers, wire Cutters..

  • Page 9: Environmental Compliance Statement

    ENVIRONMENTAL COMPLIANCE STATEMENT: It is the intention of Johnson Outdoors Inc. to be a responsible corporate citizen, operating in compliance with known and applicable environmental regulations, and a good neighbor in the communities where we make or sell our products.
