EMPIRE
EMPIRE
Comfort Systems
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT
INTRODUCTION
This remote control system was developed to provide a safe, reliable, and user-friendly remote control system for gas
heating appliance. The system can be operated thermostatically or manually from the transmitter. The system operates on
radio frequencies (RF) within a 20 feet range using non-directional signals. The system operates one of 1,048,576 secu-
rity codes that are programmed into the transmitter at the factory; the remote receiver's code must be matched to that of
the transmitter prior to initial use.
Review COMMUNICATION SAFETY SECTION under TRANSMITTER section and THERMO SAFETY SECTION under REMOTE
RECEIVER section. These signal/temperature safety features shut down the fireplace system when a potentially unsafe condition
exists.
22775-3-1009
INSTALLATION AND OPERATING INSTRUCTIONS
ATTEMPT TO INSTALL OR OPERATE

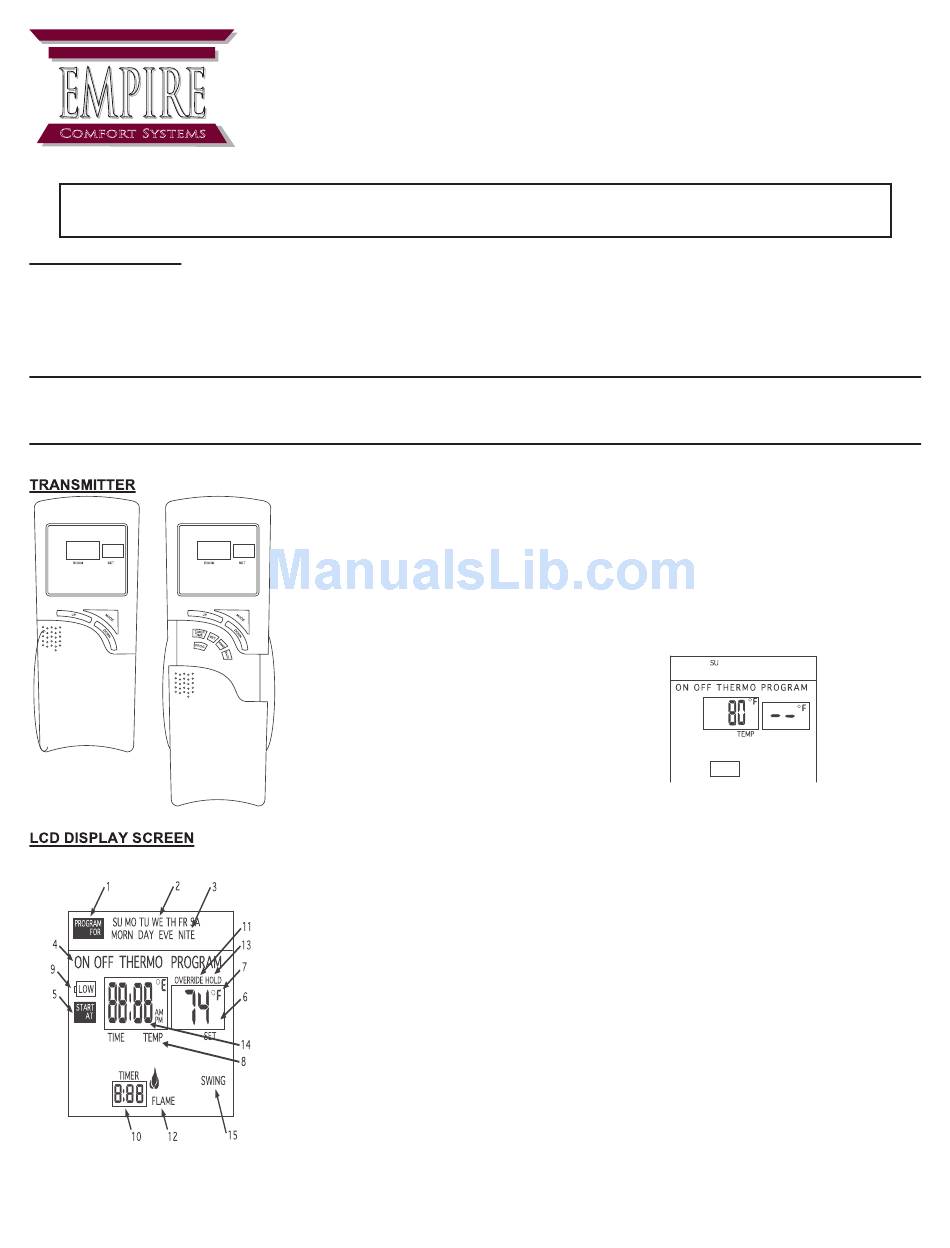

The transmitter operates on 2AAA-size 1.5V batteries. It is recommended that ALKALINE bat-
teries always be used for longer battery life and maximum operational performance.
IMPORTANT: New or fully charged batteries are essential for proper operation of the multi-
function transmitter.
Insert 2 AAA-size 1.5 V batteries into the battery transmitter, positioning the (+) and (-) ends
of the batteries as indicated on the casing. When the batteries are inserted, the screen below
(with similar numbers) will display.
Note: If a LOW battery icon appears on the screen, check the position of the batteries.
Note: Due to the sensitive temperature-monitoring
components in the transmitter, it may be necessary to
allow the transmitter to stabilize to room temperature
before accurate room temperatures are displayed
on the screen. If the transmitter is activated from a
severe cold condition, it can take up to fifteen minutes
for accurate temperature readings to appear.
1.
PROGRAM FOR: Flashes when programming
days of week and periods of the day. When in normal state, only current DAY displays.
When programming or in PROGRAM mode, both day and week will appear.
2.
DAY –Flashes when current day or day of week is being programmed.
3.
PERIOD – Flashes when current period of day or period of week is being programmed.
4.
MODE – Indicates operation MODE of system.
•
ON indicates the system is on, either manually, thermostatically, or program.
•
Off indicates the entire system is turned off.
•
THERMO indicates the system will automatically cycle ON/OFF, depending on pro-
grammed SET temperature.
• PROGRAM – indicates the system is operating with PROGRAMMED settings.
5.
START AT – Flashes when programming the time to turn system ON.
6.
SET – Indicates desired SET room temperature, when in THERMO or PROGRAM mode.
°F / °C – Factory programmed in °F. ( °C indicates degrees in Celsius)
7.
8.
TIME/TEMP – Displays the CURRENT room temperature. In same frame, the current time
will display in AM or PM. You must depress the TIME/TIMER button to display current
time.
9.
LOW – Battery power is low. Replace batteries within 2 weeks.
10. TIMER – When displayed, indicates countdown timer in operation.
11. OVERRIDE – Displays when "programmed" SET temperature is overridden.
12. FLAME – Single flame symbol indicates burner/valve is operational.
FRBTP-1
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Empire FRBTP-1
- Page 1 EMPIRE EMPIRE FRBTP-1 Comfort Systems INSTALLATION AND OPERATING INSTRUCTIONS IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT ATTEMPT TO INSTALL OR OPERATE INTRODUCTION This remote control system was developed to provide a safe, reliable, and user-friendly remote control system for gas heating appliance.
-
Page 2: Changing The Temperature Scale
13. HOLD – Displays when “programmed” SET temperature is overridden and will hold that temperature until cancelled. 14. CP – Displays when CHILD PROOF “LOCK OUT” is engaged. Pressing the UP and TIMER buttons together, engages 15. SWING- Displays in SET frame when setting TEMPERATURE DIFFERENTIAL. FUNCTIONS To operate the system, press the MODE button on the transmitter to select the operational MODE desired. -
Page 3: Built-In Program
SETTING THE CURRENT DAY OF THE WEEK Following Step 3 above, the symbol SU will begin flashing on the LCD screen. To change to the current day of the week Press the AHEAD or BACK button on the front of the transmitter. After setting/confirming the current Day of the week, press the SET button on the front of the transmitter. -
Page 4: Programming Note
NOTE: If the above settings were not previously completed during the initial SET-UP and PROGRAMMING procedure, then the LCD screen will display SU, MORN, TIME and SET temperature digits. You must go back and perform the initial set-up procedure or the remote will not operate properly in the PROGRAM mode. -
Page 5: Program Review
PROGRAM REVIEW If you want to review the settings for either the FACTORY program and/or your CUSTOMIZED program, you may do so by pressing the PROG button for one second. To review other settings, press the PROG button allowing one second between each press of the PROG button. -
Page 6: Operating Instructions
OPERATIONAL NOTE: TO CONSERVE BATTERY POWER, CHANGES IN TEMPERATURE ARE ONLY RECORDED EVERY TWO MINUTES. Additionally, to prevent repeated thermo-cycling of the gas appliance, the sensing unit in the transmitter will only activate the remote receiver when the temperature change exceeds 2°F (1°C) above or below the SET (desired) temperature. However, if the “SWING”... -
Page 7: Time Of Day Display
2. To HOLD the new temperature at a CONSTANT setting, push the UP and DOWN buttons TOGETHER to activate the HOLD function. The word HOLD will appear over the SET frame and the word OVERRIDE will disappear. 3. To cancel OVERRIDE or HOLD, press the SET button. TIME OF DAY DISPLAY 1. -
Page 8: Remote Receiver
THERMO UPDATING FEATURE –TRANSMITTER – (T/S –TX) This remote control has a THERMO UPDATING Feature built into its software. The THERMO UPDATING Feature operates in the fol- lowing manner, but only in the THERMO and PROGRAM MODES: The transmitter normally reads the ROOM temperature every 2 minutes checking the ROOM temperature against the SET temperature it sends a signal to the receiver. -
Page 9: Installation Instructions
For REMOTE RECEIVERS that operate on BATTERY POWER, these heat conditions can cause batteries to discharge when temperatures exceed 115°F. Studies show that alkaline batteries, when exposed to a constant temperature of 115°F, can lose up to 50% of their operating power. When the battery cools down, it will partially recharge itself, but constant heating and cooling will reduce the battery’s normal life expectancy. -
Page 10: Hearth Mount
To attach wall cover plate to receiver box: 1. Position the receiver as shown in diagram to the left with lower tab on wall cover plate into groove of receiver (Make sure ADJ hole and LEARN hole on cover plate properly aligns with remote receiver) 2. -
Page 11: System Check
SYSTEM CHECK MILLIVOLT VALVES Light your gas appliance following the lighting instructions that came with the appliance. Confirm that the pilot flame is on; it must be in operation for the main gas valve to operate. • Slide the 3-position button on the remote receiver to the ON position. The main gas flame (i.e., the fire) should ignite. •... -
Page 12: Battery Life
BATTERY LIFE Life expectancy of alkaline batteries in the FRBTP-1 should be at least 12 months. Check and replace all batteries annu- ally. When the Transmitter or Wall Transmitter no longer operates the receiver from a distance it did previously (i.e., the transmitter’s range has decreased) or the remote receiver does not function at all, the batteries should be checked. -
Page 13: Specifications
6. Due to handling and shipping of the unit, handling or dropping of the transmitter by the customer, and heat conditions to the receiver, some units may need an occasional frequency adjustment. This adjustment is made to improve the communication and operating distance between the transmitter and the receiver. See RECEIVER ADJUSTMENT. RECEIVER ADJUSTMENT –... - Page 14 A wiring loom package is supplied by Thermostat has been installed in the heater. The most com- Empire Comfort Systems, Inc. which simply attaches onto mon way this button is used to have the Remote Control the junction box.
-
Page 15: Programme Settings
QUICK SET-UP GUIDE FOR FRBTP-1 PROGRAMMABLE TRANSMITTER This guide is a “short cut” method to SETUP and OPERATE the programmable transmitter. For detailed instructions for each feature and function, see OWNER”S MANUAL. INITIAL SET-UPSET FUNCTIONS USING BUTTONS ON FRONT OF TRANSMITTER 1. - Page 16 QUICK PROGRAMMABLE GUIDE FOR FRBTP-1 PROGRAMMABLE TRANSMITTER This guide is a “short cut” method to PROGRAM the operation of the programmable transmitter. For detailed instructions for each feature and function, see OWNER”S MANUAL. PROGRAMMING DAILY OPERATION PERIOD TIME/TEMP NOTE: A FACTORY PROGRAM is already installed in MORN 6:00 AM 70°...
