Summary of Contents for Fedora S9

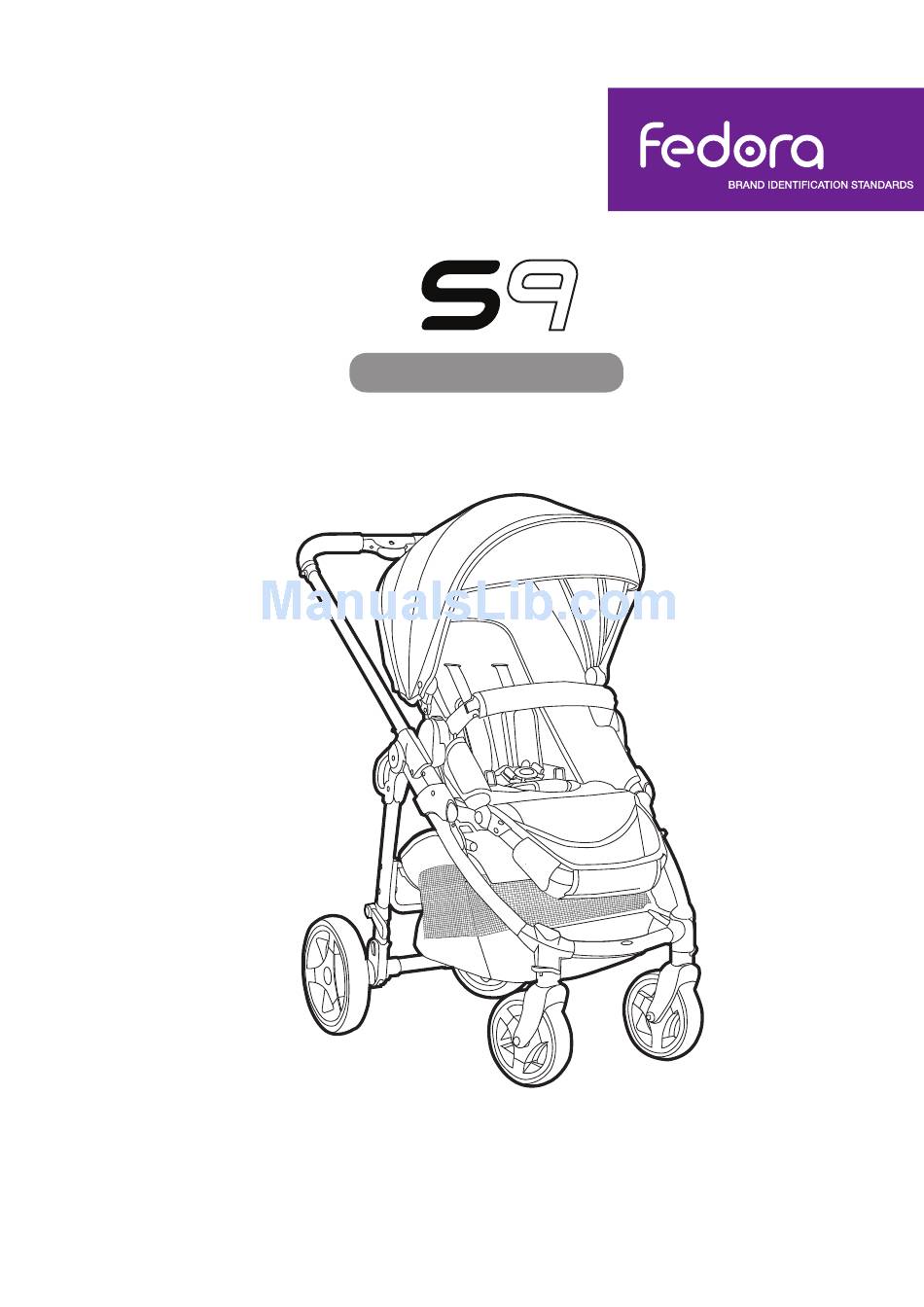

- Page 1 Instruction manual...
-
Page 2: Table Of Contents
Contents 1. Safety precautions 2. Parts list 3. Assembly (1) Rear wheel/Rear wheel axle assembly (2) Main frame unfolding (3) Seat assembly (4) Safety guard/canopy assembly 4. How to operate (1) Folding (2) Seat operation ( seat reclining adjustment/seat separation for rear-facing) (3) Footrest /safety guard (4) Swivel front wheel lock/brake (5) Safety harness... -
Page 3: Safety Precautions
1. Safety precautions Please read through the instruction manual before using the product. Type B is suitable for infants between 7months and 2 years of age. It is recommendable to limit the continuous use of the product within one hour. Do not put more baby than fixed number. -
Page 4: Parts List
2. Parts list shoulder belt seat reclining lever folding safety button lock device clip waist belt cup holder crotch buckle canopy release button canopy safety guard canopy holder seat release button folding folding lock safety lock footrest rear wheel release button swivel front wheel lock footrest adjustment button basket... -
Page 5: Assembly
3. Assembly 1. Rear wheel / rear wheel axle assembly Press the rear wheel release button in the middle of the rear wheel as in the picture 1 and connect to axle 2. Follow the same way for the other side of wheel. Insert coupled axis to frame as shown 3 until there is a clicking sound. - Page 6 3. Assembly 3. Seat assembly You can install the seat both forward-facing and rear-facing. Assemble it to the direction according to time and preference. As shown in the picture left, assemble the insertion area and seat connection area located both sides of the frame to fit exactly with each other.
-
Page 7: How To Operate
4. How to operate 1. Folding 一 This product can be folded for storage and movement purpose. Firstly, press the safety lock device (black color) ① located on the bottom part of the center of the stroller handle to arrow direction and at the same time press the folding button (gray color) ② by pressing to arrow direction and release it. - Page 8 4. How to operate Hold the right side folding knob and press the folding safety lock at left side of folding knob to arrow ⑤ direction, and pull it gently until the end. Pull it toward body until the end with two hands. Attention When folding or unfolding the stroller, keep the baby away from the stroller.
- Page 9 4. How to operate 2. Seat operation (reclining adjustment / seat separation for rear-facing) 1step : Seat mode 2step : Rest mode 3step : Sleep mode Seat reclining can be adjusted up to 170 ◦ degrees via 3 step. Desired angle can be adjusted by lifting up seat reclining lever ①...
- Page 10 4. How to operate 4. Front wheel direction setting / Break operation When road surface level is flat (fixed status is released) When road surface is not flat (fixed status is maintained) Break set Break release Use this stroller with the condition that direction of front wheel is fixed toward front side in order wheel is fixed and moves only forward.
-
Page 11: Cup Holder
- If securely mounted container or cup is not used, beverage can be spilled over or flow out. -Cup holder is designed and manufactured only for S9 stroller. In case it is used for other stroller, there can be damage or stroller can be destroyed. -
Page 12: Installation/Removal Of The Seat
6. Installation/Removal of the seat cover Picture 1 Picture 2 Seat cover can be separated. After detaching the canopy, separate the Velcro (back of the seat) in six locations marked in picture 1 from zipper and separate the buttock stand from the seat as shown in the picture 2. -
Page 13: Other Safety Instruction
7. Other safety instructions When installing canopy, there could be the case that both side angle of the connecting area are different as shown in picture 1. This can be the case which may happen during production and packaging stage and it is not the case to determine that product itself is defective. Picture 3 Picture 1 Picture 2... -
Page 14: Cleaning And Maintenance
8. Cleaning and Maintenance For safe and long term use of the product, it is important to check the condition of the fabric regularly. Cleaning the stroller Baby fabric detergent should be used in lukewarm water under 30C to wash fabrics. Do not use chemical detergent, oily detergent, or cleaning apparatus. -
Page 15: Warranty
9. Warranty PREBEBE, the official sales corporation of FEDORA distributes and sells authenticated products that have passed the stringent quality control. PREBEBE warrants the quality of FEDORA products as long as the product is purchased from its official dealers. Warranty service lasts for a year after receiving the product. However, some cost for our service... - Page 16 Customer center Official Sales Corporation for FEDORA 54-13, Unji-ro, Tanhyeon-myeon, Pa ju-si, Gyeonggi-do...
