Summary of Contents for GLOW UV400

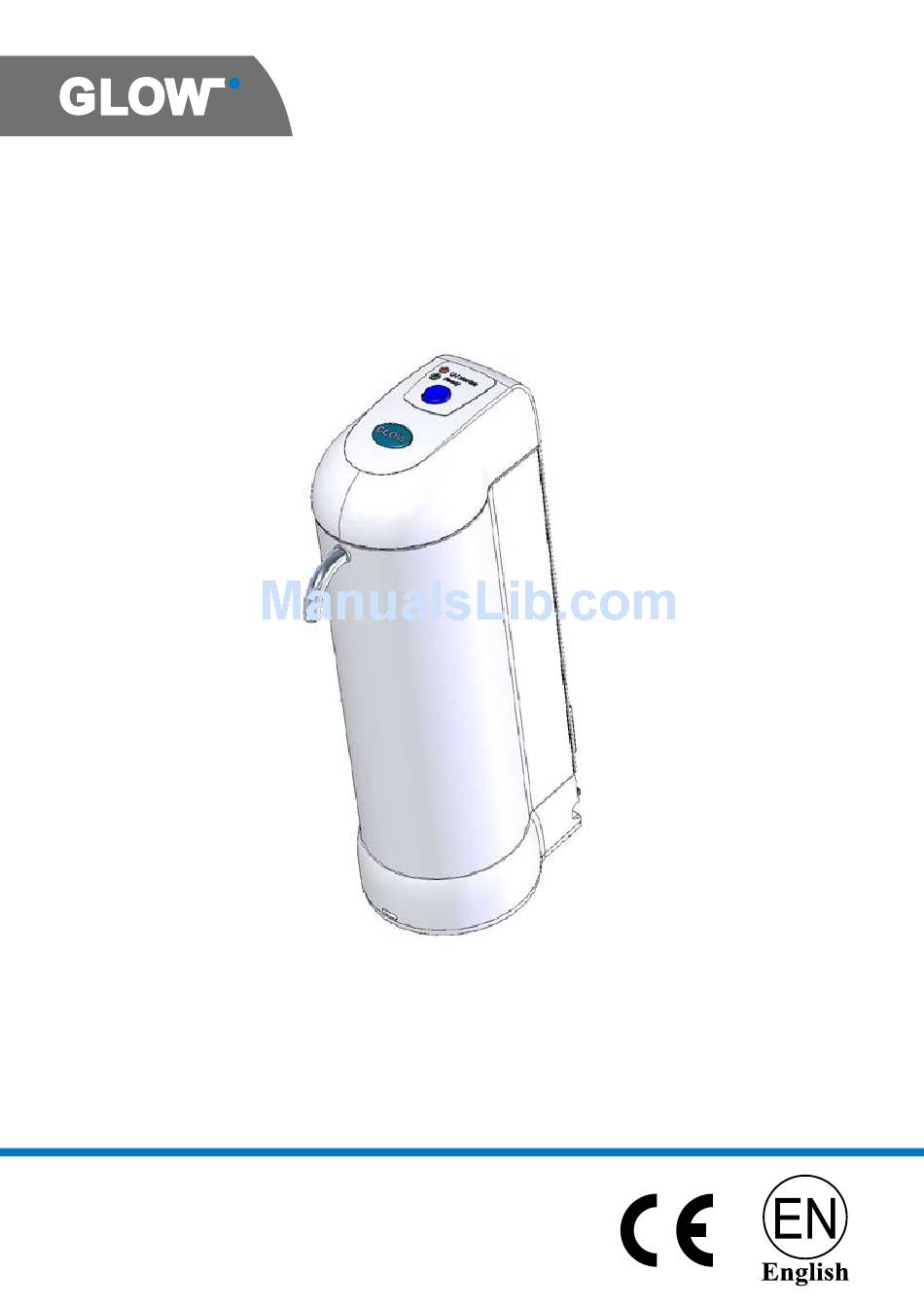

  • Page 1 USER MANUAL & INSTALLATION INSTRUCTIONS UV400...
  • Page 2 Introduction Congratulations on your new water purifier Make sure that the User Manual accompanies the UV400 if it is moved, resold or there is a change of owner so the GLOW UV400! user will always have access to the complete instructions and safety information.

  • Page 3: Control Panel

    Description of the UV400 The UV400 purifies water through filtration and dis- All features are operated with a one-touch button - infection with UV light. Blue Button (1) - guided by the Green Lamp (2) and Red Lamp (3) on the control panel.

  • Page 4: Table Of Contents

    Installation (Inlet Hose to faucet with Diverter Valve) Installation (Inlet Hose directly to water pipe) Installation (Connecting the Adapter 12 V/Flushing) How to use the UV400 Maintenance (Replacing the Carbon Block Filter) Maintenance (Replacing the UV Lamp) Maintenance (Replacing the Quartz Sleeve)
  • Page 5 C and 44 C) . To prevent mishaps and problems, read the “Safety If the water supply to the UV400 could be unfit for Information” in this chapter thoroughly and carefully follow the “Installation” instructions on pages 6 to 8.
  • Page 6 Installation Please read the “Safety Information” on page 5 before the installation of the UV400. The UV400 must always be installed for usage in the Your dealer can help you with the most suitable vertical upright position. It can be used as a table top installation and provide you with needed accessories.
  • Page 7 Alternative B: Installation to water pipe (fig. 7.4) fig. 7.4 Since the GLOW UV400 works with a Solenoid Valve, it can be directly installed to the water pipe. This is a more permanent installation and GLOW UV400’s automatic features can be enjoyed to its full capacity.
  • Page 8 Installation Connecting Adapter 12 V / Flushing Connecting the Adapter 12 V 1. Connect the DC Plug (10) to the UV400 (fig. 8.1). 2. Connect the Adapter 12 V (9) to the electrical socket in a dry location. fig. 8.1...

  • Page 9: How To Use The Uv400

    How to use the UV400 The UV400 is easy to use. Just press The Blue But- seconds before you can draw water. During this period ton (1). Thanks to modern and advanced electronics, the UV lamp is preheated for optimum disinfection. After...
  • Page 10 0.5 l (amount of water do other things while filling up your pitcher or container. Before using the Auto Filling function the UV400 should be in ready mode (UV Lamp should be lit). Auto Filling 1.

  • Page 11: Maintenance (Replacing The Carbon Block Filter)

    Bottom Cover (fig. 11.5). 9. Insert the Bottom Cover with the NEW attached Carbon Block Filter and tighten the Bottom Cover clockwise (fig. 11.6). 9. Flush the UV400 for 5 minutes before using it again. See “Flushing Procedure” on page 8. fig.11.6...

  • Page 12: Maintenance (Replacing The Uv Lamp)

    It is rare that the UV Lamp has to be replaced, since the fig.12.1 UV400 has a shut off timer. However, certain conditions might cause damage or break the UV Lamp. Hold the end of the UV Lamp (metal cap) when connecting and disconnecting the terminal(s).

  • Page 13: Maintenance (Replacing The Quartz Sleeve)

    Maintenance Replacing the Quartz Sleeve Before replacing the Quartz Sleeve, disconnect and fig.13.1 remove the UV lamp. Refer to fig. 12.3 in “Replacing the UV Lamp” on page 12. 1. Unscrew the Quartz Sleeve Holder (fig. 13.1). 2. Pull out the Old Quartz Sleeve together with the O-ring (fig.

  • Page 14: Maintenance (Cleaning The Quartz Sleeve)

    Maintenance Cleaning (Descaling) the Quartz Sleeve 1. Disconnect the DC plug (10). fig.14.1 2. Remove the UV Lamp (see page 12). Follow instructions 1 to 5. 3. Unscrew the Quartz Sleeve Holder (fig. 14.1). 4. Pull out the Quartz Sleeve together with the Silicon O-ring (fig.

  • Page 15: Maintenance (Cleaning The Coarse Filter)

    If the water supply contains a lot of sediments the Coarse fig.15.1 Filter can get saturated. Before Cleaning the Coarse filter 1. Disconnet the DC Plug (10) of the UV400. 2. Close the tap/valve of the water supply to the UV400. Cleaning the Coarse Filter fig.15.2...

  • Page 16: Regular Care

    Check weekly that all connections to the UV400 are properly sealed. 50 - 100 7 - 14 3 months • Always unplug the UV400 if it is not used for a long time. 100 - 140 14 - 20 1 month •...

  • Page 17: Trouble Shooting: Electrical

    Trouble Shooting: Electrical The UV400 has several built-in safety features indicated by the Red and Green Lamp on the Control Panel. Symptoms/Warnings Check UV light and disinfection assurance • If the UV Lamp is damaged, replace the UV Lamp •...

  • Page 18: Trouble Shooting: Water / Consumables

    Has the unit not been used for a long period? Run the Bad smelling water UV400 for at least 5 minutes. Dispose the water. • Let the UV400 run for about 10 minutes before initial use. • Is the Carbon Block Filter old? The activated carbon effect might have been depleted.

  • Page 19: Service / Technical Data

    Service / Technical Data Service Before calling service, take down notes of the problem of your UV400. For easy and faster support note down the product no. and serial no. For service and spare parts, please contact your authorized dealer.
  • Page 20 Dealer: The UV400 is developed and marketed by Glow AB. Glow AB Kopparbergsvägen 6 SE- 722 13 Sweden www.glowinternational.net Made in the E.U.
