RSI CRYFAX-100 User Manual

Fax data encryptor
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
Fax Data Encryptor
CRYFAX-100
User's Manual
Document No : D003011

Advertisement

loading
Need help?

Need help?

Do you have a question about the CRYFAX-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for RSI CRYFAX-100

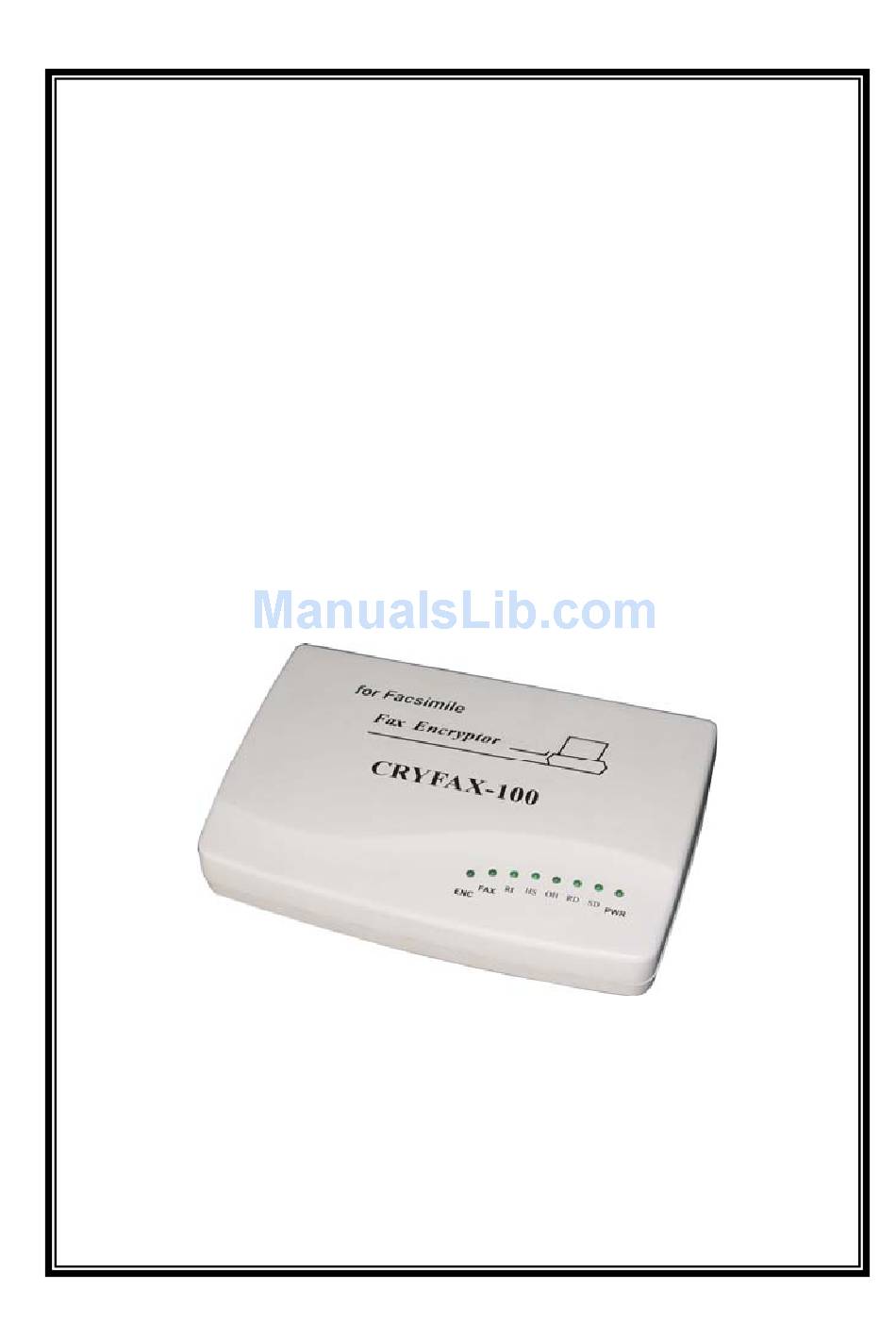

  • Page 1 Fax Data Encryptor CRYFAX-100 User’s Manual Document No : D003011...
  • Page 2 CRYFAX-100 User’s Manual CONTENTS 1. PHYSICAL AND FUNCTIONAL DESCRIPTION ……….…… 2. INSTALLATION ……………………………………………………. 5 3. OPERATION ………………………………………………………… 6 4. MAINTENANCE / TROUBLESHOOTING …………………… 7 5. SPECIFICATIONS ……………………………………………..……8...
  • Page 3 CRYFAX-100 User’s Manual 1. PHYSICAL AND FUNCTIONAL DESCRIPTION 1.1 Physical description ④ ③ ② ⑥ ⑦ ⑧ ⑨ Fig.1. Location of controls 1) [ENC] LED: Encryption Indicator 2) [FAX] LED: Fax data Indicator 3) [PWR] LED: Power Indicator 4) Other LEDs: Data control Indicators...

  • Page 4: Functional Description

    The RJ-11 standard jack is provided for connecting with a fax machine. 1.2.7 Line Jack (LINE) The RJ-11 standard jack is provided for connecting a phone line coming from a local exchange. Through this jack, the CRYFAX-100 is connected to the PSTN.
  • Page 5 Typically the unit can be located on the desk or table in office or at home. 1) Connect Output connecter of AC Adaptor to [AC 9V] socket of the CRYFAX-100. And connect AC Adaptor to power outlet on the wall, or AC cord.
  • Page 6 CRYFAX-100 User’s Manual To wall outlet Fig.2. Connections of CRYFAX-100 3. OPERATION Encrypted Fax Transmitting Insert a document to transmit, into Fax machine. Pick up the handset. And then check whether OH lights on. To dial number, follow as: (*) You should dial number, after one second from OH light on.
  • Page 7 Encrypted Fax Receiving Set fax machine into auto-receiving mode. Turn on the power switch of CRYFAX-100. When receiving Encrypted Fax Data: ENC indicator will light up and FAX indicator will blink. (It says that encrypted fax data is received.)

  • Page 8: Troubleshooting

    CRYFAX-100 User’s Manual Usual Fax Receiving When fax machine is set into auto-receiving mode and CRYFAX-100 is turned on or off, it will receive usual fax data automatically. 4. MAINTENANCE / TROUBLESHOOTING 4.1 Maintenance There is no special maintenance requirement except those for normal electronic equipment.

  • Page 9: Specifications

    CRYFAX-100 User’s Manual 5. SPECIFICATIONS Key Management Operating Environment • • Diffie-Hellman Key Exchange Operating temperature : 0°C to +40°C • Relative humidity : 3 to 90% Cryptography • Physical Encryption Algorithm: • 256-bit KES (OFB) or Size: 30x123x100mm(HxDxW) •...
