Summary of Contents for Koopor Plus KP200

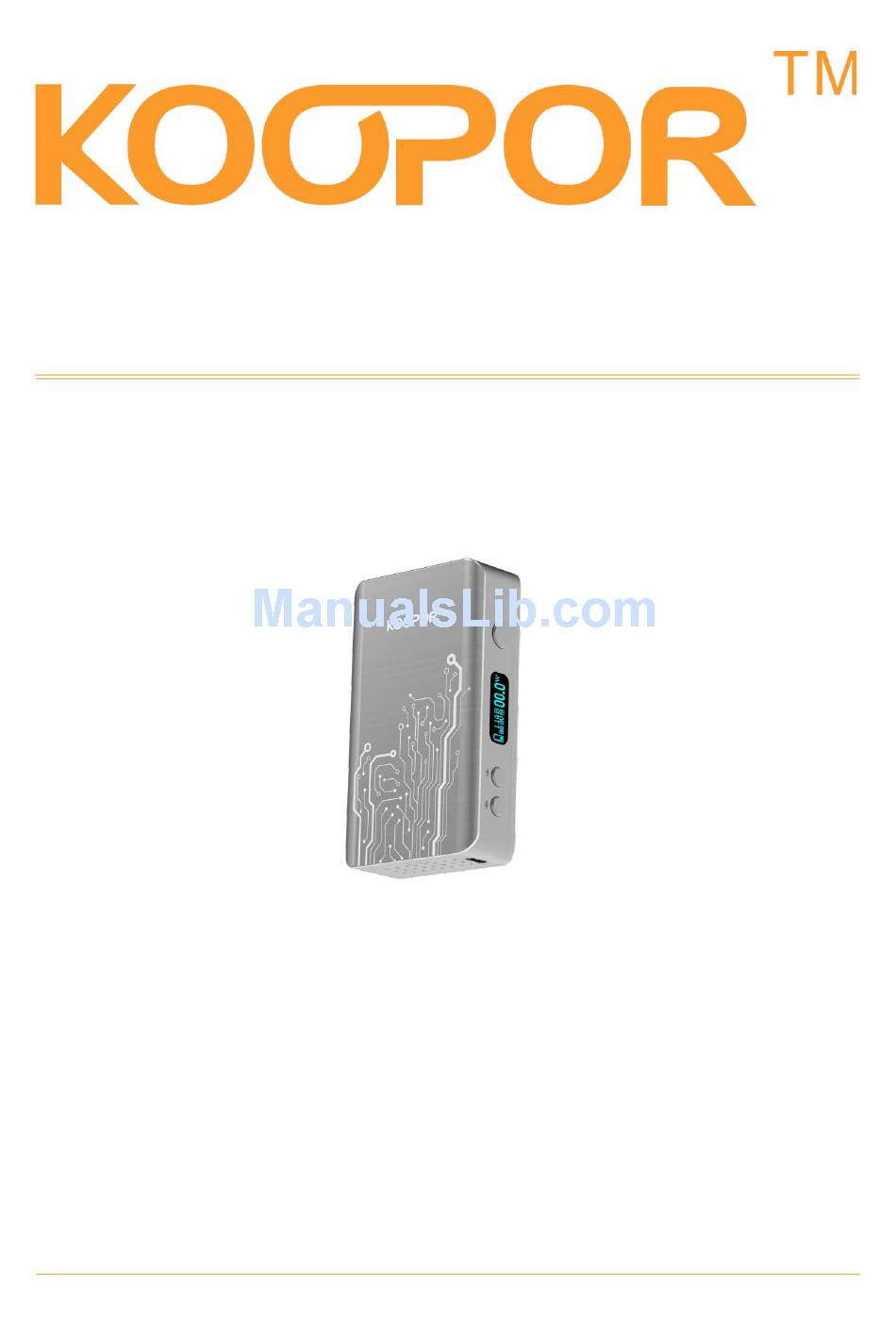

- Page 1 Plus - User Manual KP200 http://www.koopor.com/plus/ KOOPOR Plus...
- Page 2 Plus - User Manual KOOPOR KOOPOR Plus Packing List Verification Warranty User Guide 1. Schematic Diagram 2. Install Battery 3. Attach Atomizer 4. Operations 5. TC Mode 6. VW Mode 7. Memory Mode 8. Self-protection 9. Warnings Appendix 1. Product Specification Table Appendix 2.
- Page 3 Facebook timelines, in tweets. We’re listening and feeling surprise, revelry, disappointment and frustration among us, finally, we are full of hope again, like a family. Hope, yeah, we’d love to make better goods for this big family! KOOPOR is born for this big family. KOOPOR Plus...
-
Page 4: Packing List
Fill them into the input box on the webpage to verify. The result will come out after a few seconds. 3. If you have any question, please contact KOOPOR consultant via e-mail, phone or our website to get more help. -
Page 5: Schematic Diagram
2. Slide to open the back cover and place the batteries into the device according to the correct directions, and then close the battery cover. 3. Click KOOPOR Button 5 times quickly in 2 seconds to power on. The display screen successively shows "WELCOME", brand "KOOPOR PLUS”. Wait for 2 seconds for the activation. - Page 6 4. Operations 1. Power On: ① While the device is off power, fast click KOOPOR Button 5 times in 2s to start up. The screen successively shows "WELCOME", brand "KOOPOR PLUS”; ② From standby status, shortly press KOOPOR Button to active the system and light the display screen.
- Page 7 7. Menus & Prompts: After startup, fast press the KOOPOR Button 3 times in 2s, then you will go to the operation menu. And then, long-press on the KOOPOR Button to confirm; UP/DOWN Button could do menu moves. 5. TC Mode TC Mode is available when KOOPOR Plus works with a TC type atomizer.
-
Page 8: Memory Mode
3. Lock the UP / DOWN Button by pressing the UP+ DOWN Button simultaneously, to avoid accidentally pressing. Again, simultaneously press to unlock UP / DOWN Button. 7. Memory Mode KOOPOR Plus Memory Mode is designed to save your time and effort. http://www.koopor.com/plus/ KOOPOR Plus... - Page 9 KOOPOR Button to enter M01-M20, and adjust default wattage among them by pressing the UP/DOWN Button. Their wattages are adjustable from 6W to 200W. After the above steps are completed, press KOOPOR Button or wait for 5 seconds to save the wattage you prefer.
-
Page 10: Appendix 1. Product Specification Table
Appendix 1. Product Specification Table Items Details Basic Name KOOPOR Plus Model KP200 Appearance & Material & Technics Stainless steel and zinc alloy Size Weight (g) ~ 245g Height(mm) x Width(mm) x Depth(mm) 100mm x 59mm x 24.5mm Atomizer Head Threading... -
Page 11: Appendix 2. Key Function Table
Increase the wattage （VW Mode/ Memory Mode） Reduce the temperature （TC Mode） DOWN Reduce the wattage （VW Mode/ Memory Mode） KOOPOR + UP Change Working Mode(TC / VW/ Memory) Turn display stealth mode ON KOOPOR + DOWN Change TC Effect (Hard/Normal/Soft/Max/Min ) -
Page 12: Appendix 3. Screen Prompts Table
Details Power on successfully Power off successfully Fast click 5 times KOOPOR button to unlock the screen Fast click 5 times KOOPOR button to lock the screen Battery power isn’t enough, change batteries Battery voltage is higher than need, change batteries Atomizer hasn’t been detected, attach an atomizer... - Page 13 Atomizer coil is heating without liquid under TC Mode, fill juice System is overheating, stop working Mode Settings Vape Data Basic Function Settings Stealth Mode Waiting Time Screen Contrast Screen Rotation Adjust Initial Resistance Under TC Mode Power ON/OFF http://www.koopor.com/plus/ KOOPOR Plus...
- Page 14 Exit Menu http://www.koopor.com/plus/ KOOPOR Plus...
