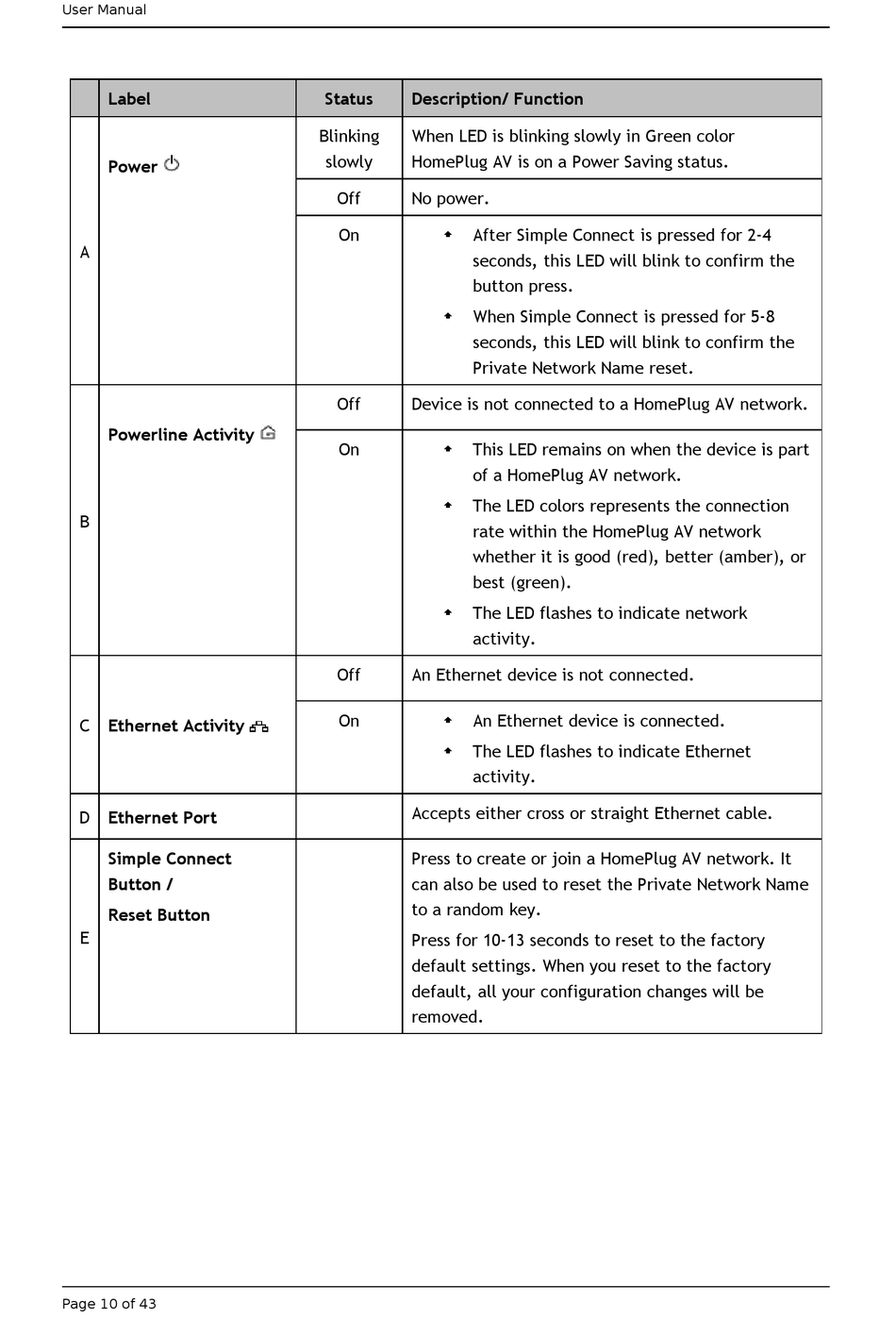

Solwise HOMEPLUG AV Mini User Manual page 10

User Manual
Label
Power
A
Powerline Activity
B
C Ethernet Activity
D Ethernet Port
Simple Connect
Button /
Reset Button
E
Page 10 of 43
Status Description/ Function
Blinking When LED is blinking slowly in Green color
slowly HomePlug AV is on a Power Saving status.
Off No power.
On  After Simple Connect is pressed for 2-4
seconds, this LED will blink to confirm the
button press.
 When Simple Connect is pressed for 5-8
seconds, this LED will blink to confirm the
Private Network Name reset.
Off Device is not connected to a HomePlug AV network.
On  This LED remains on when the device is part
of a HomePlug AV network.
 The LED colors represents the connection
rate within the HomePlug AV network
whether it is good (red), better (amber), or
best (green).
 The LED flashes to indicate network
activity.
Off An Ethernet device is not connected.
On  An Ethernet device is connected.
 The LED flashes to indicate Ethernet
activity.
Accepts either cross or straight Ethernet cable.
Press to create or join a HomePlug AV network. It
can also be used to reset the Private Network Name
to a random key.
Press for 10-13 seconds to reset to the factory
default settings. When you reset to the factory
default, all your configuration changes will be
removed.
